Description
This is a functional remix of the original Tiny e-Lab, upgraded to include battery over-discharge protection, integrated voltage regulation, and enhanced HEPA fume extraction.
Modifications made from the original project

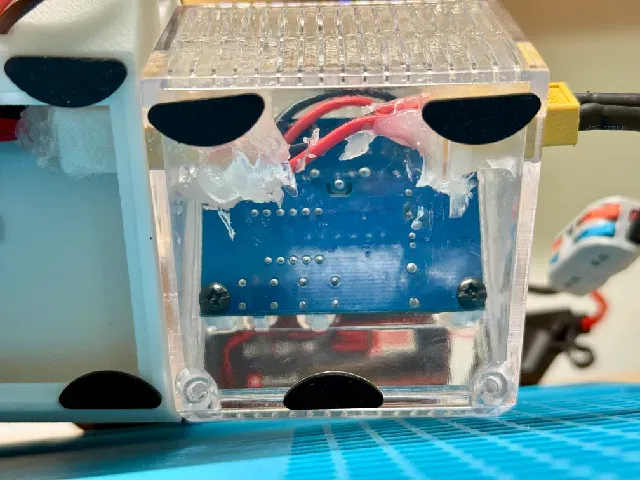

- Over-Discharge Protection Base: Integrated a mounting area for an XH-M609 voltage cutoff module to protect any battery power sources from draining completely.

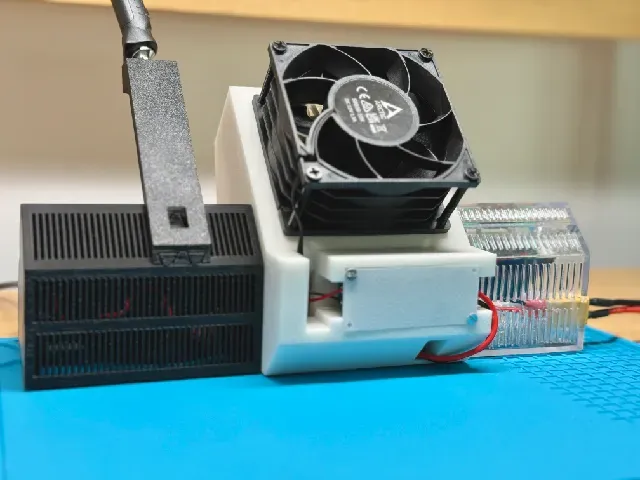

- Upgraded Fume Extractor: Deepened the original 80mm fan enclosure to fit both a HEPA filter and a carbon filter simultaneously. Added a slot on the back of the module to fit an XL4015 buck converter.
- Variable Speed Control: Replaced the original 2-pin switch cutout with a mounting hole for an RPM control knob.
- Heat-Resistant Iron Holder: Modified the iron rest to fit a standard M5 metal hex nut to safely catch the hot soldering tip. Added ventilation holes to the station base to improve airflow.
- Unchanged Modularity: Retains the original XT60 snap-together design so the units lock together in series.
Required Hardware
- XH-M609 Voltage Cutoff Module (affiliate): https://s.click.aliexpress.com/e/_c3ftjF33
- XL4015 Step-Down Module (affiliate): https://s.click.aliexpress.com/e/_c4FDtLRx
- XT60 Connectors (affiliate): https://s.click.aliexpress.com/e/_c3E7JCaN
- Arctic S8038-10K Fan (80mm) (non-affiliate): https://amzn.eu/d/08cmyXbr
- RPM Control Knob (affiliate): https://s.click.aliexpress.com/e/_c3Y4AkBR
- HEPA Filter (affiliate): https://s.click.aliexpress.com/e/_c3bU2JMz
- Carbon Filter Sheets (affiliate): https://s.click.aliexpress.com/e/_c44oTiXn
- 14 AWG Silicone Wire (affiliate): https://s.click.aliexpress.com/e/_c4qnlkWV
- M5 Hex Nut (affiliate): https://s.click.aliexpress.com/e/_c3ndxb7b
- 2 Pin SPST 12 Rocker Switch (affiliate): https://s.click.aliexpress.com/e/_c3hGC6IH
Tools Needed
- Soldering Iron
- Hot Glue
- Wire Strippers
- Multimeter
- Precision Screwdriver
Build Video
Watch the high-speed build log and assembly overview on YouTube ( sponsored by PCBWay ):
