Wanhao I3 Duplicator V2 Raspberry Pi Case

Wanhao I3 Duplicator Raspberry Pi 2 Case

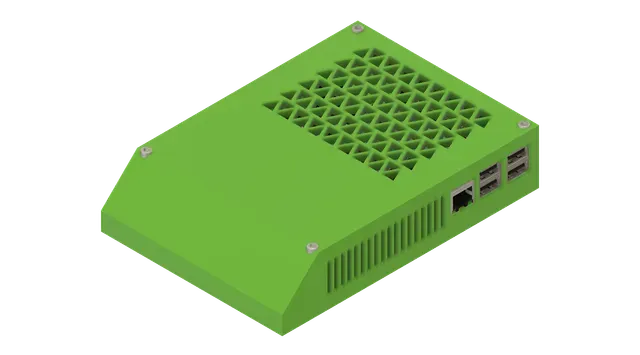

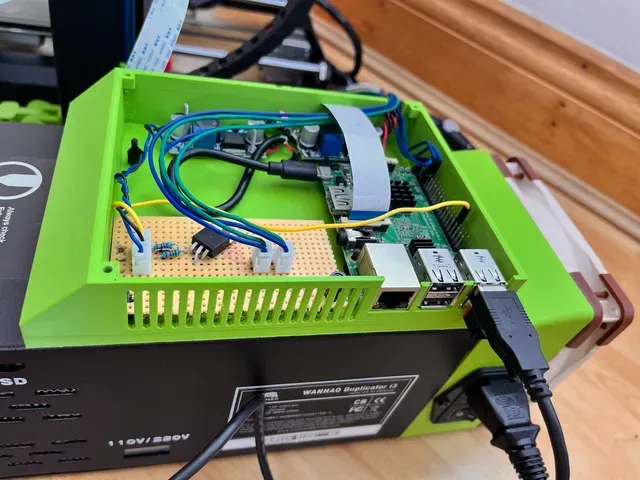

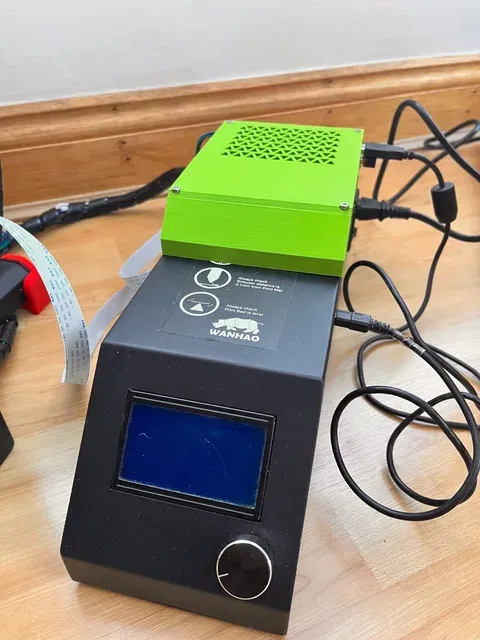

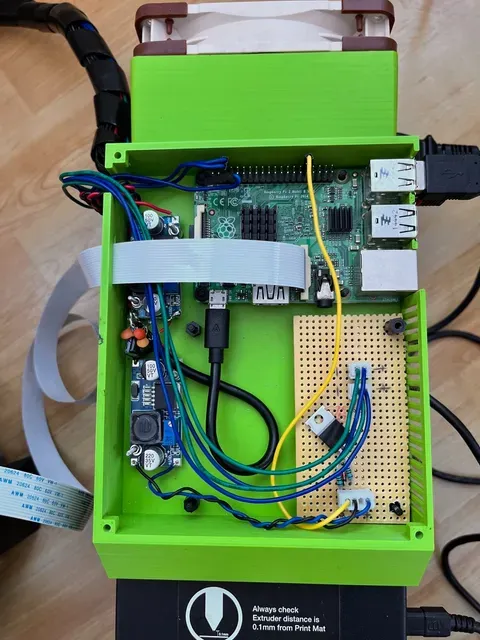

When adding Octoprint to the Wanhao Duplicator I3, I needed to develop a case for the Raspberry Pi 2 so that it could be mounted to the printer. This case encloses both a Raspberry Pi 2 and two Switch Mode Power Supplies. The two modules serve two purposes—one to power the Raspberry Pi and another to control the LEDs to light up the print bed.

Useful Blogs for Learning Electronics:

As far as powering the Raspberry Pi and controlling the LEDs, the following blogs will be helpful for finding useful information:

- Powering Raspberry Pi - Controlling LEDs with a Raspberry Pi and MOSFETs Equipment List

- 8 x M3x6mm Bolts - 8 x M3(6mm+6mm) Female to Male Standoffs - 4 x M3(6mm) Female to Female Standoffs - 4 x M3x8mm Bolts - 4 x M2X16mm Bolts - 4 x M2 Nuts - Raspberry Pi 3 - 2 x LM2596 Breakout Boards Useful Links

- Octoprint - Octoprint Enclosure Plugin - Raspberry Pi Foundation - Wanhao i3 Duplicator V2 - LM2596 Breakout Boards - Nylon Nuts and Bolts - Metal Nuts and Bolts

Print Settings

Printer Brand:

Prusa

Printer

Prusa I3 Mk3s

Rafts:

No

Supports:

No

Resolution:

0.4mm

Infill:

10%

Filament

Prima Value PLA Green

Technical Drawing

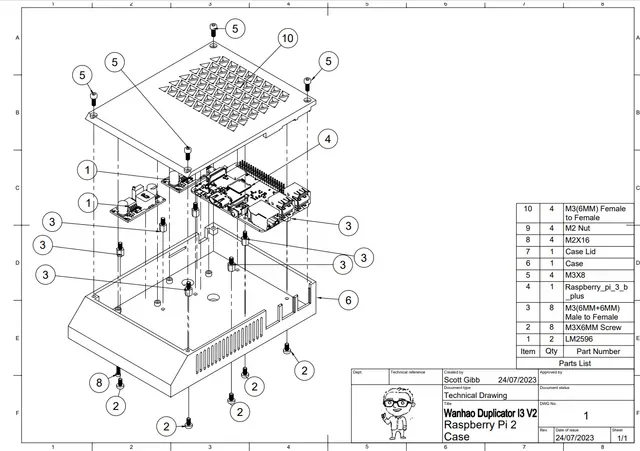

Exploded View
