Canister Opening Wrench 1L - 60L (DIN 45 / DIN 51 / DIN 61, Ø 48 - 58 - 65 mm)
Model details
- Platform
Printables
- Price
- Free
- License
- CC-BY-NC-SA
- Non-commercial use only, with credit; share remixes under the same license.
- Formats
- 3MFSTEPSTLGCODE
- 62 Likes
- 520 Downloads
- 7 Makes
- 11 Comments
- 2 058 Views
Description

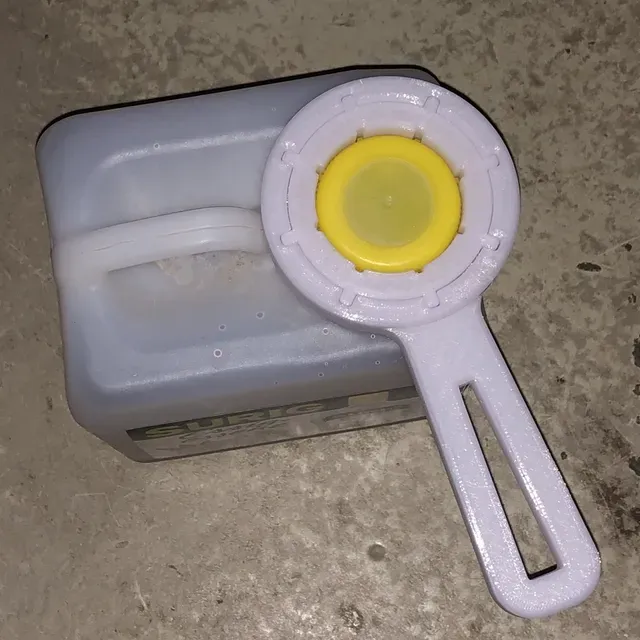

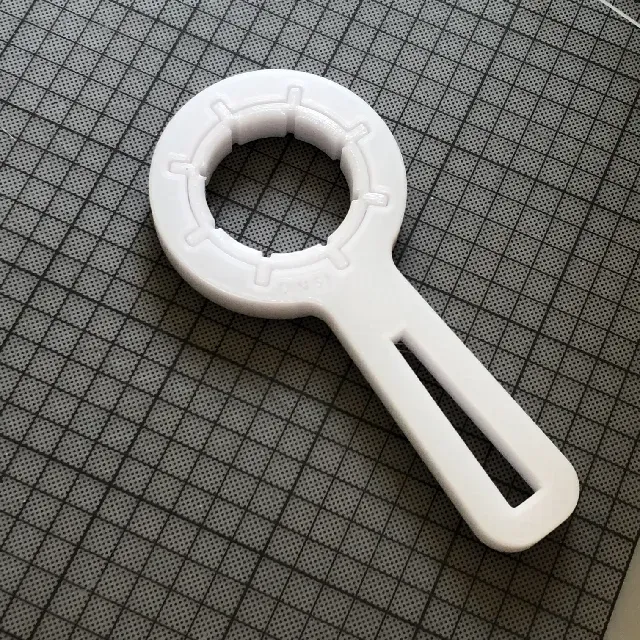

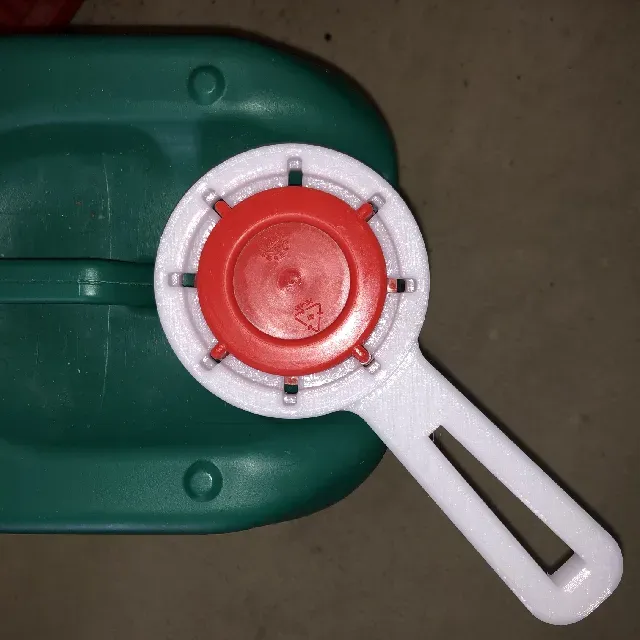

Simple opening and closing spanner for standard 4- or 8-ribbed lids of canisters between 1L-60L volume (DIN 45 thread, Ø48.2mm | DIN 51 thread, Ø58mm | DIN 61 thread, Ø65mm). Turn tool around or use the included insert depending on the required size.

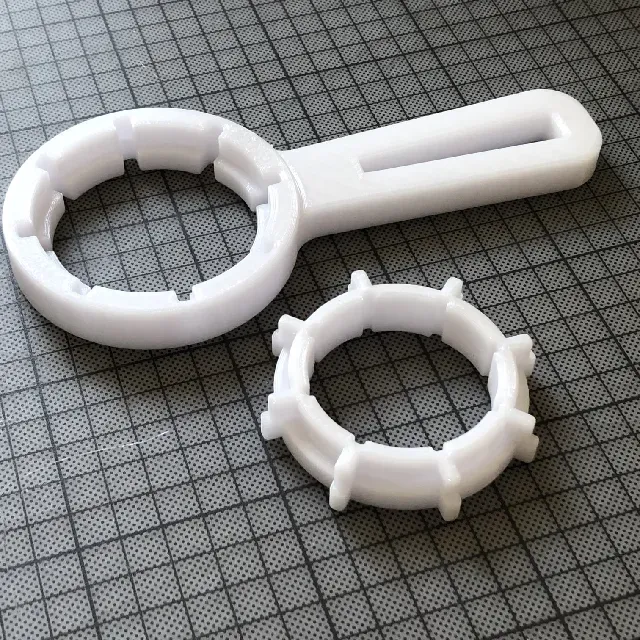

- Ver.1 - was only for 5-10L(DIN 51) canisters - Ver.2 - supports DIN 51 as well as larger canisters from 20-60L(DIN 61), grip has been made slightly sturdier - Ver.3 (28/4/2022) - increased thickness on DIN 51 side for improved rigidity. Added an optional DIN 45 insert for opening 1L-2L containers. Also added labels and a multicolor G-code for manual filament swapping in the first and last layers. These lids are used on many containers, e.g. cleaning detergent or fertilisers.

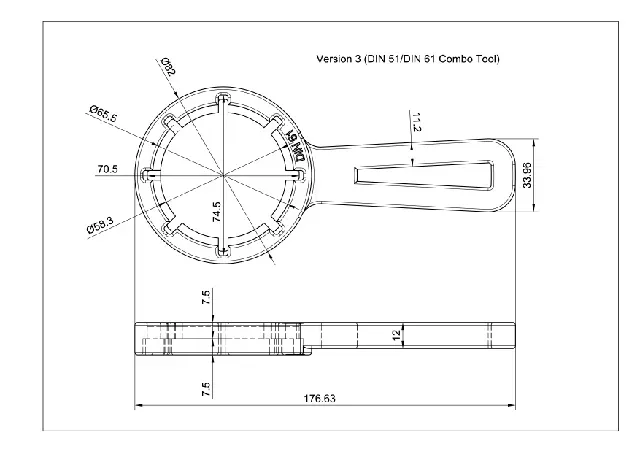

STEP-file included for adjustment.
Please leave a make and review if you enjoy this model! Thanks
What worked for me:
Material: PET-G Layer Height: 0.3mm Infill: ≥25%, grid Perimeters: ≥3 Top/Bottom Layers: 0
