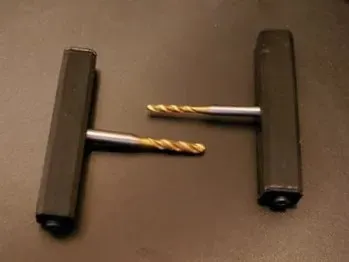

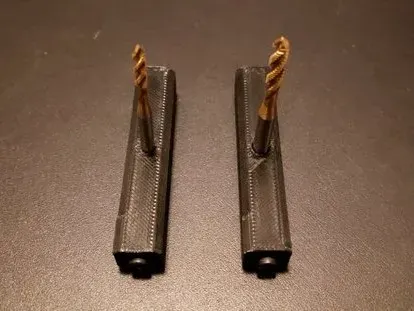

Tap Wrench / Tap Handle (M3 / M4)

Basic tap handle with hollowed out ends to be able to use multiple size M3 screws.

Required Hardware:

- 2 x 22mm+ M3 screw. Print Specs:

Walls / Perimeters 4

Infill: 30% Rectilinear

Supports: None

Print Orientation: Horizontal

Instructions:

- Refer to model for exact fitment before printing, My sizing was made to be about 1.2x actual dimensions to allow for fitment and expansion. - Print models horizontally, the strength of stacked layers are normally a weak point to 3d prints. - Tap M3 screw holes on sides. - Insert tap to ensure fit. - Screw in your M3 screws until you see them both meeting in the middle of the tap chamber - Loosen both M3 screw equally until your tap seats nicely. - Tighten both M3 screws equally in small increments until your tap is secure, careful over-tightening. Inspired by : Lightweight Tap Handles by walter @ Thingiverse.
