3D model · Printables

Sayha - X FPV Quadcopter 4" 5" 6"

Platform: Printables
Price: Free
License: CC-BY-SA; Print, modify and sell with credit; share remixes under the same license.
Formats: STL

44 Likes
251 Downloads
1 Makes
1 Comments
2 108 Views

Author:Diogorsergio

Published 2022-04-24

Download on Printables

Description

UPDATE February 05, 2017

Minor fixes in the STL's.

UPDATE November 12, 2016

All frames have been update with improved propeller clearances. (5mm Increase).

Enjoy!

https://www.youtube.com/watch?v=zlCR2uV0GjE (Video from deDrones) Thanks guys! https://www.youtube.com/watch?v=mpj4sKzhRf4 (Drop Test!)

Sayha - X FPV Race Frame

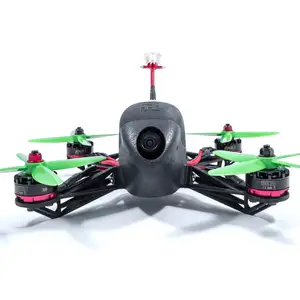

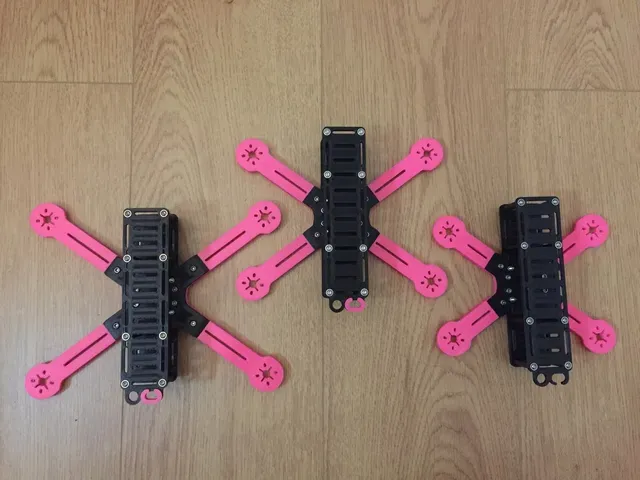

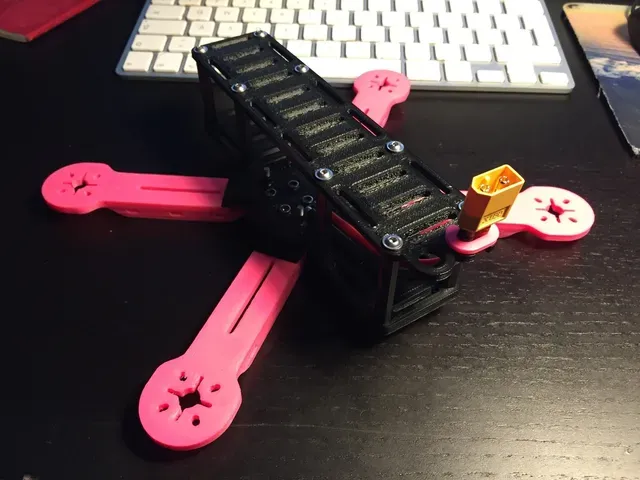

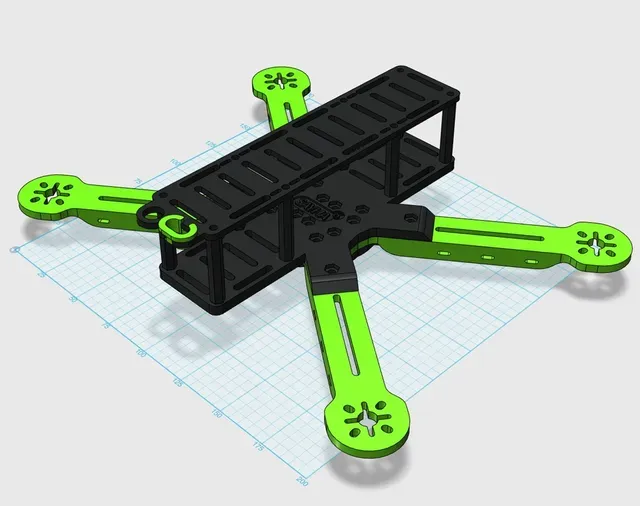

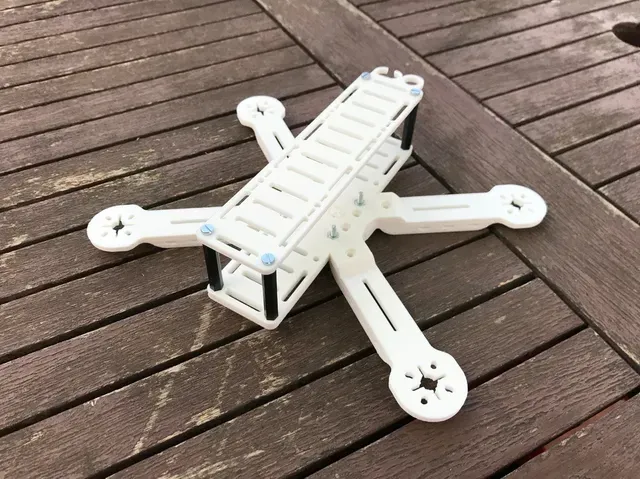

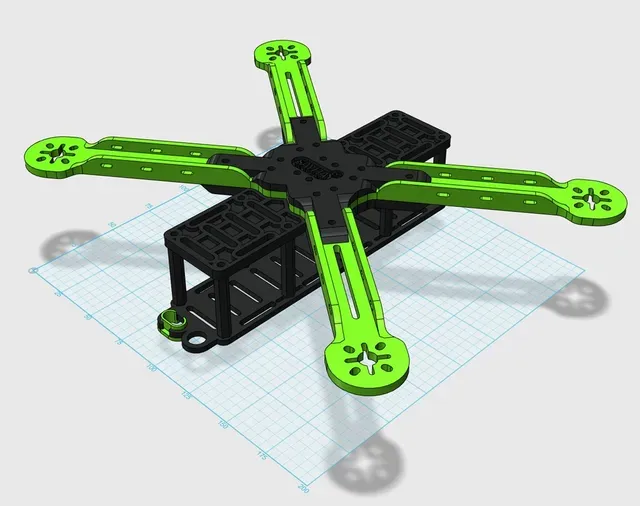

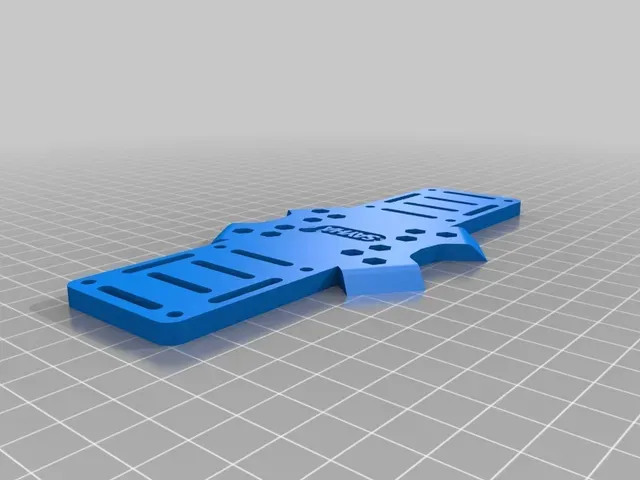

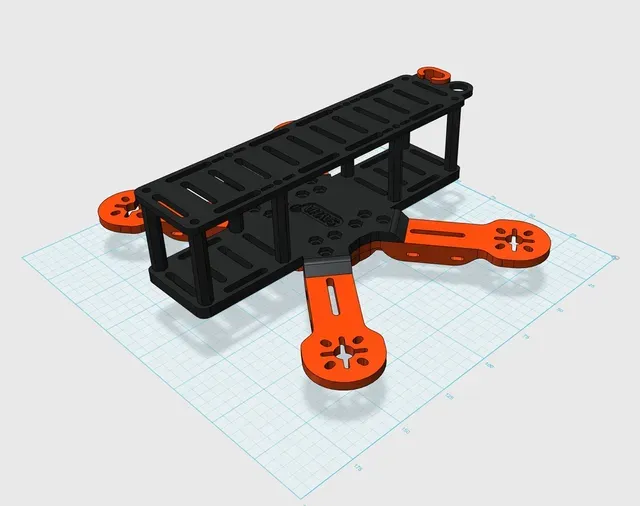

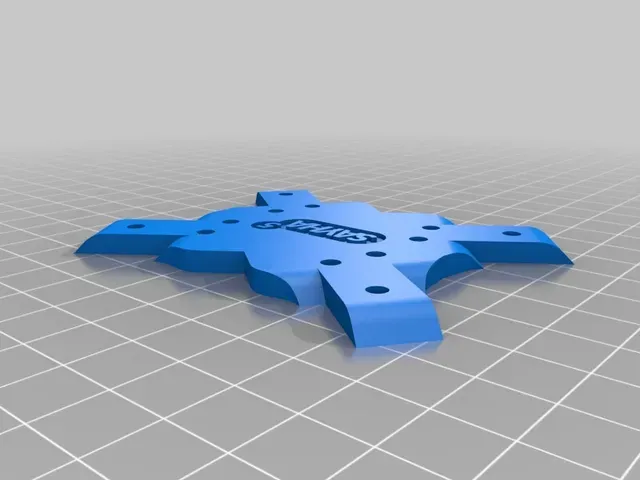

Quadcopter frame based on the Impulse RC Alien and Lumenier QAV-R with center X removable arms. Its available in various sizes supporting 4", 5" and 6" propellers. Its light and super stiff if printed in ABS 100% infill.

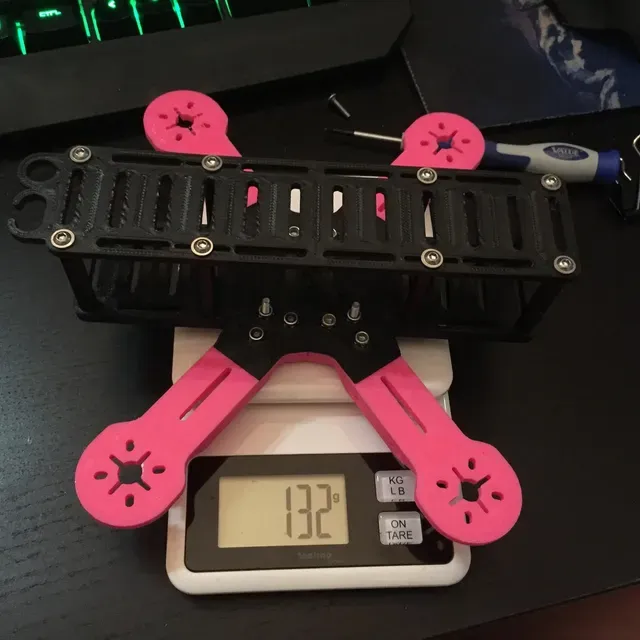

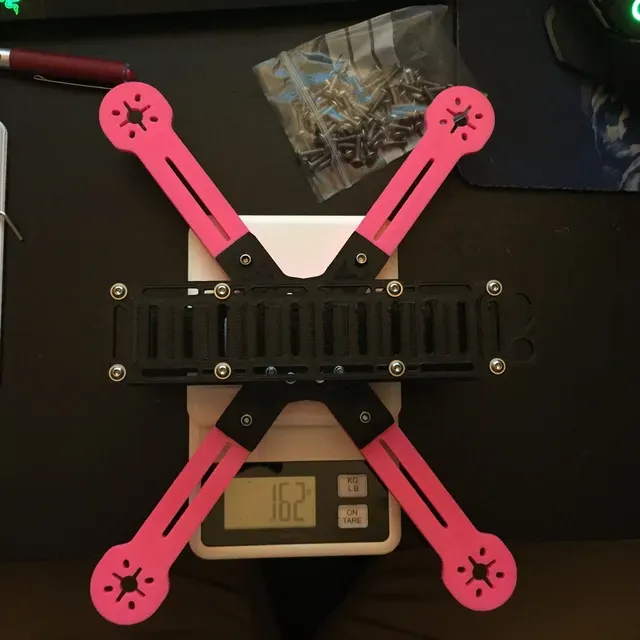

Included are all the .STL files for all the models. The frame is quite light and stiff. I threw the frame over and over against a wall and from a 5th floor balcony and it survived perfectly.

If you end up building one.. let me know your feedback!

Cheers!

Print Settings

Printer Brand:

RepRap

Printer:

Wanhao Duplicator i3

Resolution:

0.2mm

Infill:

100%

Notes:

ABS recomended.

Instructions

The hardware required to assemble the frame is:

Sayha 4" / 5" (for either)

4x - M3x20mm (4 arm screws that will come up of the bottom plate, serve for the flight controller mount)

24x - M3x12mm

12x - M3 Nyloc Nuts

8x - 35mm Spacers

Sayha 6"

4x - M3x20mm

28x - M3x12mm (4 extra for the arms)

12x - M3 Nyloc Nuts

8x - 35mm Spacers

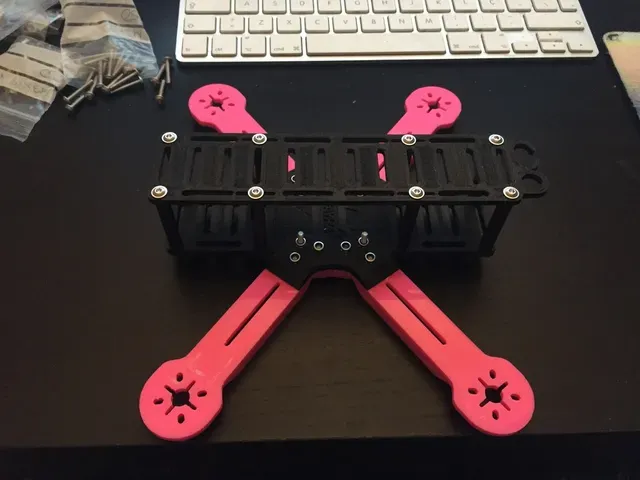

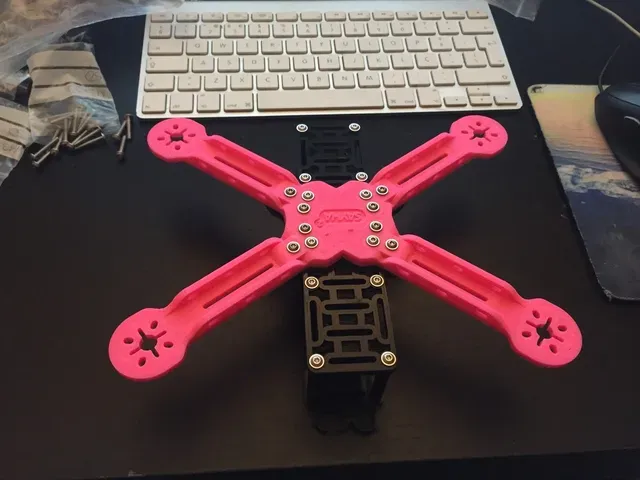

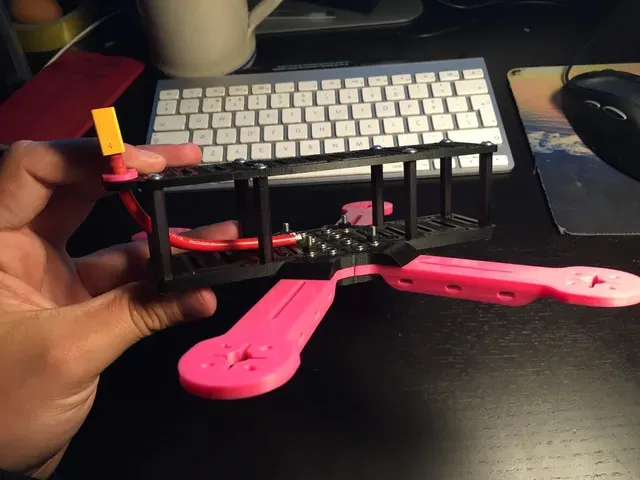

The assembly should be straight forward, but have a look at the pictures if you have questions, or post something in here and I'll try to answer it the best I can.

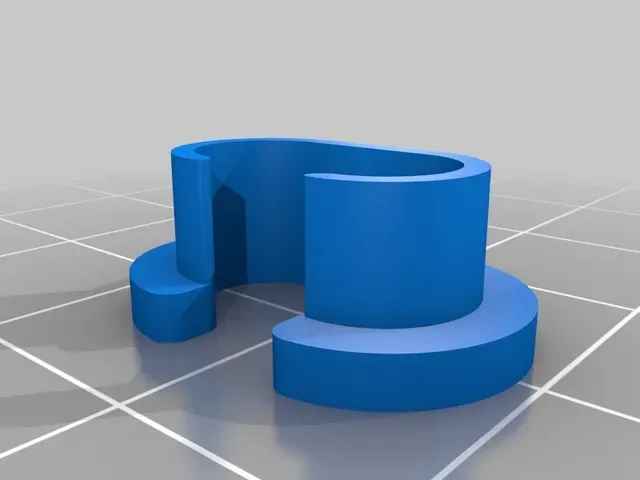

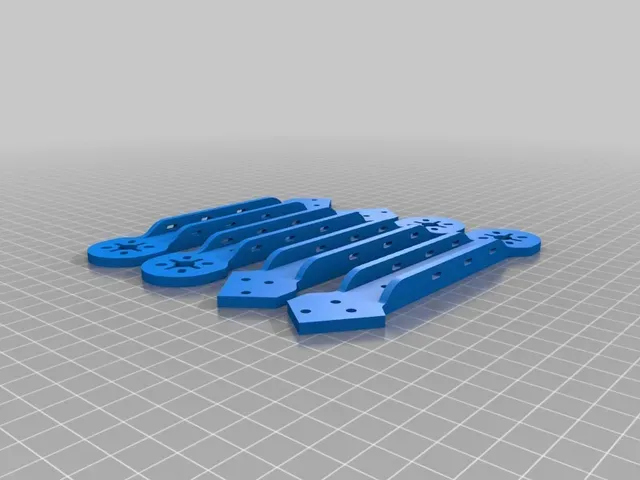

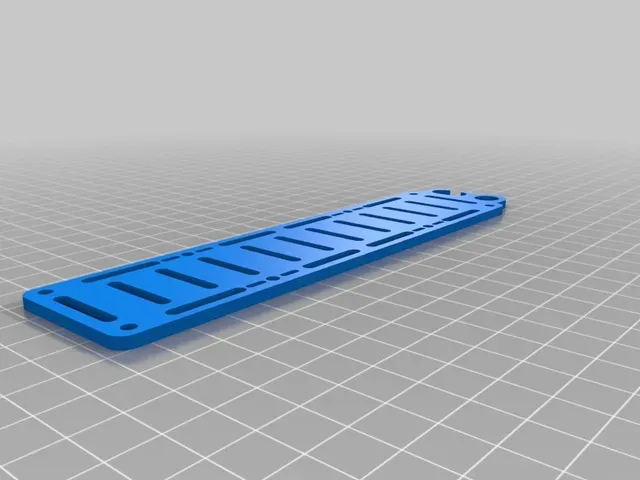

Thing Files

STLs / 123dx (File Structure)

This is the naming convention used in the files:

X = Frame Size (4,5,6)

Complete Frame:
