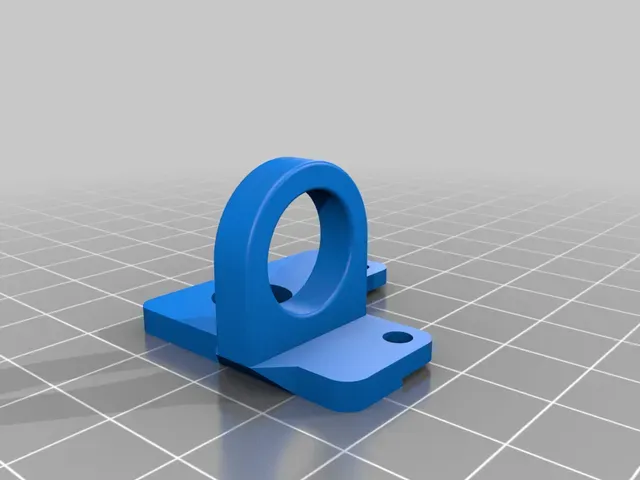

Creality Ender 3/Pro Static ABL Probe Mount by ideagen3D — Image 2 of 3

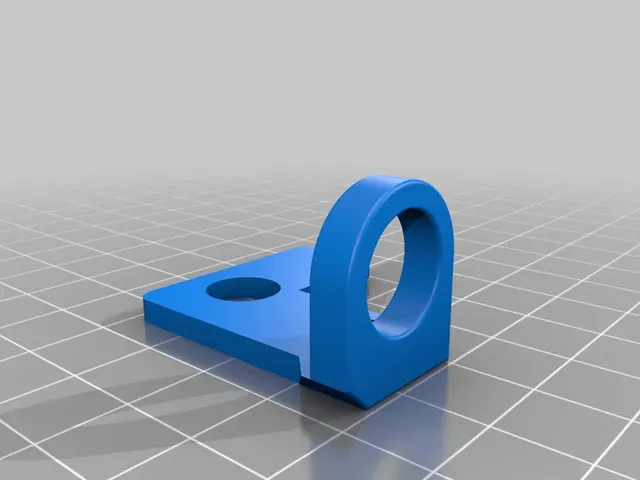

Creality Ender 3/Pro Static ABL Probe Mount by ideagen3D — Image 3 of 3
3D model · Printables

Creality Ender 3/Pro Static ABL Probe Mount by ideagen3D

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STL
  • 2 Likes
  • 61 Downloads
  • 0 Makes
  • 0 Comments
  • 422 Views

Author:dzxxx2331s

Published

Download on Printables

Description

Update: Added a newer version to mount the probe lower. Probe wasn't long enough in the default version to function. Most users should use this new ("Low") version.

Mount for 8 and 12 mm diameter static ABL probes (capacitive & inductive) for the Creality Ender 3, Pro, and any other "Gen 1" Ender variants or clones. Re-uses OEM mounting points and bolts.

If your probes came with washers, those may not fit, just exclude them from installation.

Install at 3mm above the nozzle initially, fine tune after installation complete (including firmware).

For Ender 3 V2, click here .

Offset not validated, should be in this ballpark. Please let me know if you find the exact offsets.

define NOZZLE_TO_PROBE_OFFSET { -47, 0, 0 }

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

Rafts:

No

Supports: Yes

Resolution:

0.16

Infill: 25%

Filament: ideagen3D PETG Black

Category: 3D Printer Accessories
