Wall-Mount Dupont Cable Organizer & Comb Set (Modular Remix)

🔌 Dupont Cable Organizer & Comb Set (Modular Remix)

A practical, quick-and-dirty cable management set for Dupont jumper wires and prototyping leads on your workbench.

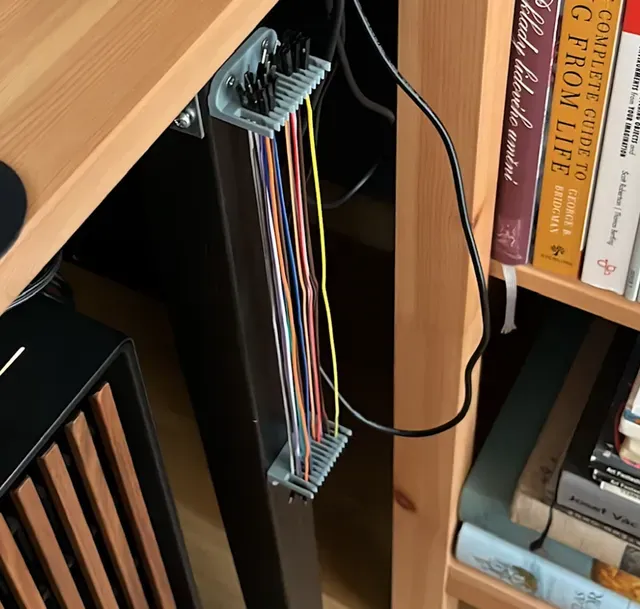

Nothing overly engineered here—just a simple, functional tool whipped up to solve cable chaos on the fly. By combining different sizes, you can organize short or long wires anywhere around your desk, wall, or furniture (as seen in the photos attached to desk legs).

Base Model & Credit:

This is a remix based on the great design by @BlitzCityDIY_40426 - https://www.printables.com/model/344434-145mm-dupont-cable-organizer . Huge thanks!

🧩 Included Models:

Long Comb: Ideal as a main base for long cables or multi-pin ribbons. Short Comb: Great for shorter leads or as a secondary anchor point. Short Comb (Small Screw Holes): Same compact comb, but with smaller mounting holes designed specifically for small wood screws (ideal for attaching to furniture, desk legs, or shelf sides without splitting the wood (Drill the hole to the wood first! X) ).

🖨 Recommended Print Settings:

Orientation: Print FLAT on the bed (comb teeth pointing sideways/upwards, NOT sticking straight up into the air). No supports needed this way. Material: PETG (or PLA) Layer Height: 0.20 mm or 0.30 mm Infill: 5–10% (sufficient, it doesn't take much load) Supports / Helpers: None needed Print Time: ~30 mins for short variants, under 1 hour for the long rack.
