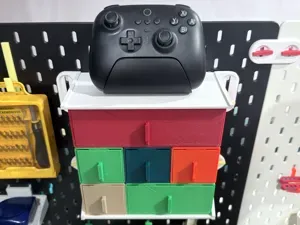

SkadiStack | Modular Stacking Drawer System for SKADIS

Important: Bed size must be around or at least 250x250mm wide to fit the base and terminal platforms.

310826 - added 3U version for bigger storage option

How it works

- Base platform hooks onto the Skådis pegboard using T-clips and holds a stack up to 3U wide. Each stack can be configured as 3 1U drawers , or a 1U + 2U drawers combination to suit whatever you're storing: small hardware up top, bulkier bits below. Each drawer unit (1U) is 55 x 55 x 83mm in volume.

- Example shown with 3 stacks , you can go more if you have the pegboard/materials/needs

- Stacking drawer modules self-align as you build. The top face of each unit has two locating grooves , and the underside of the unit above has matching tabs that drop straight in. This keeps the stack square and stops modules shifting while you open and close drawers.

- Terminal (top) platform locks the stack together from above and adds a flat shelf/tray surface on top, handy for tools, parts trays, or whatever you reach for most.

What's included

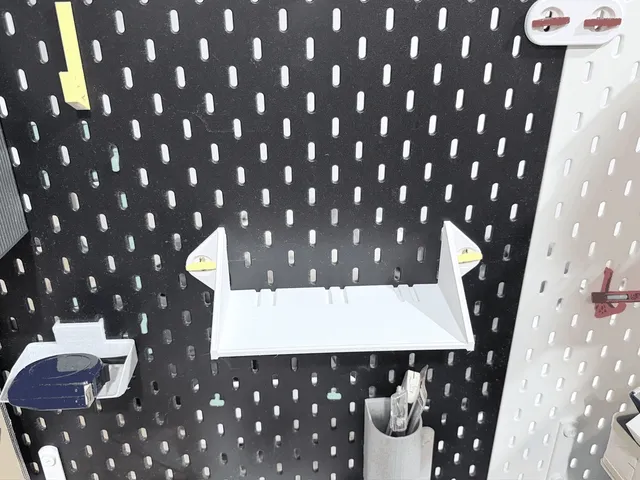

- Base platform (Skådis-mount using T-clip) <- starts first

- 1U drawer module

- 2U drawer module

- Terminal / top platform (Skådis-mount using T-clip) <- ends here

- T-clips can be downloaded here or get from the original T-clips model ( https://www.printables.com/model/256896-skadis-t-clip-system)
