Davinci 1.0 E3D V6 Carriage With BL-Touch and Layer Cooling!

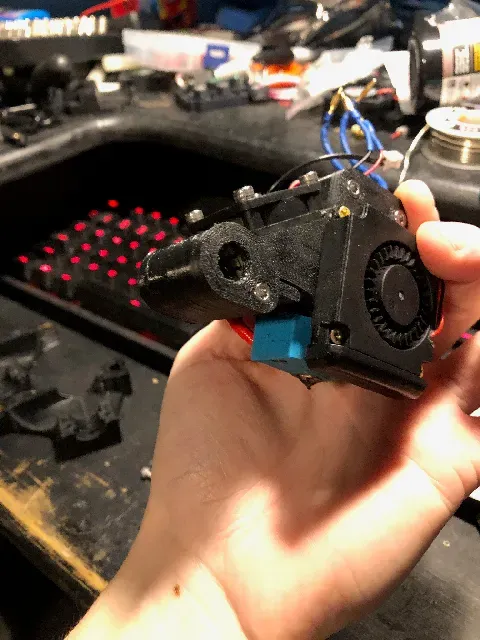

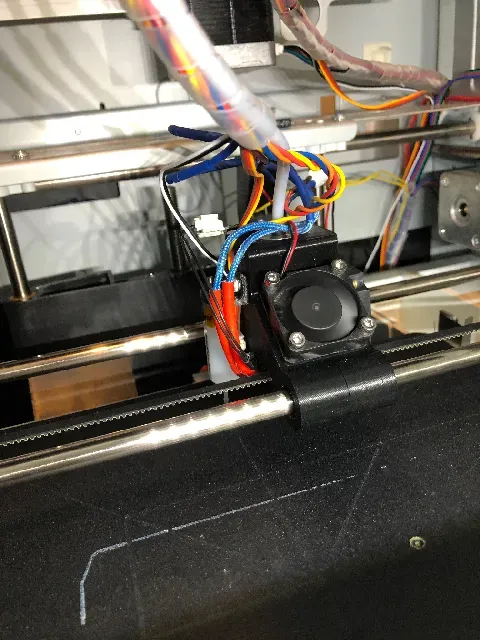

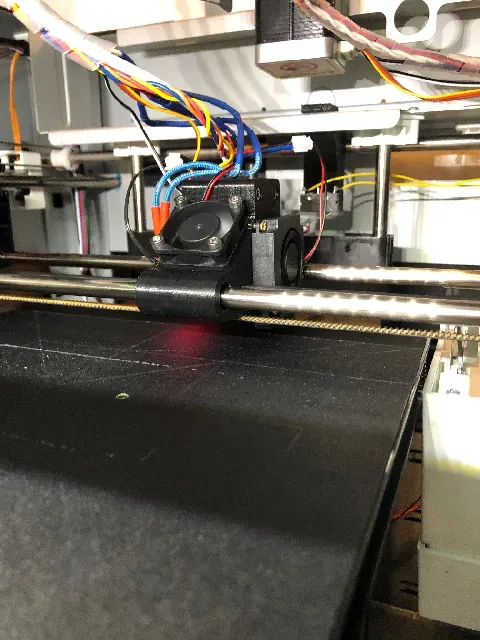

I wasn't happy with the lack of features available from most carriage designs here designed by other people so I made my own. This carriage keeps the nozzle in the original location enabling you to use the nozzle wiper things that come on the Davinci 1.0. This carriage also has mounting points for a 40mm Layer cooling blower style fan. I used the following because it comes with a 90-degree adapter that shoots the air into the perfect spot to cool your prints. Amazon - https://www.amazon.com/gp/product/B07L2XBYL4/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

the included "BL Touch Mount" enables you to easily mount a bl touch to your printer! Please be aware you need to upgrade your motherboard to support this feature Amazon - https://www.amazon.com/gp/product/B076PQG1FF/ref=ppx_yo_dt_b_asin_title_o04_s01?ie=UTF8&psc=1

This carriage also upgrades the linear bearings to a far superior and cheap option. Amazon - https://www.amazon.com/gp/product/B06XPRCMJS/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1

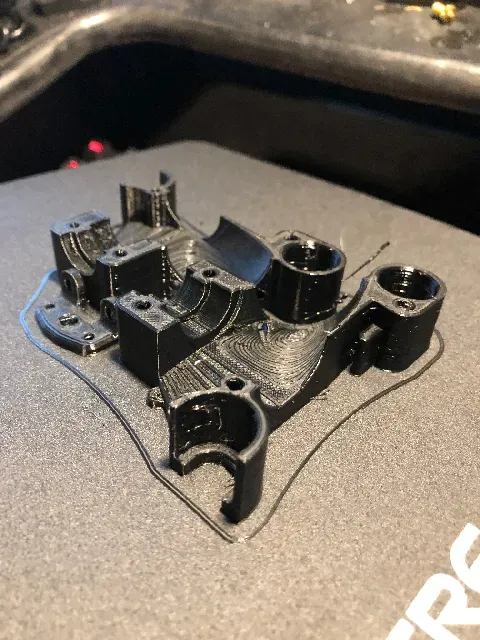

All this while being more compact than the original "Drop-in" style carriage and prints with NO SUPPORTS!

Assembly:

QTY. 4 - M3x25 bolts

QTY. 4 - M3x15 bolts to secure the hot end cooling fan.

Qty. 4 - #2x3/8 Wood screws (hardware store)

I put a lot of time and effort into this so don't forget to post your make if you find this useful!!!!

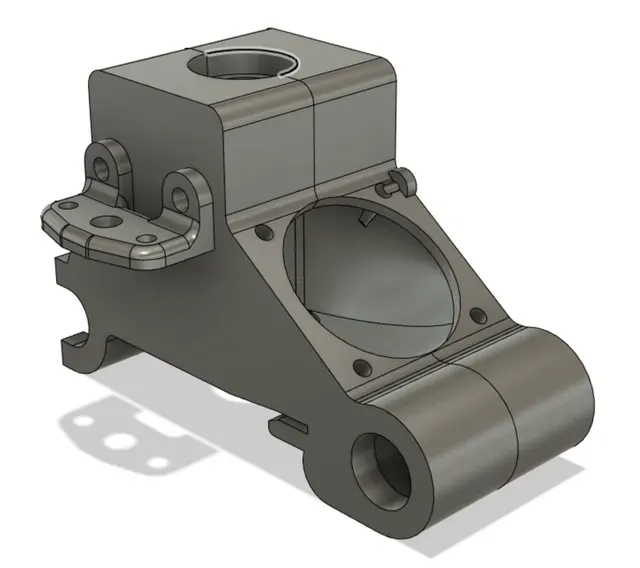

Fusion 360 files are available to be modified as you like!

Category: 3D Printer Parts
