Creality Ender 3 v2 - Clean Shroud (40x20mm Fan & Stock 4010 Blower)

This replaces the original Shroud

For 40x25mm Hot-End Fan and the stock 4010 Blower Fan!

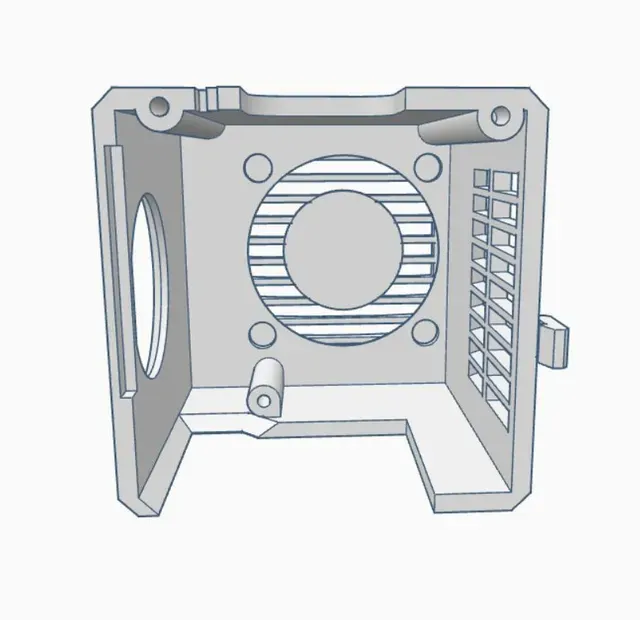

I made a new shroud from scratch for a upgraded 40x25mm Hot-End Fan and the stock 4010 Blower Fan (and its mounting) for Creality Ender-3 V2.

The screw holes are smaller so you can use small wood screw or similar.

- Update 2022-01-24: Small adjustments made to the Main Shroud, larger Shroud Cover for a snug fit.

- Update 2022-01-30: I printed the model and everything fits just fine. You can still use the original screws, but you will have to heat one screw with a lighter and gently screw in it in the hole, this will thred the hole. Then gently screw it out and let everything cool.

- Print the Shroud Cover with the Creality-logo faceing up!

- Print the Shroud so you have the open side up, and the front side down. Use supports (10% Zig-Zag)!

Fasten the Cover to the Shroud with double sided tape, after you mounted the 40x20mm fan.

I hope everything will fit!

Happy Printing!

Print Settings

Supports:

Yes

Resolution: 0.12, 0.16, 0,2

Infill:

100%

Filament:

Any PETG, ABS, PLA Any

Notes:

Use a Filament Material that handle higher temp.

Category: 3D Printer Parts
