4/15.Oil Pan Remix for the LS3 Chevy Engine

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STL
  • 72 Likes
  • 455 Downloads
  • 3 Makes
  • 3 Comments
  • 2 083 Views

Author:dancan13f

Published

Download on Printables

Description

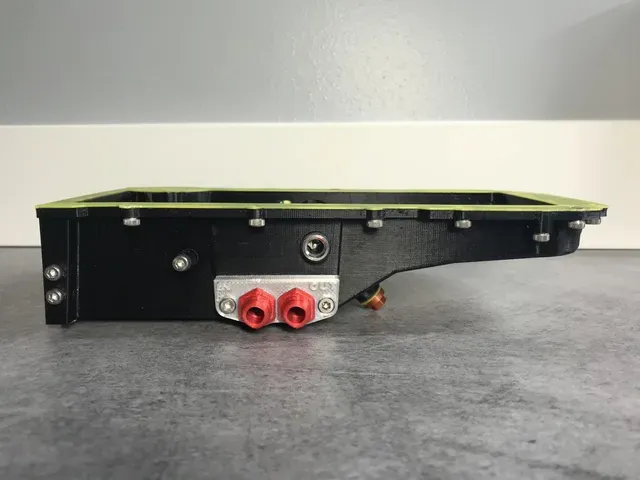

This is Oil Pan Remix for the LS3 Chevy Engine ( https://www.thingiverse.com/thing:1911808 ). The features are : . Replacing factice screws by holes for real screws . Gaskets . Dry Sump Connector . Plugs . Holes for electric components

Print instructions

Printer Brand: Prusa

Printer: I3 MK3S

Rafts: No

Supports: No

Resolution: 0.15mm

Filament: Geeetech PLA Many colors

Print Settings

1 x OilPan : Layer:0.15mm Raft:no Brim:no Support:yes Infill:15% 2 x OilPanConnector : Layer:0.15mm Raft:no Brim:yes Support:yes Infill:100% 1 x OilPanDrySumpConnector : Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x OilPanDrySumpConnectorGasket : Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x OilPanGasket : Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x OilPanOilFilter : Layer:0.15mm Raft:no Brim:no Support:no Infill:15% 1 x OilPanOilFilterGasket : Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x OilPanPlug1 : Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x OilPanPlug1Gasket : Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x OilPanPlug2 : Layer:0.15mm Raft:no Brim:no Support:yes Infill:100% 1 x OilPanPlug2Gasket : Layer:0.15mm Raft:no Brim:no Support:no Infill:100% 1 x OilPanPlug3 : Layer:0.15mm Raft:no Brim:no Support:yes Infill:100% 1 x OilPanPlug3Gasket : Layer:0.15mm Raft:no Brim:no Support:no Infill:100%

Accessories

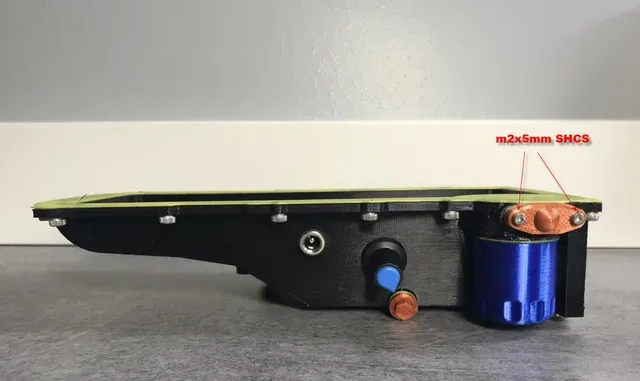

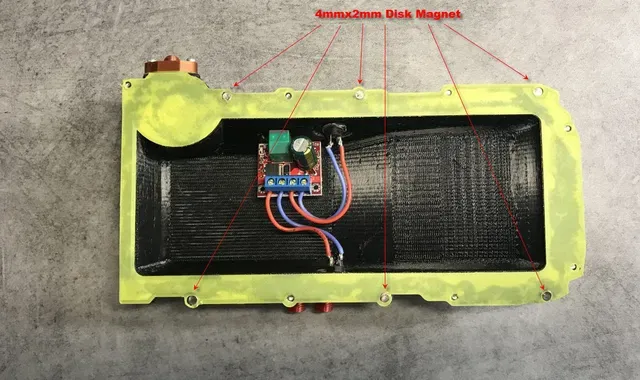

6 x 4mmx2mm Disk Magnet 6 x m3x1.5mm SHCS (i have cut m3x3mm to make m3x1.5mm) 12 x m3x3mm SHCS 2 x m3x5mm SHCS 2 x m2x5mm SHCS 2 x female jack : https://www.amazon.fr/gp/product/B07TNDKY7V/ref=ppx\_yo\_dt\_b\_search\_asin\_image?ie=UTF8&psc=1 1 x potentiometer 12v : https://www.amazon.fr/gp/product/B07B9RFGB6/ref=ppx\_yo\_dt\_b\_search\_asin\_title?ie=UTF8&psc=1

Mounting

Look at pictures.

More add-ons

https://www.printables.com/model/1472258-chevy-ls3-engine-complete-package-of-paid-add-ons
