E3D Titan - Hypercube-S.T.E.V.E. slimline motor mount mods

Model details

Platform
Printables
Price
Free
License
CC-BY
Print, modify and use commercially — credit the author.
Formats
STLSTEP
  • 3 Likes
  • 12 Downloads
  • 0 Makes
  • 0 Comments
  • 245 Views

Author:Phil M

Published

Download on Printables

Description

In order to mount the E3D titan slimline motor some mods to the top linear bearing holder needed to accommodate the wiring connector https://e3d-online.com/nema17-slimline-stepper-motor

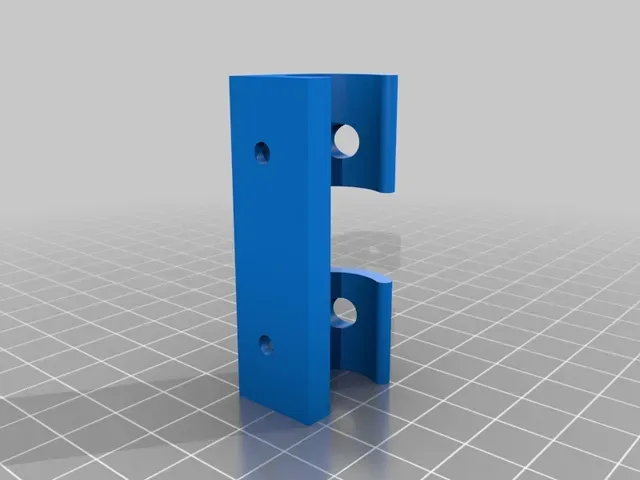

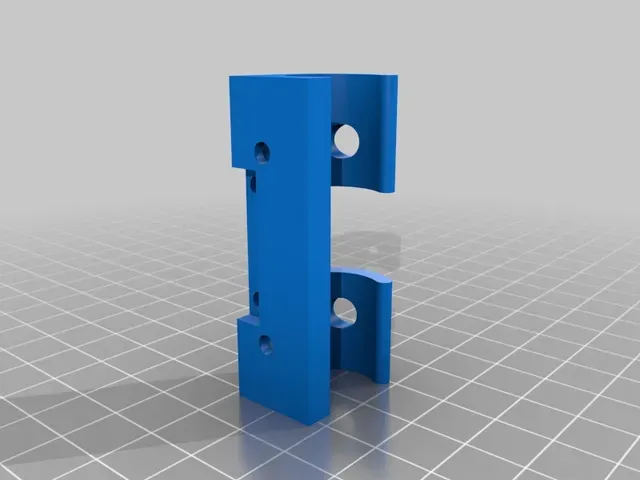

There are 2 types of bearing holder. 1 with just a cut out for the motor connector & 1 with an additional cut out to accommodate a bracket I needed to attach my cable chain.

My bracket stl is included and a step file for those wanting to adapt it.

In order to position the motor, a spacer for the stepper motor is required Attached is a 10mm thick spacer. I ended up needing 11 mm so I non-uniform scaled it to 110%

There is also a bracing strap for the belt clamp arrangement which requires

2 pcs M3 x 30mm Allen bolts

4 pcs M3 plain nut

Category: 3D Printer Accessories
