Articulated Camera Mount (Remix with Eryone Thinker S mount)

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STLSTEP
  • 11 Likes
  • 61 Downloads
  • 0 Makes
  • 0 Comments
  • 475 Views

Author:dapostol73

Published

Download on Printables

Description

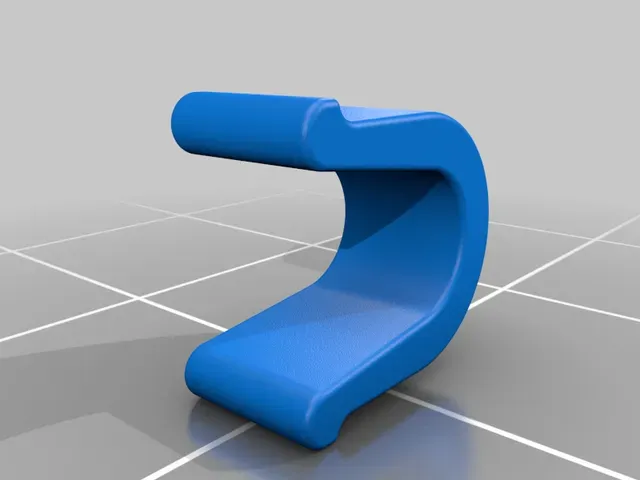

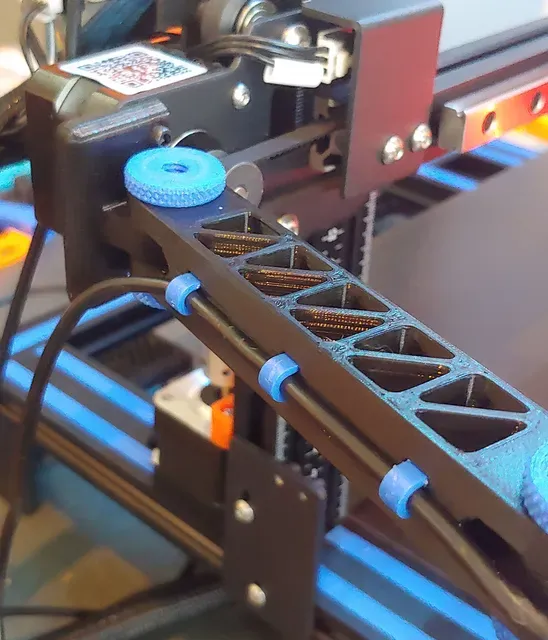

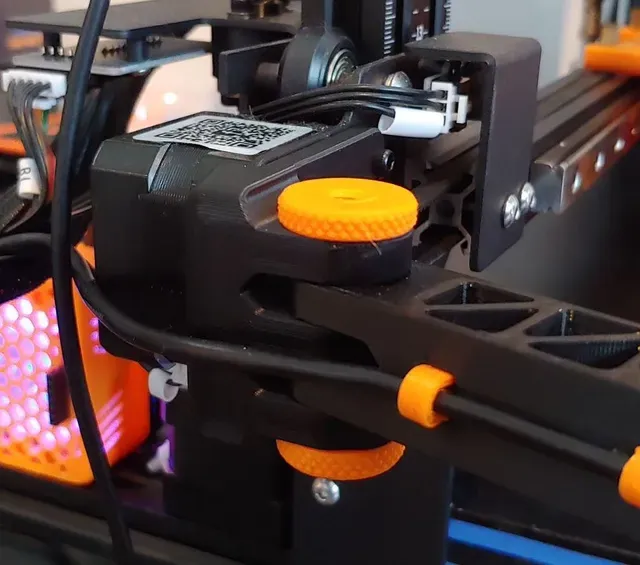

Remix this to fit my Eryone Thinker S Stepper mount, should fit most generic X-Axis steppers. Change the head to work with my Camera and allow for led lights. Change the clamps to work with Z-ties or the printed ones.

Camera used. https://www.amazon.ca/gp/product/B07SC2KRP5/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

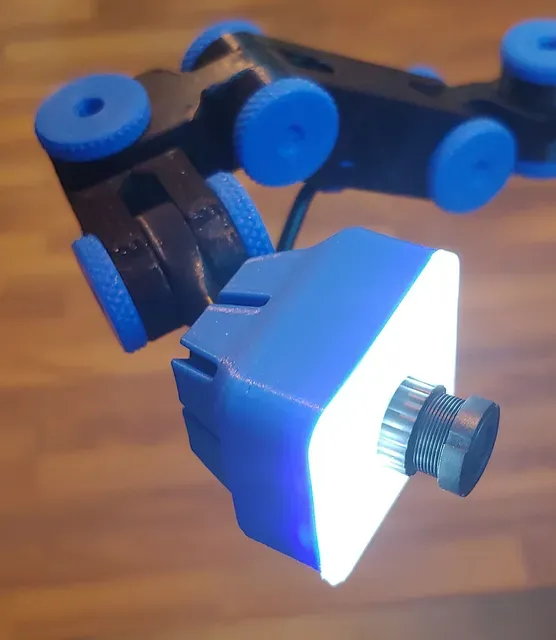

I used 4 White LEDs solder to the main camera board from above, something similar to these: https://www.amazon.ca/Millimeter-Emitting-Assortment-Diffused-Indicator/dp/B07N2GVCYZ

Update:

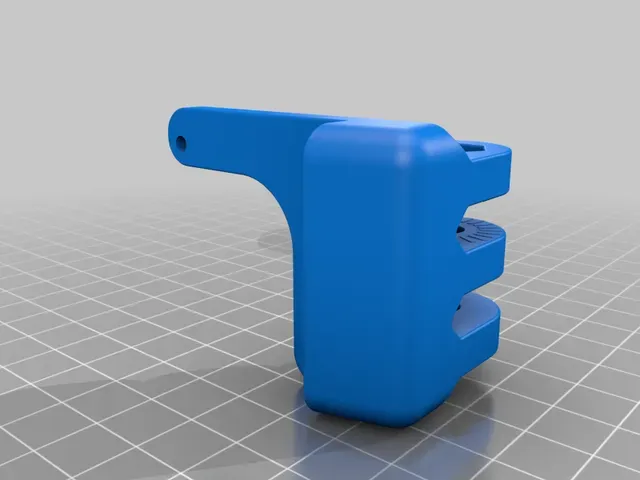

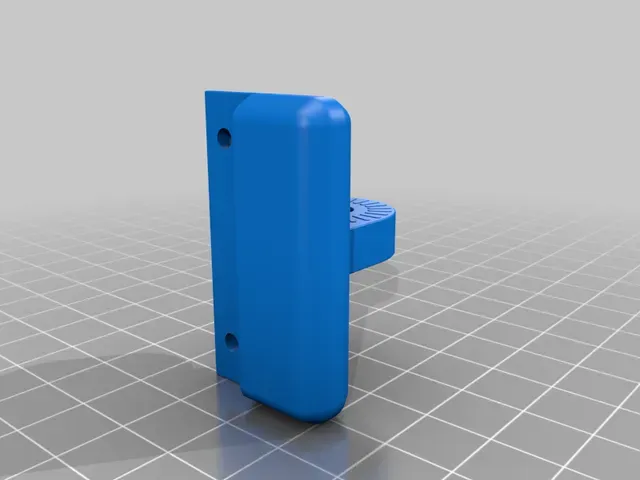

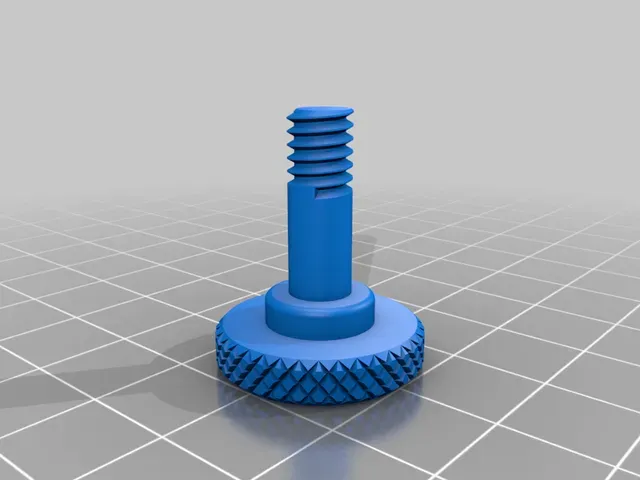

Sept 29, 2021 - Add new Bracket V2 for more stable base with a longer screw for the bracket.

Please post makes, it's nice to see the makes.

Print Settings

Printer:

Eryone Thinker S

Rafts: No

Supports:

Yes

Resolution: 0.2

Infill:

20

Filament:

Anycubic, Eyrone PLA Blue, Black and Transparent

Category: 3D Printer Accessories
