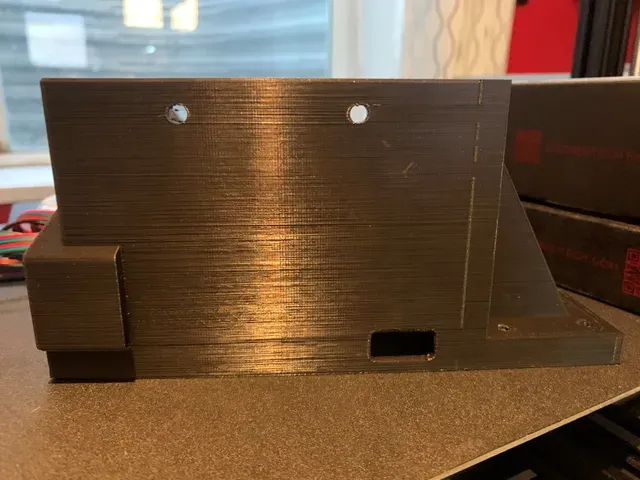

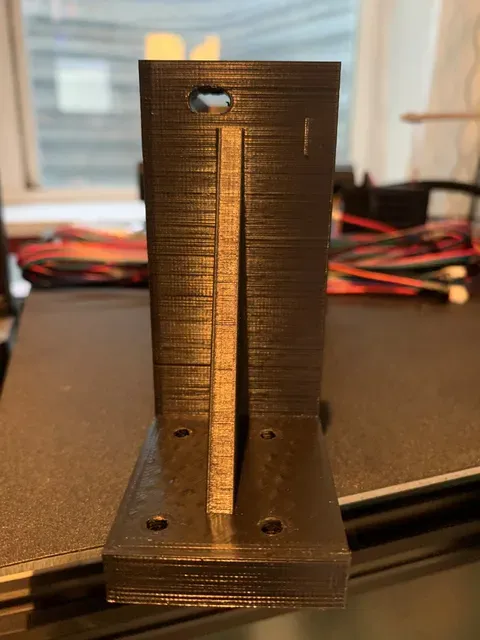

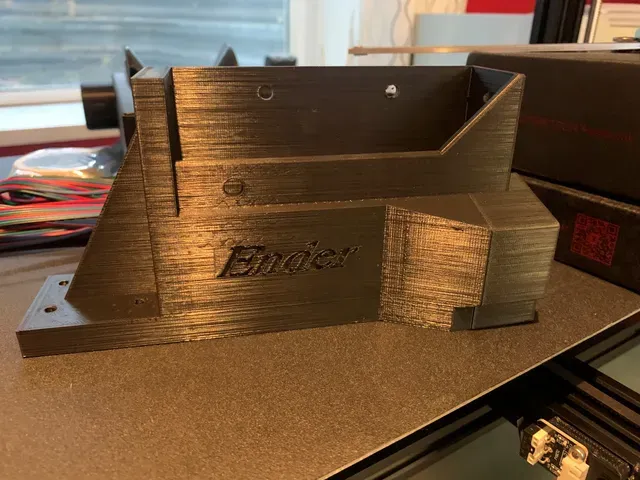

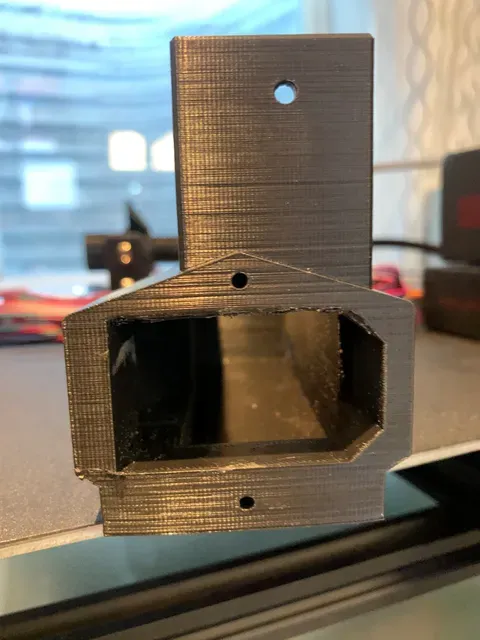

Ender 3 Dual-Z Meanwell LRS-350 case/mount

I wanted to install dual-Z support on my Ender 3 and needed to move the power supply to make room for the second NEMA 17 motor. I found a good handful of Meanwell cases here, but none of them were exactly what I wanted, so I pulled the STLs from mlynch002's (very strong) Ender 3 Power Supply Relocation Bracket, and prudell's (very sleek & sexy) Mean Well LRS-350-24 PSU Cover, into Tinkercad, and used my novice skills to mash them together and create what I wanted.

Being a novice, you may see some imperfections from where I was unable to get the two parts to line up 100%, and fill in one of the screw holes.

You will need 4 M4 x 20mm screws and 4 t-nuts to secure this to the 4040 of your printer's frame.

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: Doesn't Matter

Resolution:

Fine (0.1 mm layer height)

Infill: 30%

Filament: eSun PLA Black

Notes:

Using supports is dependent on how well your printer handles bridging.
