RASPBERRY PI 4 case 50mm fan screwless

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STLSTEP
  • 17 Likes
  • 143 Downloads
  • 1 Makes
  • 2 Comments
  • 1 261 Views

This model on other platforms

Author:derfusi_fablab

Published

Download on Printables

Description

ORIGINAL MAKE: JanWillem Drenten

grabcad.com/library/raspberry-pi-4-case-8

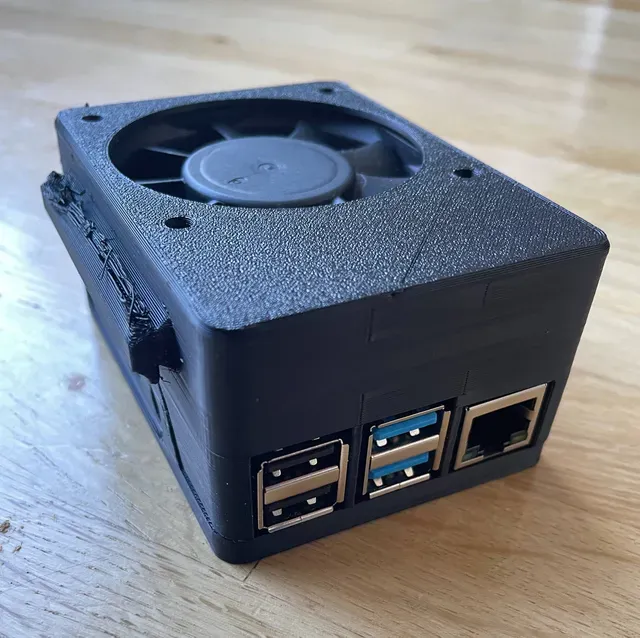

I needed a case for my raspberry running klipper and I had this 50mm fan from the PSU left. I searched a lot but did only find cases where the fan is mounted outside. Sadly thingiverse no one links the STEP data where you could easily remodel it. Thanks to JanWillem's original design where he linked his fusion360 files it was easy to adjust it for the 50mm fan.

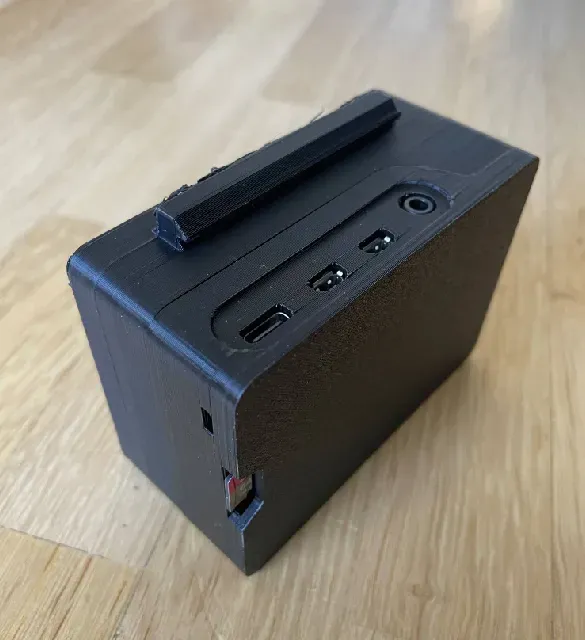

Since I already had STL files for feet on my ender 3 v2, which just slide on the rails, I cut out one rail and slapped it on the top case. It now slides on the left backside of the printer and the raspberry has it's place. The fan also doesn't need any screws, since it's just slides in place pretty snug.

I went without supports and it work "ok"-ish, but the next time I would just add supports for the rail part.

Tags

casefan50mmraspberrypirailrpi4screwlesspi4ender3v2
