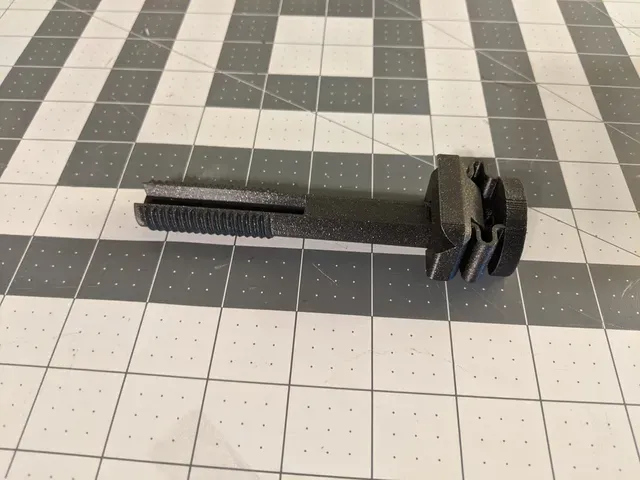

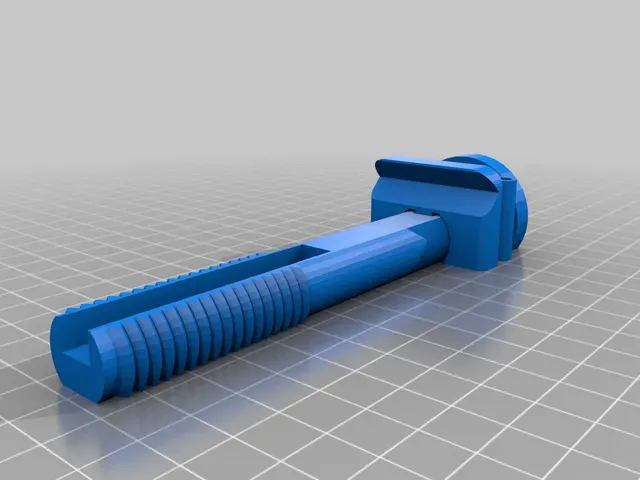

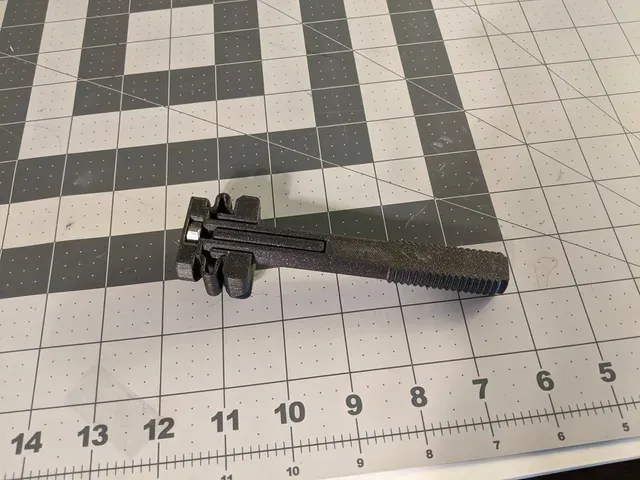

Universal Phone Tripod Mount - normal thickness nut version

Universal Phone Tripod Mount - normal thickness nut version — Image 2 of 4

Universal Phone Tripod Mount - normal thickness nut version — Image 3 of 4

3D model · Printables

Universal Phone Tripod Mount - normal thickness nut version

Platform: Printables
Price: Free
License: CC-BY-NC; Print and modify for yourself with credit; no selling the model or prints.
Formats: STL

9 Likes
96 Downloads
4 Makes
4 Comments
1 006 Views

Author:DorffMeister

Published 2022-05-09

Download on

Printables

Description

jakejake's Universal Phone Tripod Mount is an amazing model - nearly everyone one could possibly want in a Tripod mount for a phone. But it requires a 1/4-20 "jam" nut. When I bought nuts for my Tripod prints I didn't know there WERE "jam" nuts so the only want to get one of the nuts I had into his model was to "jam" it in there :P

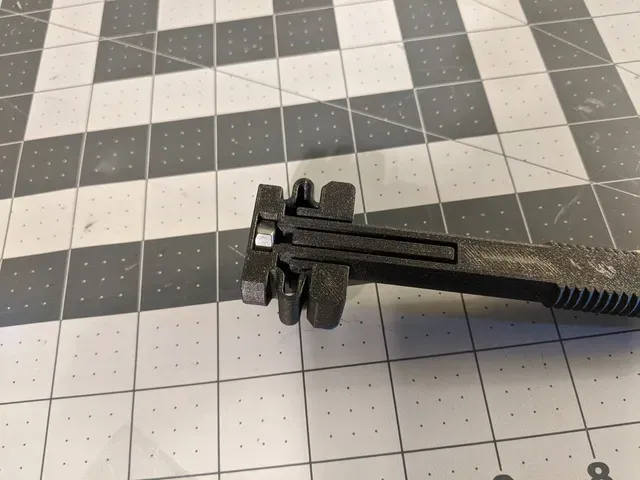

So I brought the original BASE.STL into fusion 360 and opened up a but more of a gap. In the original model, there was 5.08mm of gap for the nut. I expanded it to 5.6mm (when I measured the thickness of the nuts in my possession, I found them to be 5.5mm).

I've include a Fusion360 file.

Category: Camera
