Eryone Thinker SE 2020 extrusion LCD mount

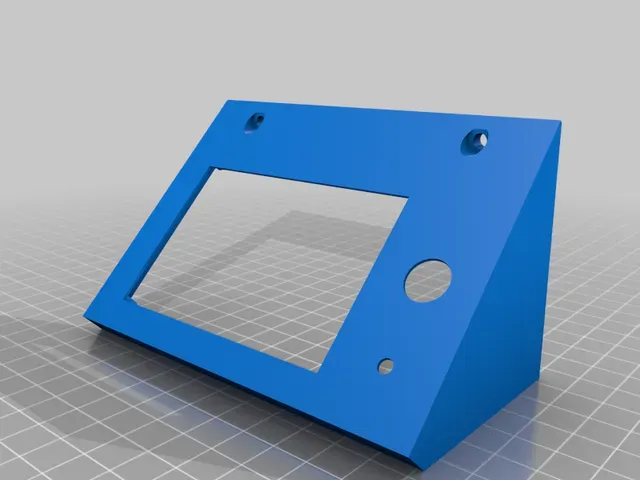

Inclined LCD holder for the one supplied with the Eryone Thinker SE, to be mounted to the front 2020 extrusion. Made after removing the front aluminum plate, it attaches to the LCD screen using the same hardware as before, and attaches to the 2020 extrusion using 2 T-nuts and M4 bolts.

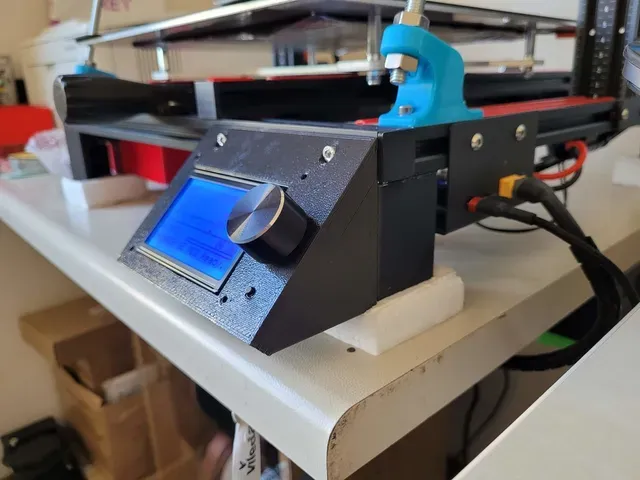

The LCD sits at 45 degrees inclination, and being attached to a plastic part instead of a metal one slightly reduces the clicking noise of the wheel.

If you plan on installing this mod to your printer, check out the 50mm feet I made for this exact purpose here

You can notice in the pictures that there are passthrough screw holes for the LCD. In the uploaded design I have hidden the holes in the front side!

Print Settings

Printer:

Eryone Thinker SE

Rafts:

No

Supports:

No

Resolution:

variable / 0.4mm

Infill:

40%

Filament:

eSun PLA+Black

Notes:

I printed it at variable layer height, but basically any print setting should work
