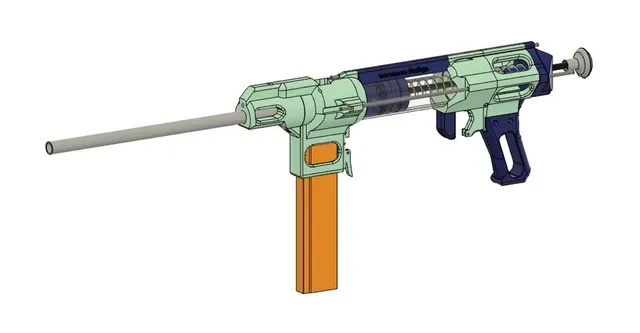

NTE Series 2.0 (Skeletonized and Revised)

The NTE Series 2.0 is the second revision to the NTE platform and fixes a few of the problems with the original. NTE is a half length, T pull blaster that functions similarly to Taffy's Skewer.

CHANGES (compared to 1.0)

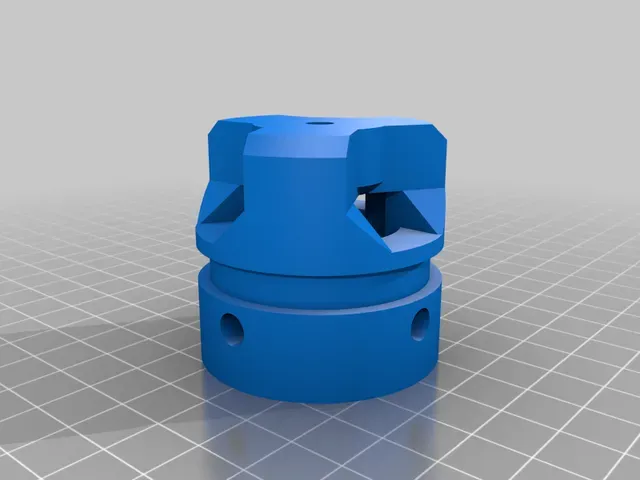

-Rambase now uses Taffy's excellent 'sunburst' design which gives it an insane improvement in durability.

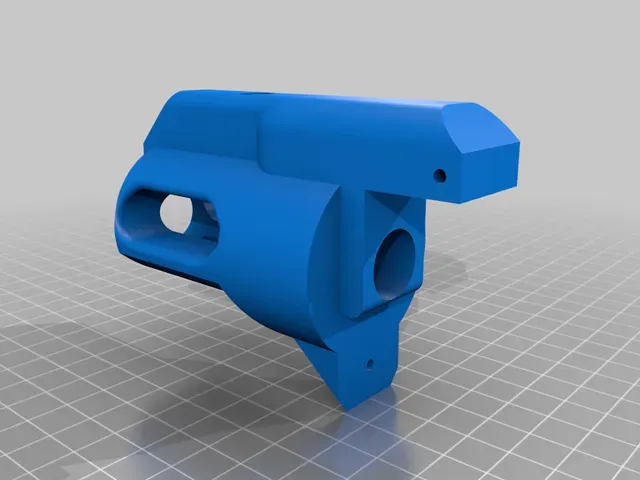

-Muzzle redesigned to look a little better and now takes nuts instead of self-tapping screws, which means the barrel actually should stay in.

-Various parts are now skeletonized but should still print fine with minimal support. This blaster is still a mysterious beast and i would rather waste less filament while testing it.

-Small changes to rambase and o ring slots to make it stay locked into the threaded rod better and retain the ramrod.

-Grip prints horizontally.

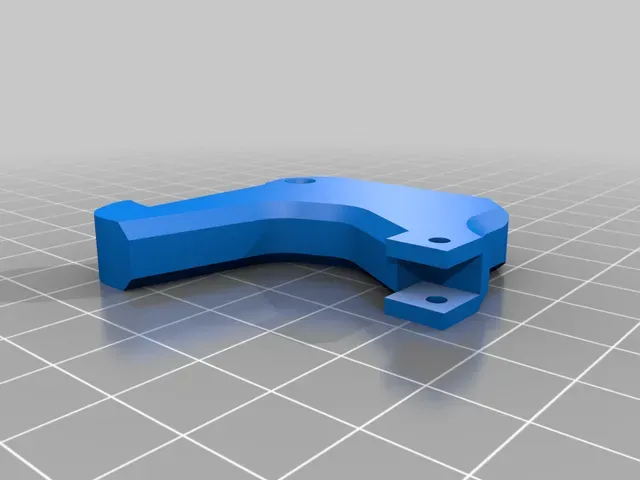

-New T pull, if it doesn't work use the old one. Intended to print at a 45 degree angle on the angled flat piece.

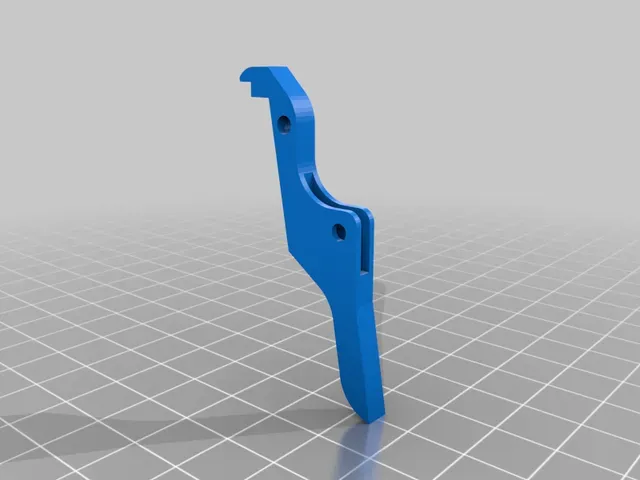

The trigger still has some funny issues so i would recommend making sure it prints well.

FIRING DEMO (1.0)- https://www.youtube.com/watch?v=ZOfkD8dxHKk

HARDWARE LIST- https://docs.google.com/document/d/1ISFzQ0_F05KoUkljwyMoXdUm3yjPJDhgNyWZ_ZSLl04/edit?usp=sharing

PRINT GUIDE-

[a bit outdated] https://docs.google.com/document/d/1CR13LufGCSV5lCAoPf_d2X5k9qigaVPrxjqONwb8Ef8/edit?usp=sharing

BUILD GUIDE

[outdated] https://docs.google.com/document/d/18kN5zD2rHf-_SyPsZe56Yjw-nz96UgRm0ShDuR58Ylo/edit?usp=sharing

PERFORMANCE-

this blaster is capable of taking various spring combinations, i've tried K25 and K26 threaded together and gotten 260+ fps on full lengths. The catch can be iffy however, maybe print two in case one wears down.

REVISIONS-

-10/20/21 added STEP file.

-

If you have issues or stuff to say i'm available on reddit (u/Zealous_Echo93) and discord (@noreason#4172).

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

Rafts:

No

Supports: Yes

Resolution:

0.28

Filament:

Hatchbox PLA Glow

Notes:

some small supports required but mostly no

Category: Mechanical Toys
