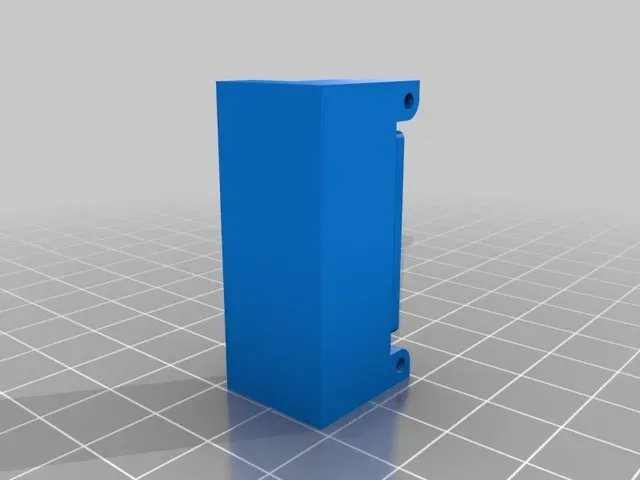

Tusk Fan Duct for Bondtech BMG and E3D V6 with 40mm Blower Fan

This is a fan duct I designed based of the Tusk Part cooling fan idea by SublimeLayers. I modified it an built a version strongly inspired by the one from cdoe.

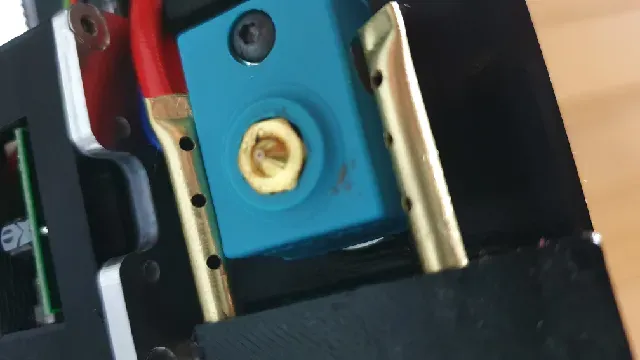

This duct is using a 40mm blower fan and 2 pieces of 4mm (OD) brass tubing. It's working great so far - maybe I will make a different version vor a stronger 5015 blower fan.

I also provided the f3d and stp file.

Print instructions

Category: 3D Printer Parts Print Settings

Printer: CR-3D C1

Rafts: No

Supports: No

Resolution: 0.2

Infill: 15%

Filament: dasFilament PETG schwarz

Notes:

Turn on "thin wall detection" for this print. The top part, which "seals" the fan and duct is only 0.45mm thick (or thin).
