Hex bit handle and stand

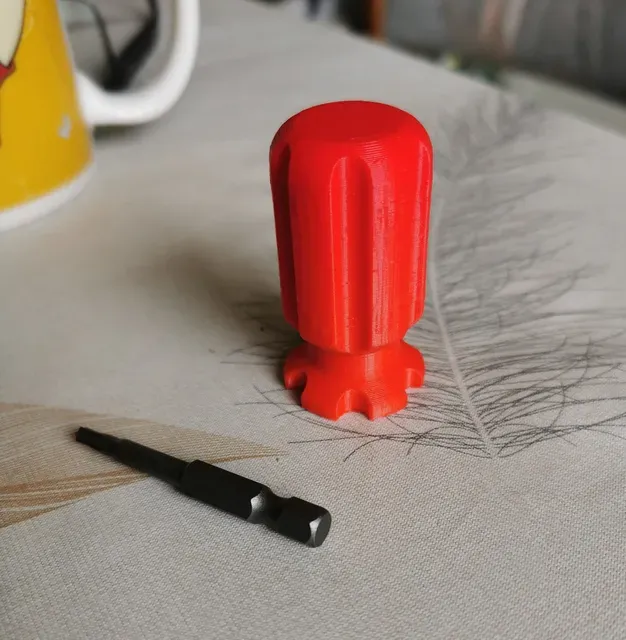

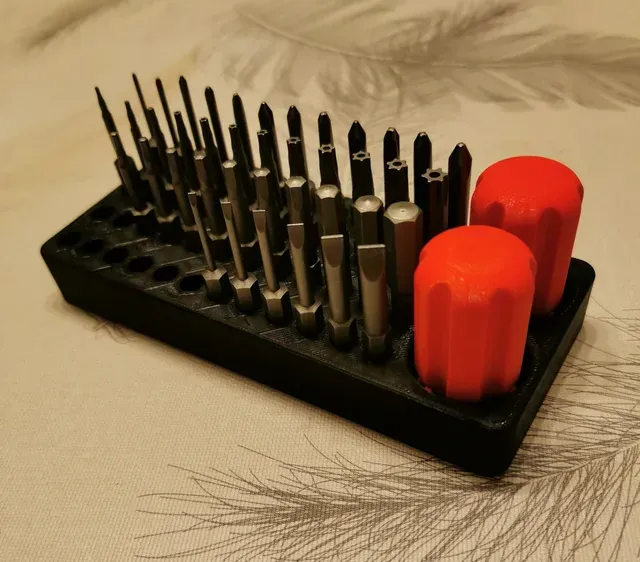

Two handles (one with a long shaft/hole and one with a short one) and a stand for use with hex bits (6x4mm sides). The stand holds two handles and 48 bits

This was my first "real" project in FreeCAD, and it turned out better then i thought it would :-)

I use it regularly, so for me it was a good "build".

It might be useful to glue or embed a small flat magnet in the handle. I didn't, but next time i think i will... The hexbits can sit a bit loose inside the handle sometimes.

Print Settings

Printer:

Artillery Sidewinder X1

Rafts: No

Supports:

No

Resolution: 0.2

Infill:

15%

Filament:

3DJake (generic PLA) PLA Black and red

Notes:

I used PLA for my print, no supports, no brim, no raft. The sides are 3 layers thick and top/bottom 5 layers

.
