Excuse the poor photos!

ADXL343 (Cheaper than 345) mount for the new MicroSwiss NG extruder.

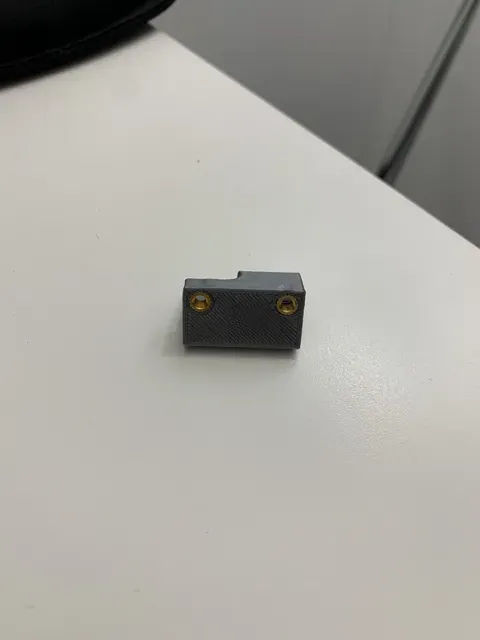

A little overkill with heated inserts but hold solid to get an accurate reading.

These are the brass inserts I used: https://www.amazon.co.uk/gp/product/B09MCWTGLZ/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1

You'll need:

3x brass inserts

2x M3x4mm bolts

1x M3x12 bolt

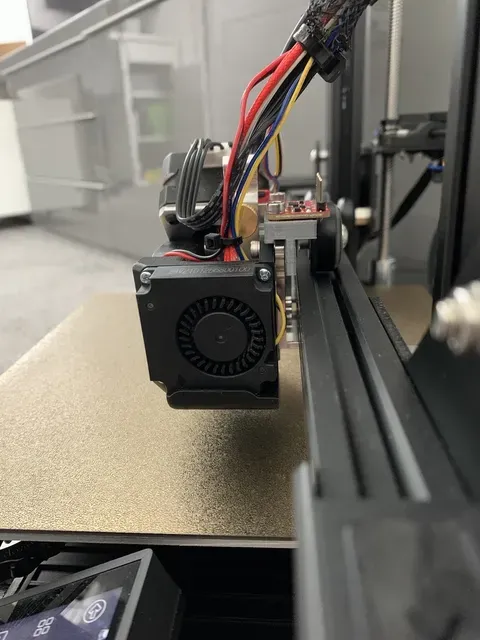

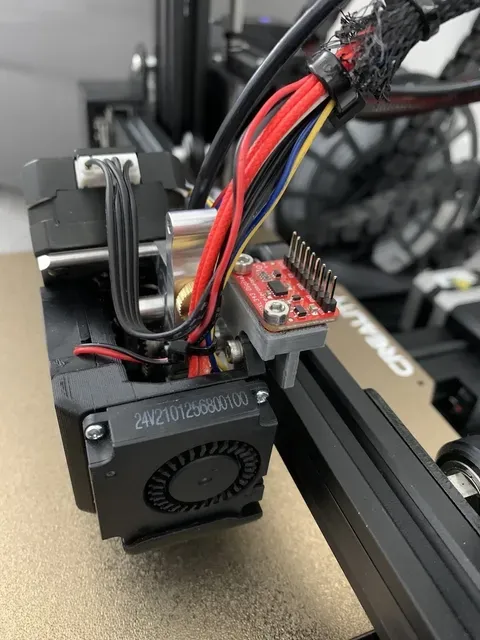

Remove the top right screw holding the fan shroud in place, use the 12mm bolt through the shroud through the mount and into the the 343 mount.

Can be left on the printer permanently if you want.

Enjoy

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: No

Resolution:

0.2

Infill: 50
