Filament FAULT sensor - REMIX - Tangle and/or Runout

This is a REMIX and enhancement to the Filament FAULT detector by re-NABLE.

re-NABLE's design is good, but I had a couple minor issues:

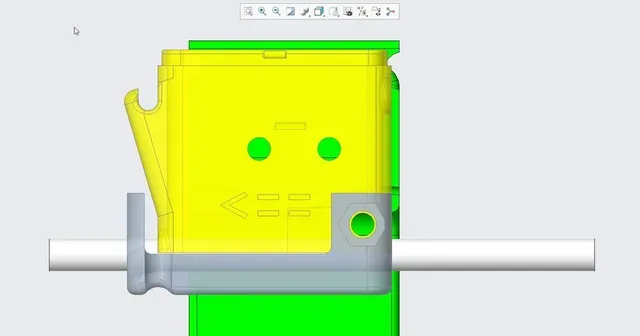

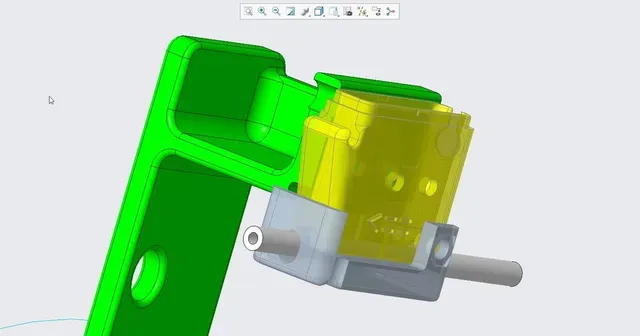

- I wanted to integrate it into a heated dry box: https://www.thingiverse.com/thing:2778707 The re-NABLE "bracket" did not work with the spool holders I already printed.

- I noticed binding of the filament though the lever. Adding a length of PTFE tubing reduced friction

- I wanted to use a stock of my existing roller micro switches and they did not fit into the re-NABLE box.

- There wasn't a sufficient "parts list" or documentation in the re-NABLE build.

Something I noticed while remodeling items was when using a roller switch, the sensor acted only as a "Tangle Sensor". Since I have a filament run-out sensor near my Bowden extruder I was fine with this.

FULL documentation is now in the Thing Files!

Print Settings

Printer:

Anet A8

Rafts: No

Supports:

No

Resolution: 0.1mm to 0.2mm

Infill:

70%

Filament:

3D Solutech PLA

Notes:

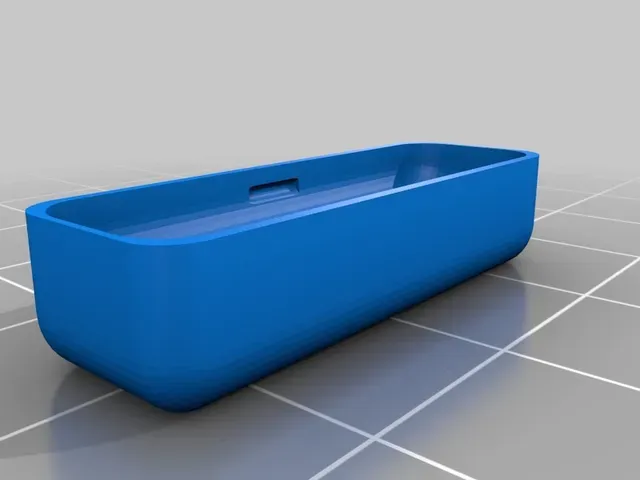

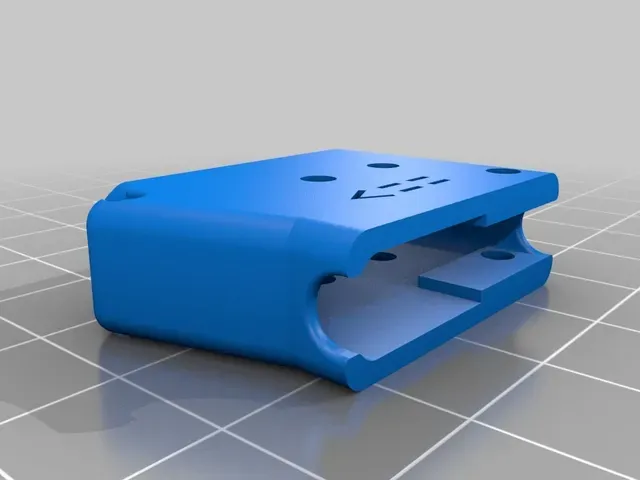

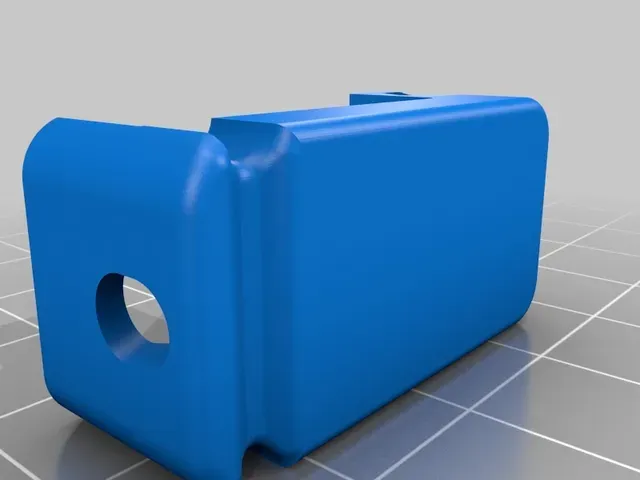

70% infill should be used on the Box and Lever part.

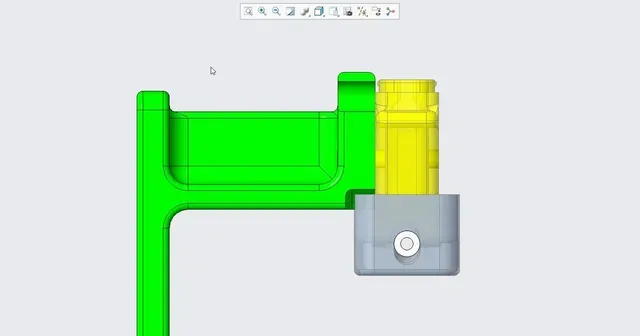

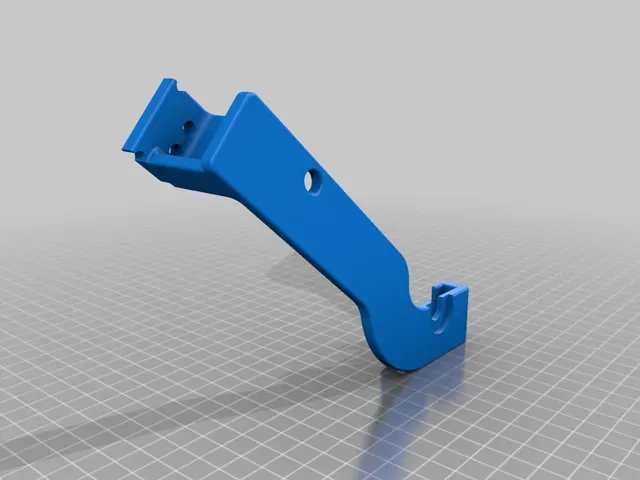

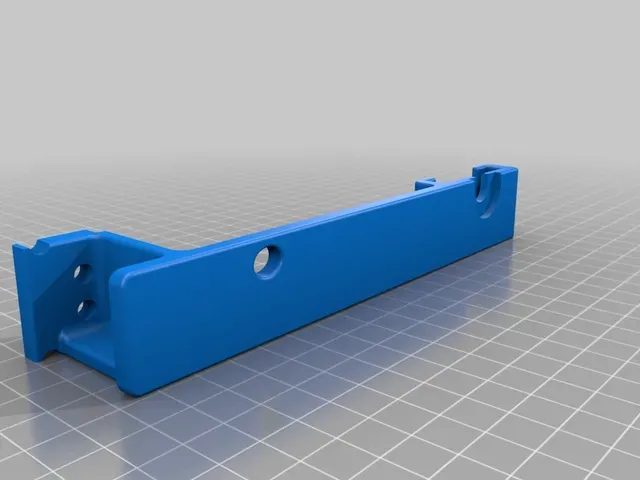

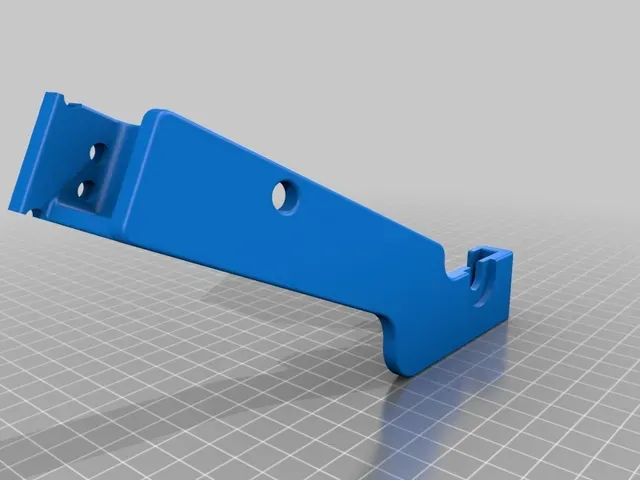

35% infill should be suitable enough for the Bracket parts. The two brackets that need supports - go with:

- Support Placement: Everywhere

- Support Pattern: Zig Zag

- Support Z Distance: 0.2mm

- Enable Support Interface

- Support Interface Thickness: 1.5mm

- Support Interface Resolution: 0.2mm

- Support Interface Density: 50%

- Support Interface Pattern: Lines
