Dremel 3000 sanding table

I was looking for a sanding table for my dremel 3000 and was kind of out of luck.

So i design mine.

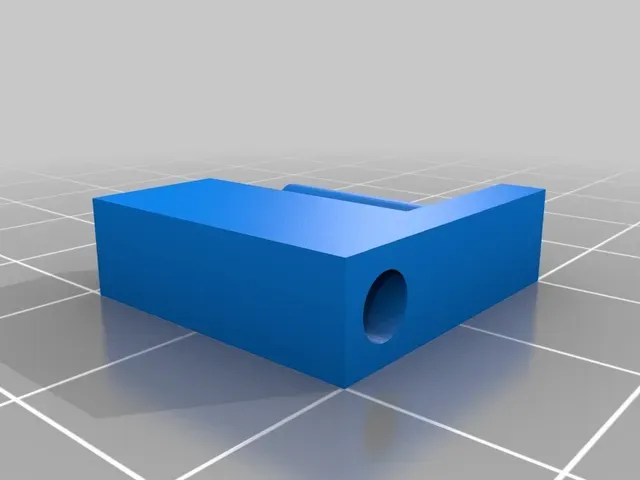

I did use the "thread on holder" from here ( https://www.thingiverse.com/thing:2403115 ) as a dremel support and "basis" for my table.

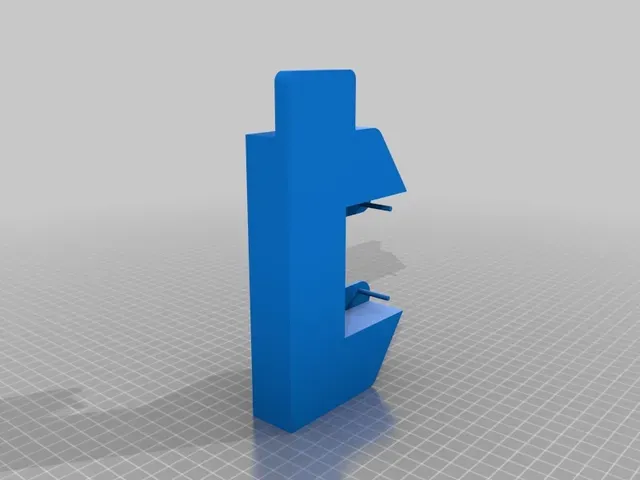

My table "clip" on this holder.

The "flat" part is for clamping on a table

the "rallonge" is done because in my first release, I did not have enough room for the tool.... so this extender will allow to have more room.

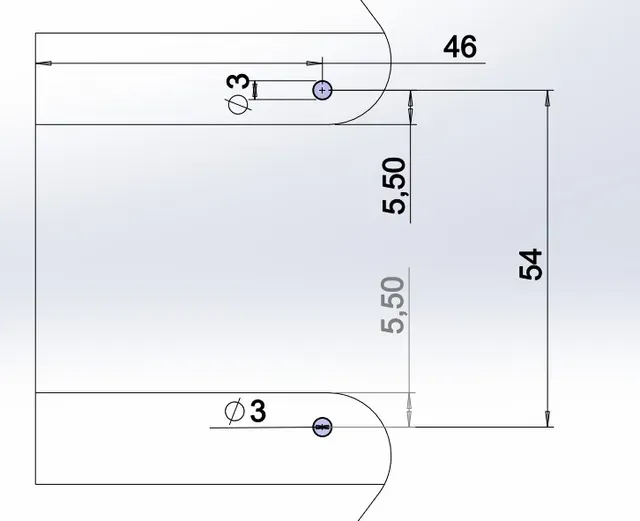

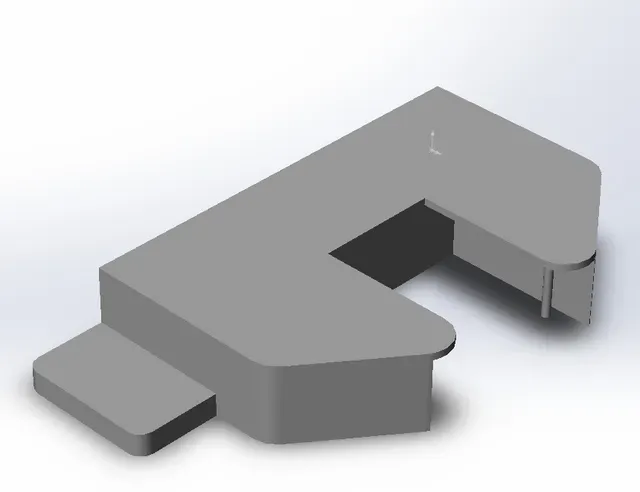

I did add the solidworks file attached, please feel free to tune it.

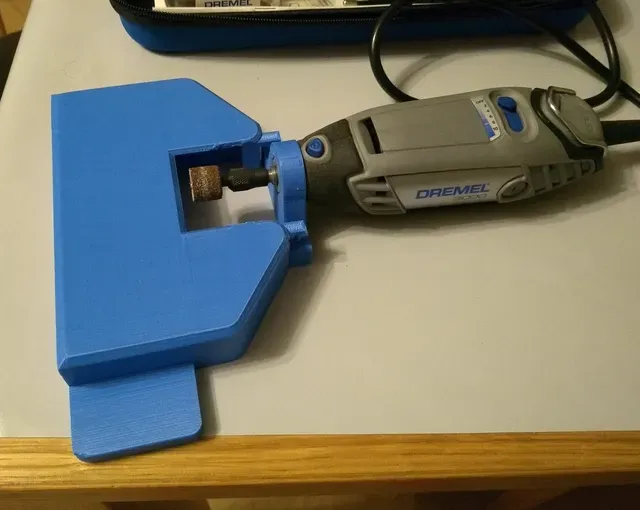

You will see the photo is a bit different than the plan, it is because i did "fix" the plan after this printing.

Feel free to comment.

Yoann

Print Settings

Printer Brand:

RepRap

Printer: RepRap Kossel XL

Rafts:

No

Supports: Yes

Resolution:

0.2

Infill: 20%

Notes:

It should be printed easily.rnBeware of the needed printing volume and PLA needed (around 100g).rn

Category: Machine Tools
