Pen Ball

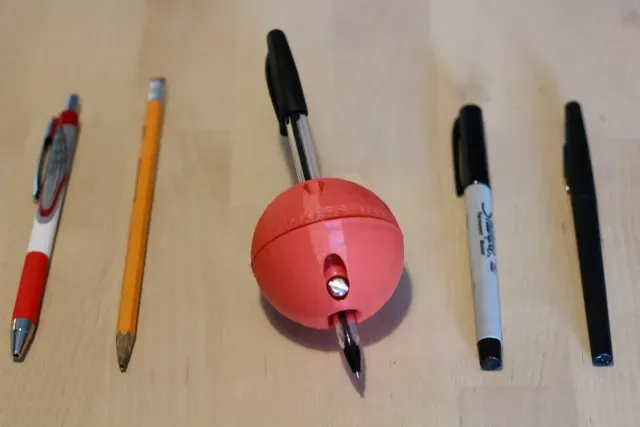

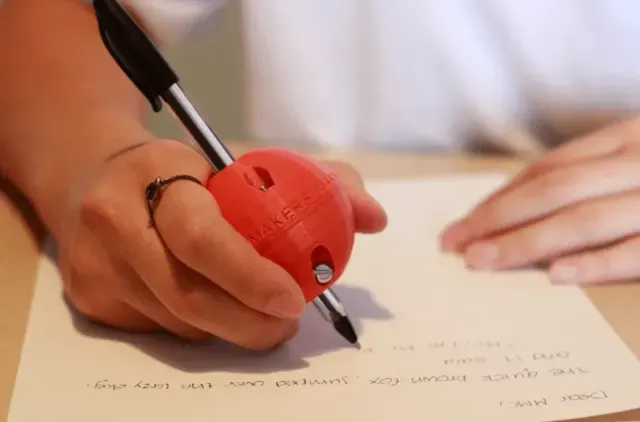

This is a customizable (parametric) 3D printable writing aid. The pen ball makes it easier to grip a pen, pencil, or other writing utensil and may be useful for someone who has difficulty holding a pen or pencil directly.

The diameter of the ball and the writing utensil diameter are available in different sizing and are able to be customized further if needed. There are multiple sizes available for this device for both the device size and pen hole size.

Print Settings

Infill : 20%

Resolution : 0.2mm

Supports : No

Rafts : No

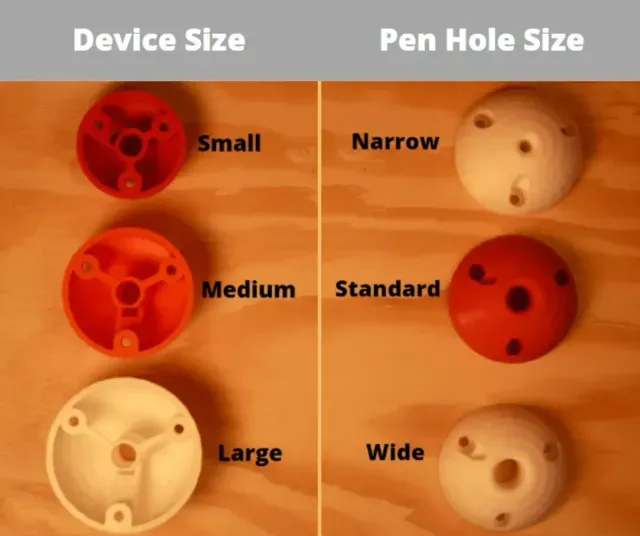

Sizing Guide

Pen ball version Pen hole size Ball diameter (mm) Maximum Pen Hole Diameter (mm)

Small pen ball Narrow 50 5

Standard 50 10.5

Wide 50 12.5

Medium pen ball Narrow 60 5

Standard 60 10.5

Wide 60 12.5

Large pen ball Narrow 70 5

Standard 70 10.5

Wide 70 12.5

Assembly

Additional Documentation

https://github.com/makersmakingchange/Pen-Ball
