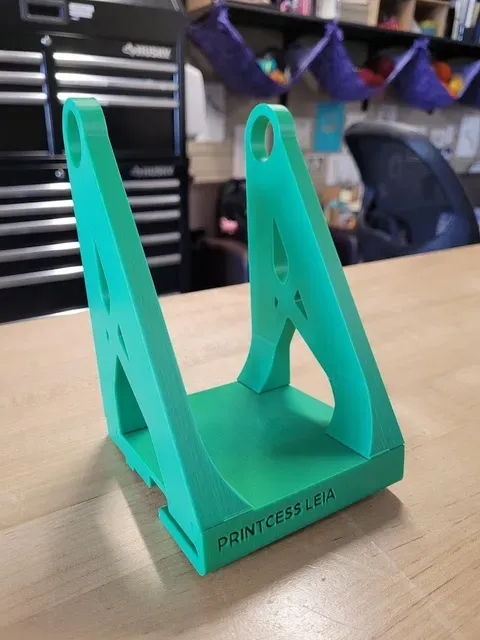

Flashforge Creator Pro Upright Spool Holder

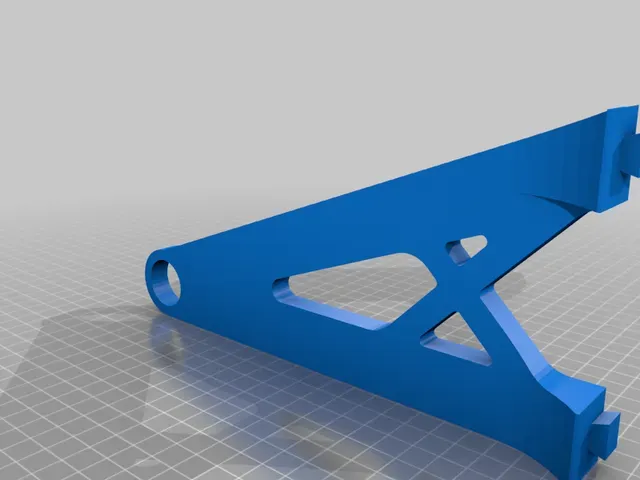

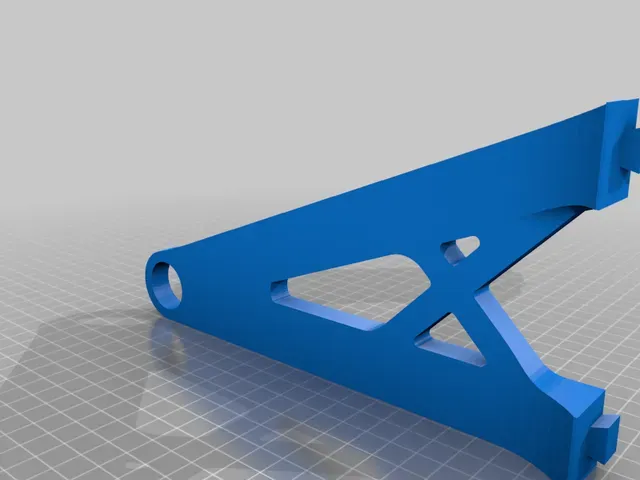

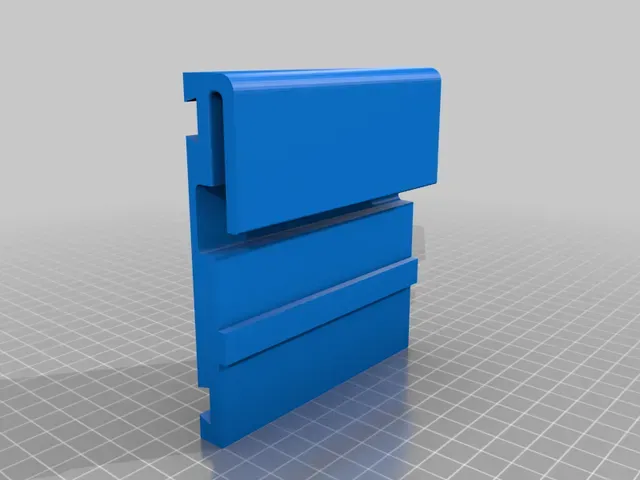

This filament holder slides on to the top of the Flashforge Creator Pro to make filament spools more accessible. You will need 2 sides (mirror images of each other--mirrored in slicer) & 1 base.

It also requires 1/2" PVC pipe about 6" long with 2 PVC pipe caps.

Filament unspools directly into the extruder. The main downside is that you can't use the clear plastic enclosure with this holder, so you have to use another holder for printing ABS.

Versions:

- standard side: 8.91" tall overall

- shorter side: 8.64" tall overall

- shortest side: 6.16" tall overall (our favorite)

Original design by Sidharth Kumar!

Print Settings

Rafts:

No

Supports: No

Resolution:

0.2-0.3mm

Infill: 30%

Filament: Hatchbox PLA

Notes:

- Print the base on the flat face (the side). You shouldn't need supports Print the sides on the flat face (the back)

Category: 3D Printer Accessories
