Design Moon Lamp

This is a cool lamp. Maybe a gift. This is easy to print. This is an eye catcher. This takes about 2 days to print. This is a #3dp design.

“So many people enjoy this print. The idea that my lamp has thousands of sisters around the world is kinda nice. Thank you for sharing your makes.”

This model will always be free. If you like what you see, please consider tipping me to support my hobby. paypal.me/FrankDeschner

Model

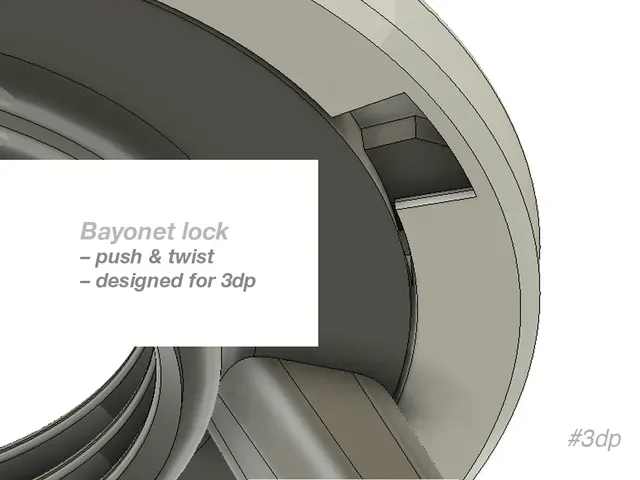

Globe: 20,5 cm diameter, max. Prusa envelope Bayonet lock: works with all tolerances Lightstand: 40/28 mm socket hole rocket legs Ceiling adapter: moon hangs upside down – but really nobody can tell

Moon Globe

High-res Moon Globe, diameter approx.: 210 mm Hole for light bulb, approx. diameter: 50 mm

Lightstand

Height: 85 mm Socket hole diameter: 40 mm

Ceiling adapter

Height: 20 mm Socket hole diameter: 28/40 mm

LED lighting

The lower the light, the better the globe looks. A night-light-like looks very cool.

Check out the remixes and all the makes. Thanks to the community!

My lamp kit: E26/27 lamp socket, 12 ft braided cord, on/off switch - amazon lamp kits Small LED globe light bulbs, warm/neutral white, 25 W - amazon 25 W bulbs

Print instructions

Moon

Infill: 100 % or 4-5 perimeters Layer: 0,2 mm Brim recommended Supports: No! It really works.

PrusaSlicer Tipps:

- check “Dynamic speed at overhangs” - check “Ensure vertical shell thickness" - lower temperature through the top/bottom part Stand

Infill: 30 % cubic Shell: 3 perimeters for stability Layer: 0,15 mm Supports: no

Printer

Prusa MK3s

Filament

inland PLA+ white - Micro Center PLA+ Light Marble PLA Prusa PLA silver - Prusament PLA

Print time

Moon: approx. 44 hrs Stand: approx. 4 hrs

License

Digital files have a strict non-commercial, personal use only license.

You can print the model for yourself, friends and anyone who wants to have this lamp in small quantities. I don't mind if you charge them for your material and efforts. I also don't mind a tip in that case. Please don't try to sell the physical model commercially (etsy etc.).

Credit for the Moon Lithophane goes to u/moononournation: 8 in Progressive Detail Moon Lamp Thank you!

You shall not share, sub-license, sell, transfer, or distribute in any way the digital file of this object. You can not host this files on other digital platforms, web stores or cloud repositories.
