Hotend Cable Vertical Support Coreception, Elf & SapphirePro

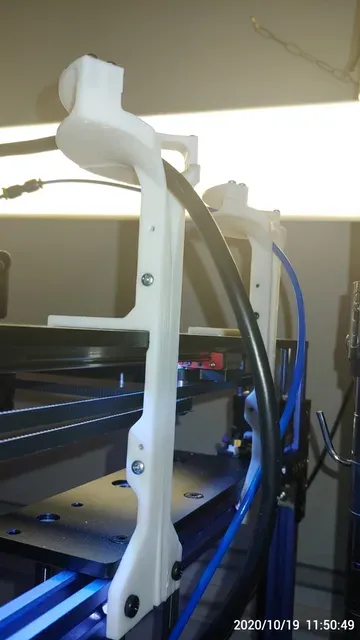

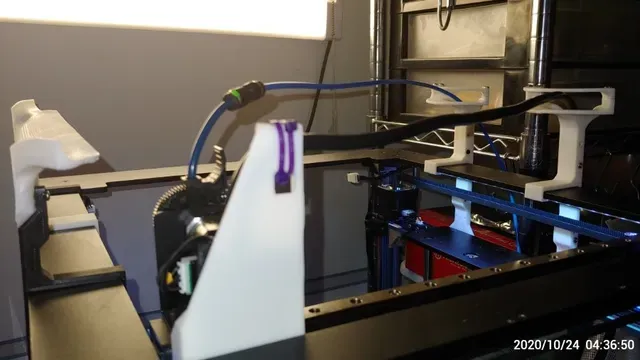

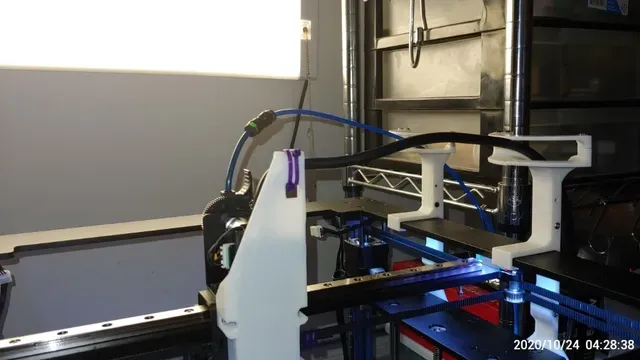

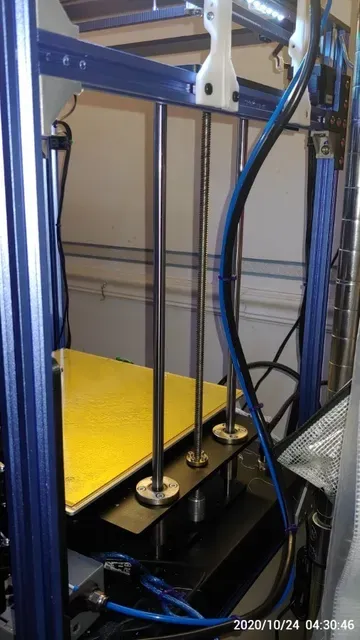

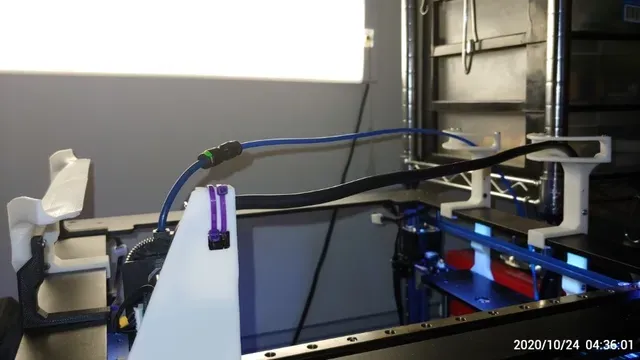

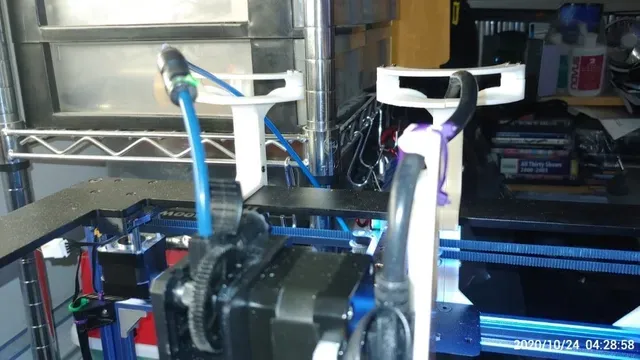

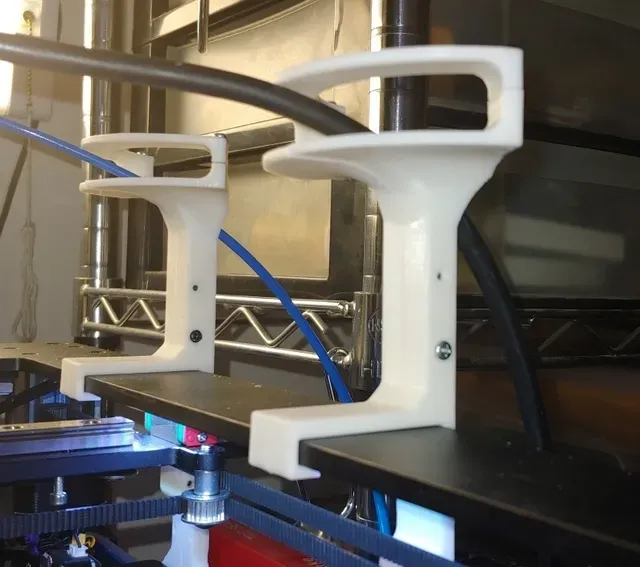

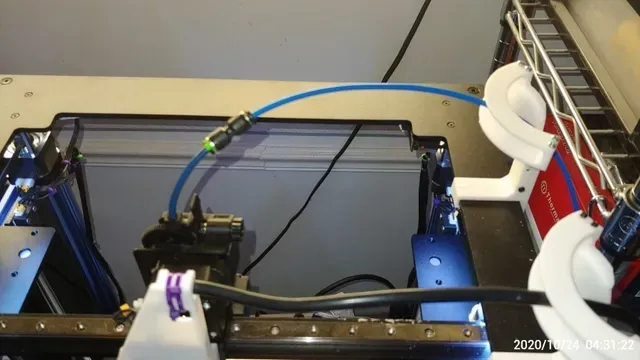

Elevates hotend cable from the controller to a strain relief mounted on the linear rail carriage assembly.

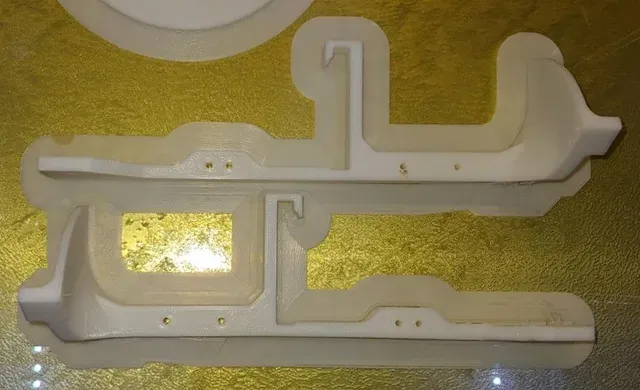

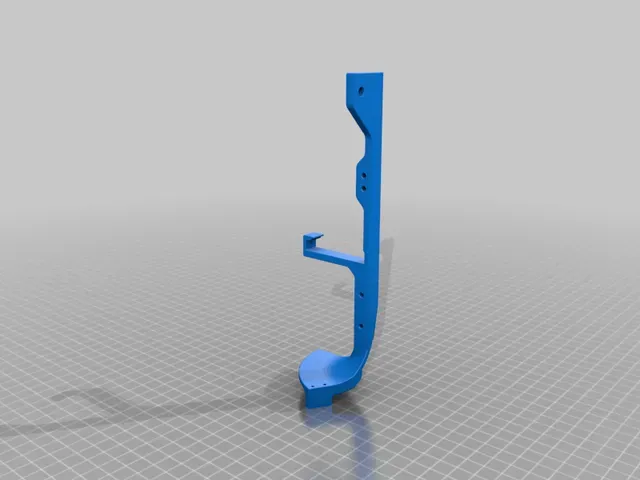

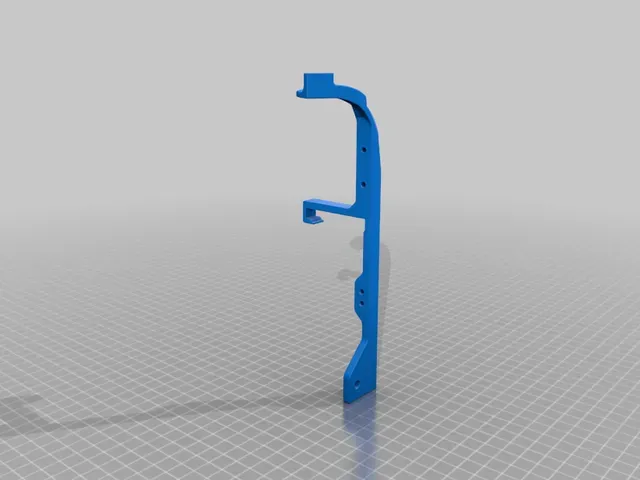

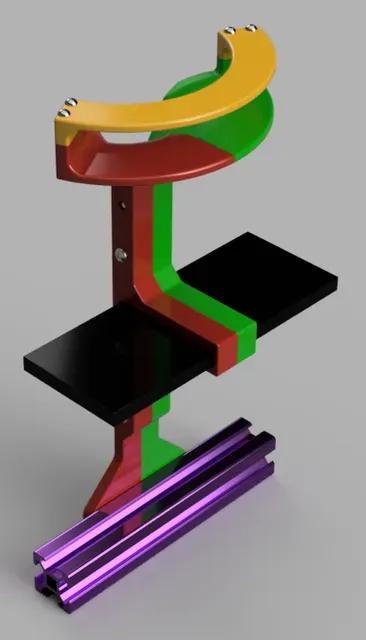

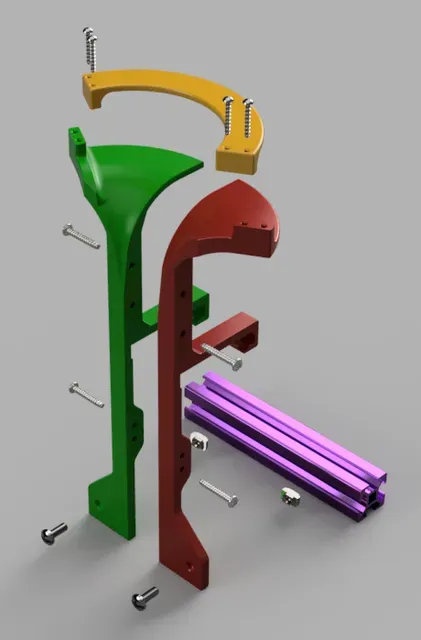

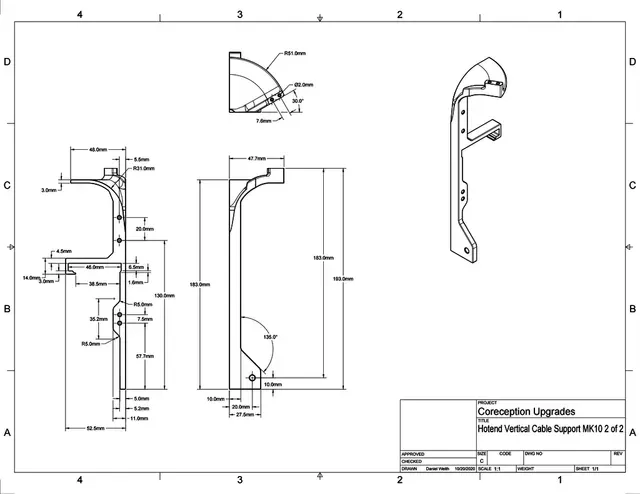

Two parts are mirror objects that are fastened together using No. 4 thread forming or M3 sheet metal screws.

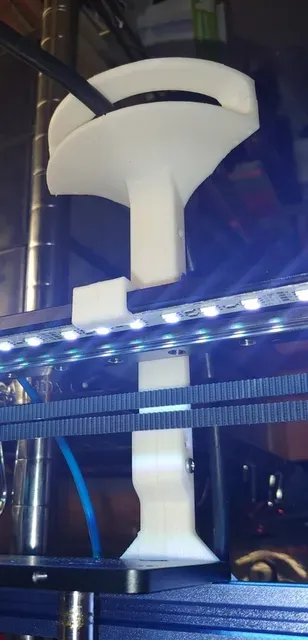

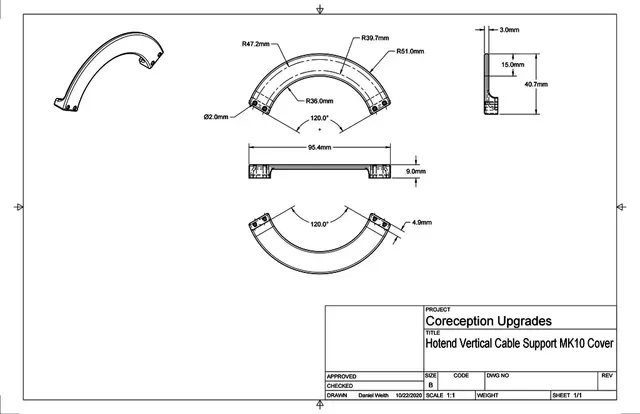

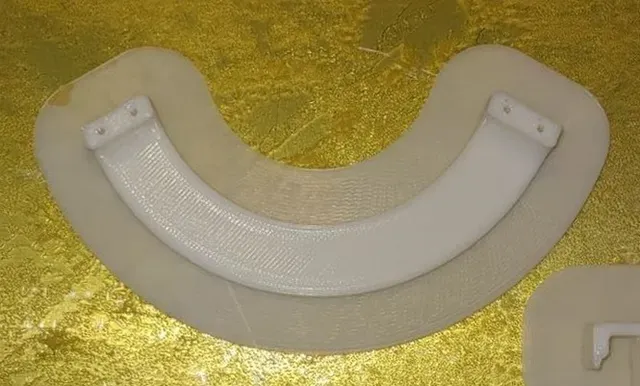

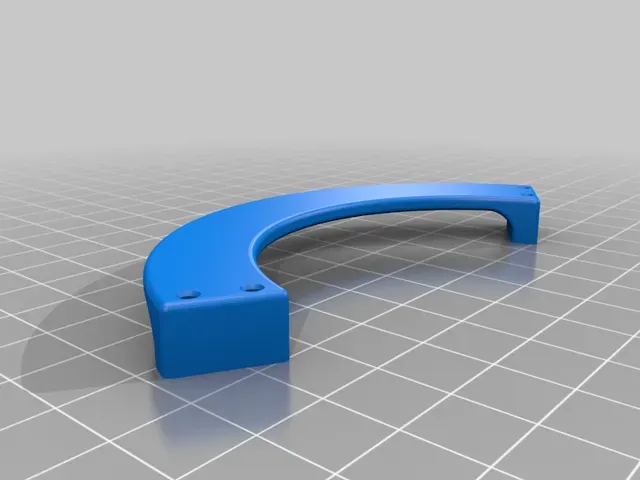

The third printed part is a cable retaining top cover attached using No. 2 thread forming or M2 sheet metal screws. It resembles almost a one quarter (1/4) ring with an outside edge that follows the same radius as the two mirrored brackets.

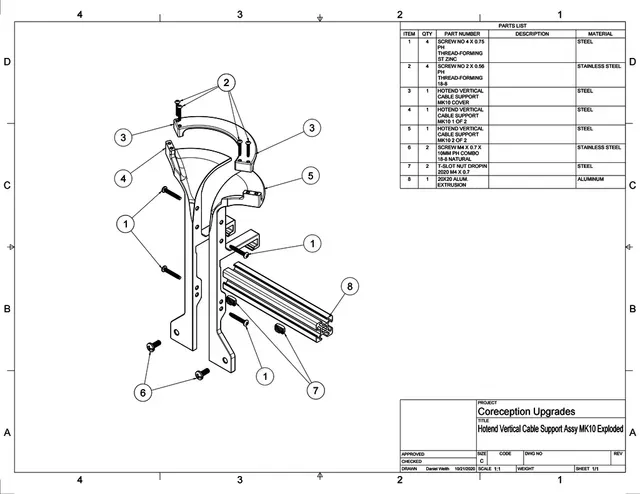

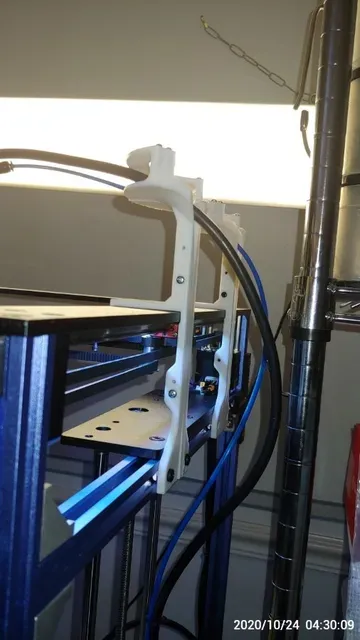

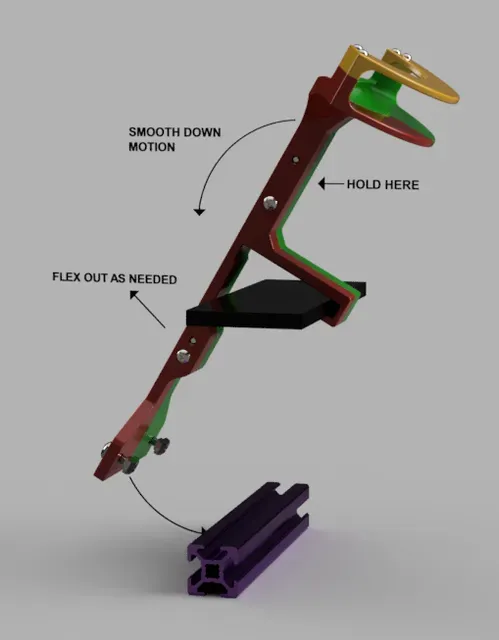

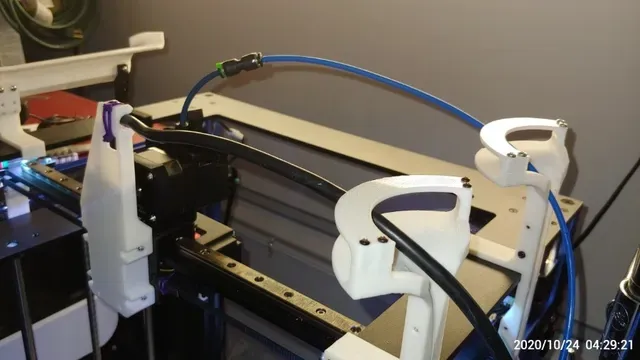

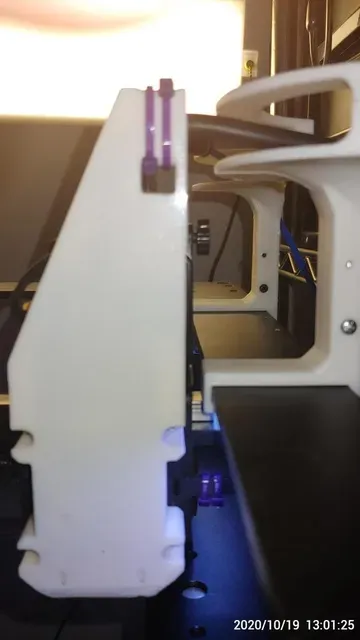

Attach the bottom of the vertical support brackets using a M4 x 8mm long screws and M4 drop-in nuts to the 2020 extrusion.

Complement Coreception Junction Cover with Hotend Cable Strain Relief:: https://www.thingiverse.com/thing:4629839

Print Settings

Printer:

SainSmart Coreception-300

Rafts: No

Supports:

Yes

Resolution: 0.2-0.25mm

Infill:

40-70%

Filament:

Any ABS, PLA+ or PETG Any

Notes:

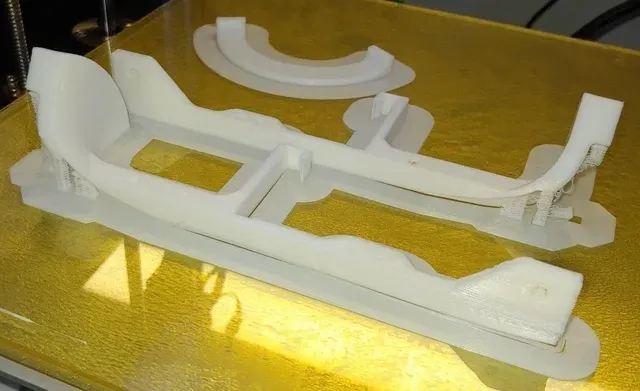

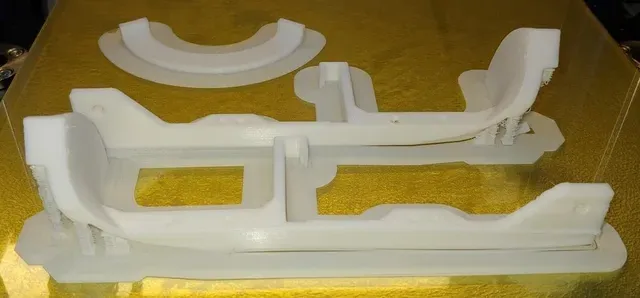

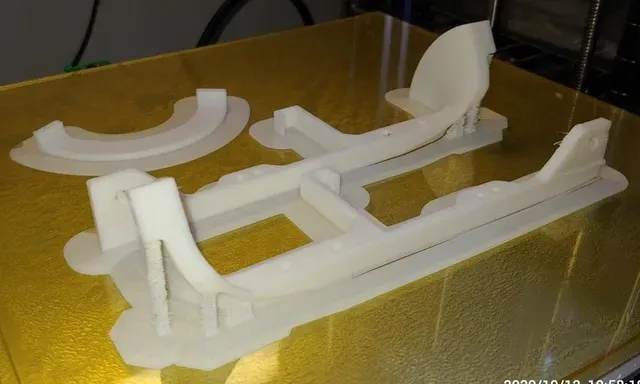

3D print with 20+ BRIM outlines

Category: 3D Printer Accessories
