Sensor for creating a height map with dielectric surface for CNC3018 machine

Platform: Printables
Price: Free
License: CC-BY; Print, modify and use commercially — credit the author.
Formats: STL

2 Likes
10 Downloads
0 Makes
0 Comments
283 Views

Author:alien hitman

Published 2022-07-18

Download on

Printables

Description

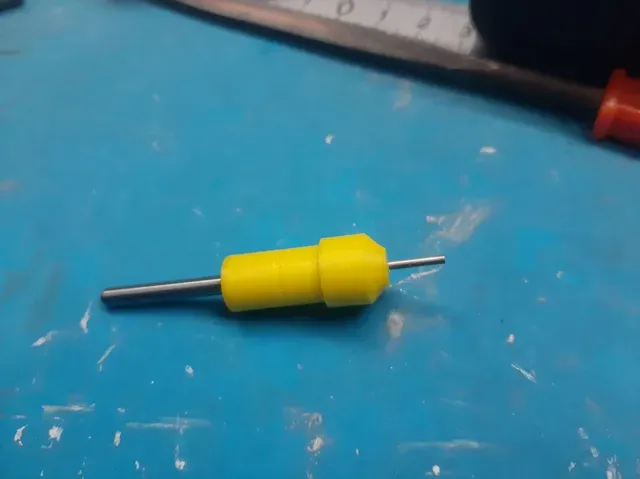

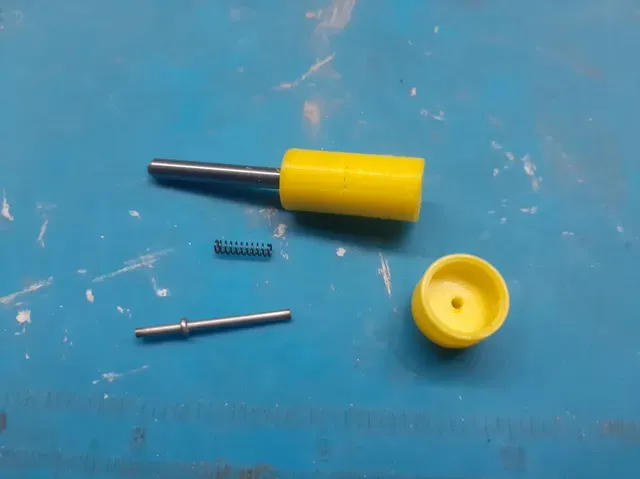

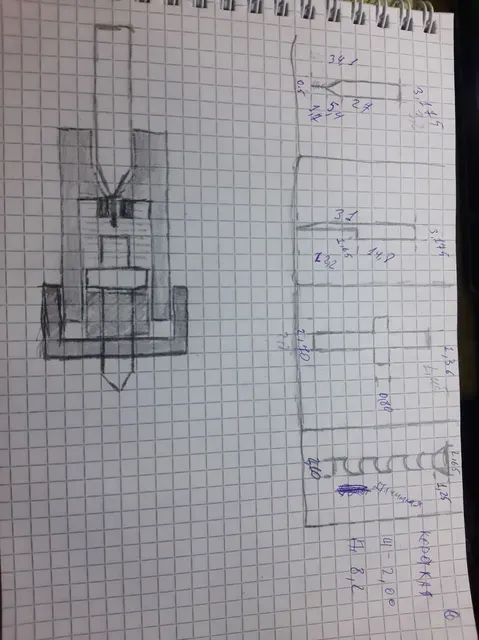

to create you will need a used or broken cutter for a collet 3.175mm, with a tail length of at least 1mm (in my case, this is a 0.5mm corn cutter of which 1.7mm is left). spring and ejector pin from the CD or DVD drive of the old laptop and straight hands.

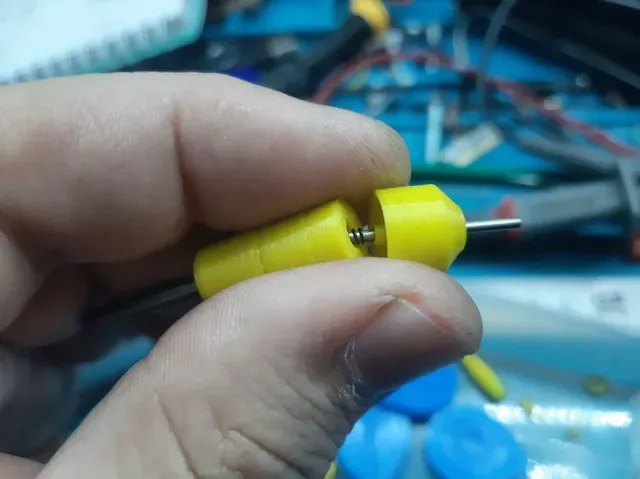

Also, to adjust the stiffness of the spring you have selected, you may need a bushing, it can of course be built from improvised means, but I preferred to print it as well, it is in the download files

According to the test results, the error does not exceed 0.0106mm.

Printed with a 0.2mm nozzle

layer height 0.1mm

speed 15mm / s

filling 100%

material PET-G

P.S. Created by CNC3018

Category: Machine Tools
