Heltec Meshtastic case

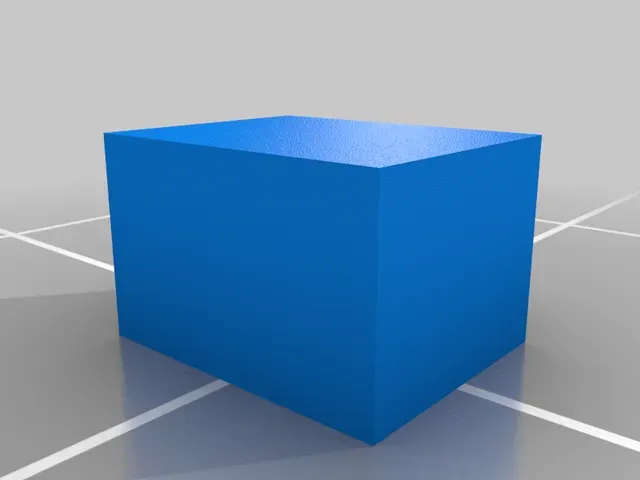

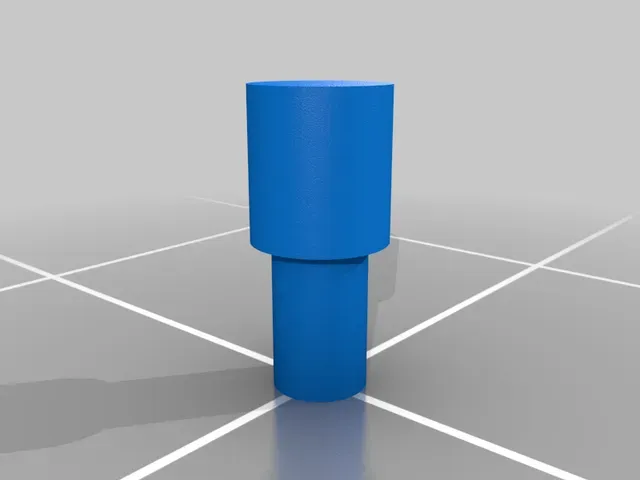

Update 11/27/21 - Added a V2 body and buttons. Made the buttons separate from the body. Better for durability. Also leaves you with the option of discarding the reset button if needed.

I got these cheap Heltec boards to play around with meshtastic. Don't know what meshtastic is? Check it out at https://meshtastic.org/

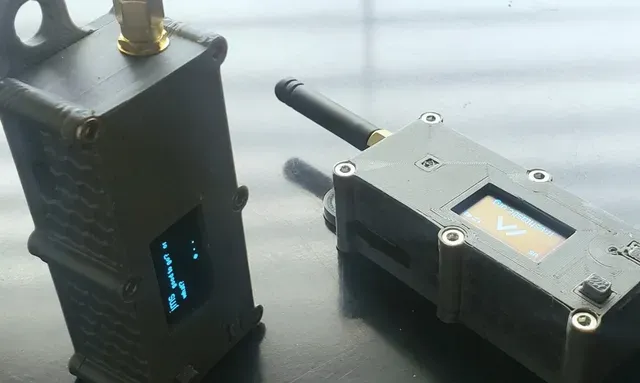

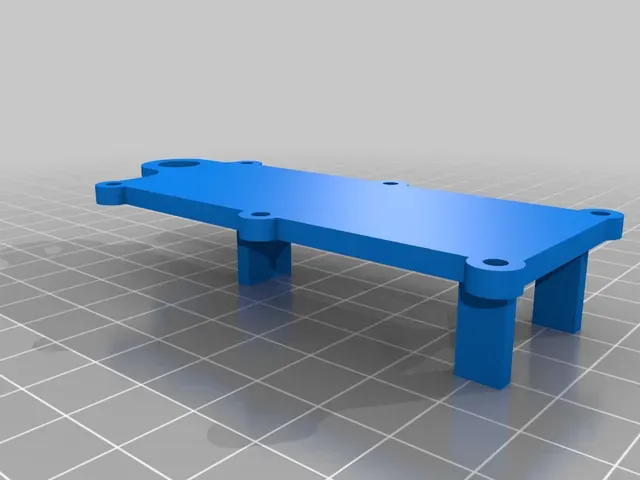

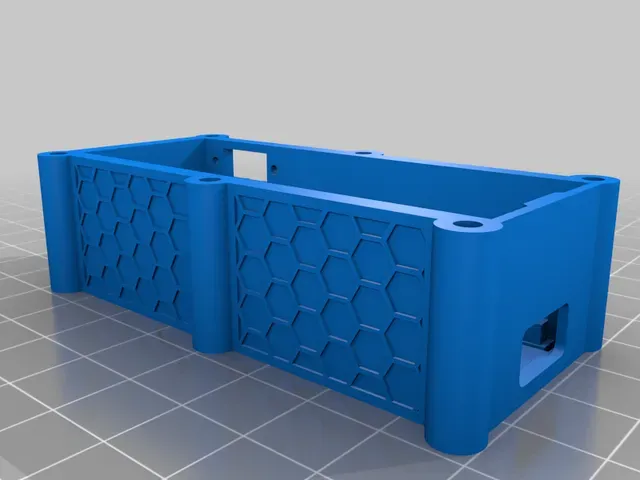

I wanted to make these as compact as possible. I designed this case. It has just enough room for the board and a 1000mAh battery while not pinching the antenna. Also a spot for a switch. I ground the switch down on a grinder so its almost flush with the case to keep from turning it on/off by accident.

The switch I used can be found here. https://www.amazon.com/gp/product/B07Y88C1Q6/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

I also used m3x22mm bolts.

Print Settings

Printer:

hypercube

Notes:

I wanted these to be strong. They are printed with 3 walls and 4 top/bottom layers.

Category: Other
