Camera mounting platform for DELL U2412 monitor with inset - 2 unit width

Camera mounting plaftorm for DELL U24212 monitor. This is 2U width (30 mm) version. It requires 1/4-20 brass inset.

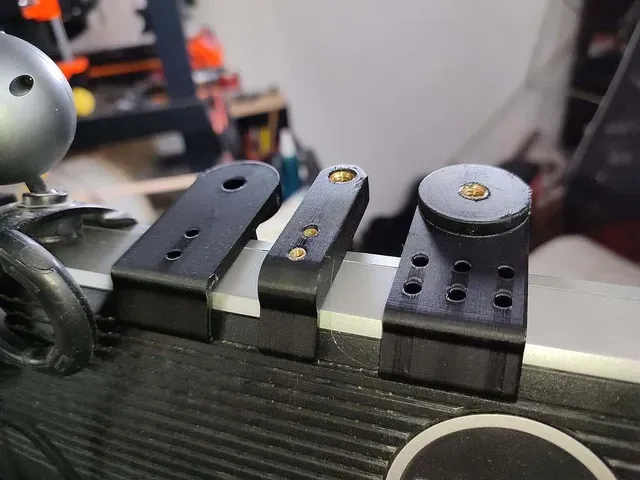

Snaps on top of the monitor. It is quite strong not easy to detach.

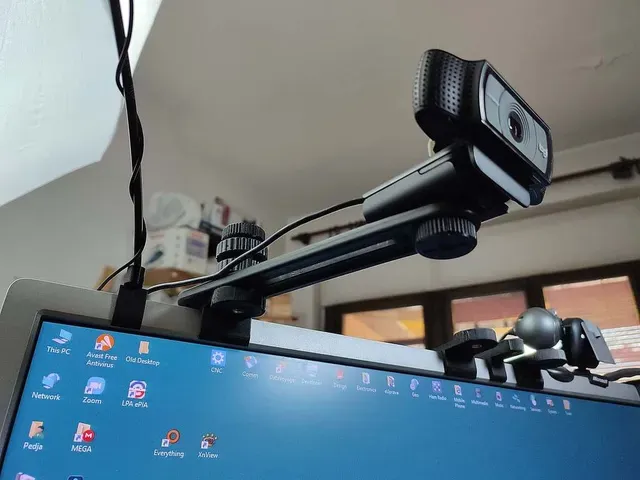

As this mount contains 1/4-20 brass inset, camera mounts with additional 1/4-20 screw. It is usual when using some additional adapter like extending plate or so.

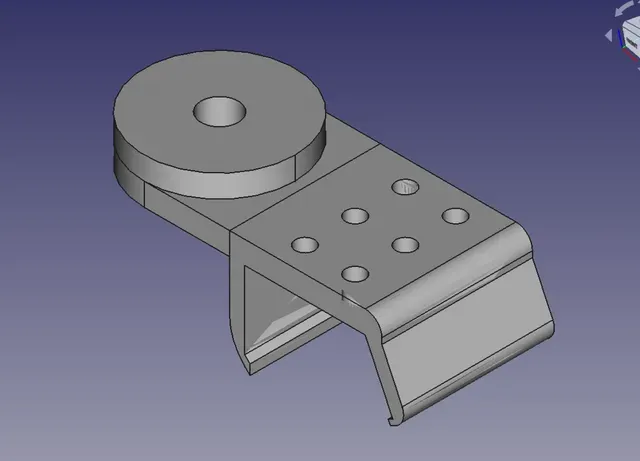

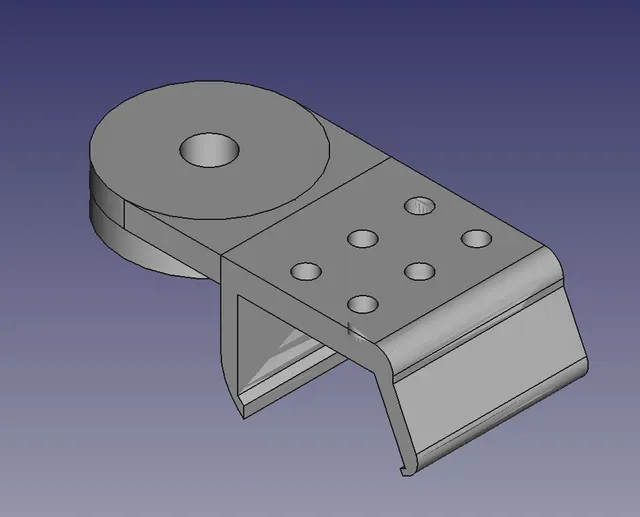

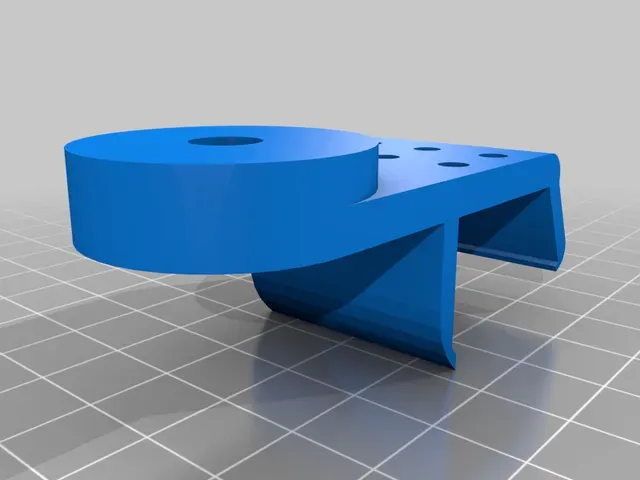

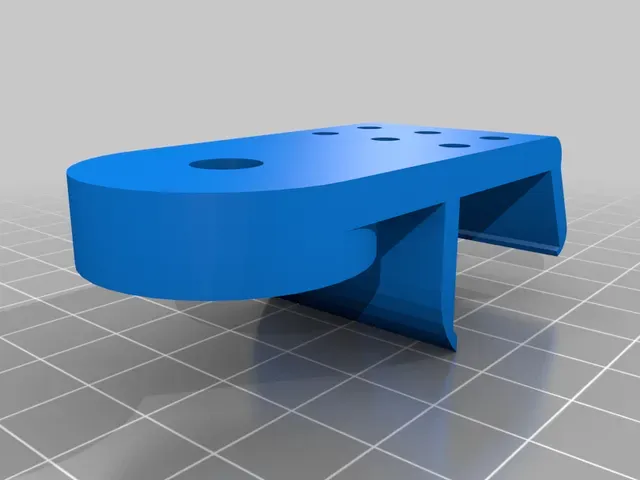

There are two versions of the adapter. One holds brass insert raised above mount and other one lowers it below. which one you would use depends of kind of attachment you need.

1/4-20 brass inset required is 9 mm long and with outer diameter 8 mm.

Base contains six holes for 3mm brass inserts. Holes are spaced 10 mm.

This allows creating adapters for mounting additional stuff, like microphone stand, light mount or else.

Print Settings

Printer Brand:

Prusa

Printer: I3 MK3S

Rafts:

Doesn't Matter

Supports: Yes

Resolution:

0.3

Infill: 60%

Filament: any PETG any

Notes:

Print sideways to get stronger body. Some supports are needed to get better shaped oval face.

Category: Camera
