E3D Revo Micro for Prusa MK3 B&B

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STEP
  • 7 Likes
  • 16 Downloads
  • 0 Makes
  • 1 Comments
  • 527 Views

Author:Frog

Published

Download on Printables

Description

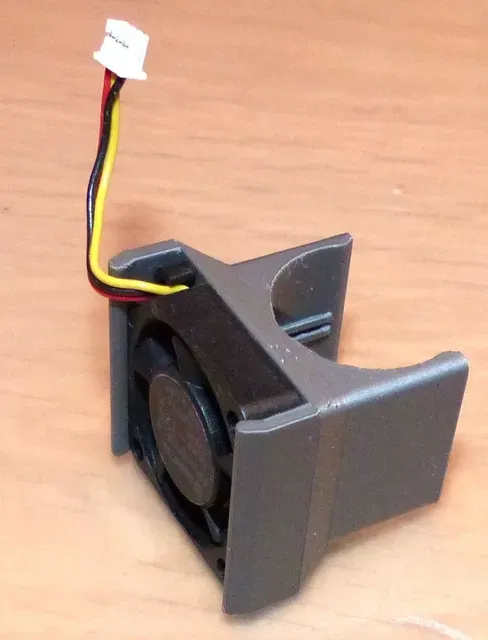

02.04.2022: Adapted my design for the use of a 3-wire 25x25x6mm hotend fan. A 3-wire fan is compatible with the Prusa MK3-firmware. The original Revo Micro fan delivered by E3D has only 2 wires and I couldn't find a 3-wire 20x20x10 fan with enough air volume (>1.9 CFM) so I adapted the fan-holder for a 25x25x6mm fan.

You can use following Sunon types:

- MF25060V1-1000U-H99 (also Q und S-types) - KD0502PEB1-8 You should check that the fan is a 5V, 25x25x6mm, 3-wire PWM-model with at least 1.9 CFM.

Dies ist ein Remix von: Bunny and Bear Geared MK3 Extruder https://www.thingiverse.com/thing:3560341

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK3

Rafts:

No

Category: 3D Printer Extruders

Tags

prusai3mk3thingiversedirectdriveextrudere3drevobunnyandbear
