Triple & quadruple gravity broom holder + gear for smaller diameter broom sticks

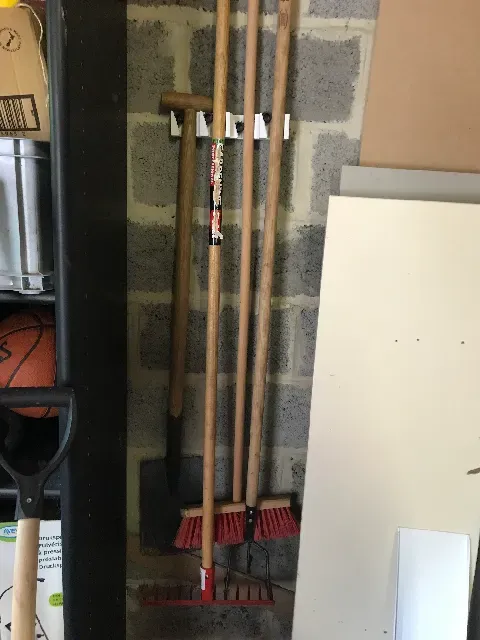

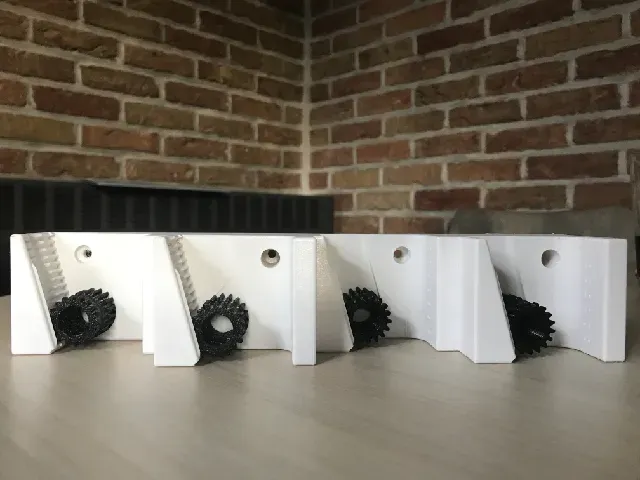

A remix of LoboCNC's Gravity Broom Holder , integrating 3 and 4 holders within a single block. For compact storage of multiple brooms or other tools, requiring fewer screws for mounting on the wall. Adjacent holders have been slightly offset to reduce interference of tools.

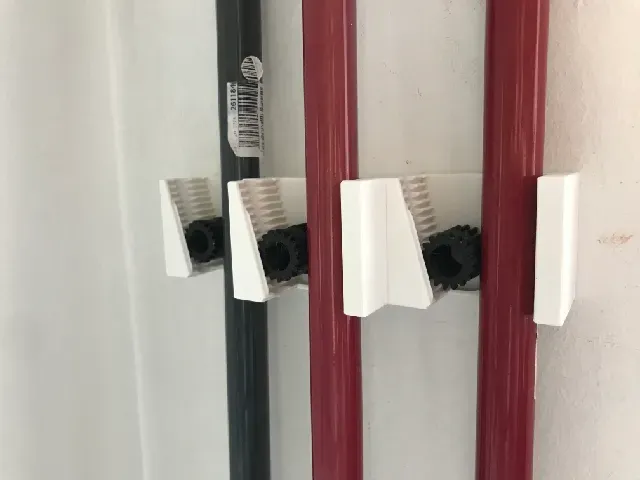

Also included is a modified gear to clamp tools with sticks with a smaller diameter in the same holder. These are used in the photo showing the triple holder in use.

These models were made entirely in PrusaSlicer, starting from LoboCNC's original STLs. Especially the gear is a little bit of a hack, but this doesn't show in the resulting print.

Note: the provided .3mf files load well in PrusaSlicer, but the negative volumes don't load correctly in other slicers. I have made .stl versions in Fusion 360 which should load correctly in any slicer. So please use the stl files if you do not use Prusaslicer.

I printed this in PETG, without supports and using PrusaSlicer's default settings. The model with 4 holders must be rotated to fit on the print bed of the MK3s+, see the attached photo.

Let me know if you like it! :-)
