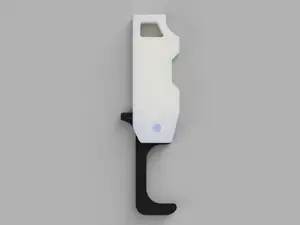

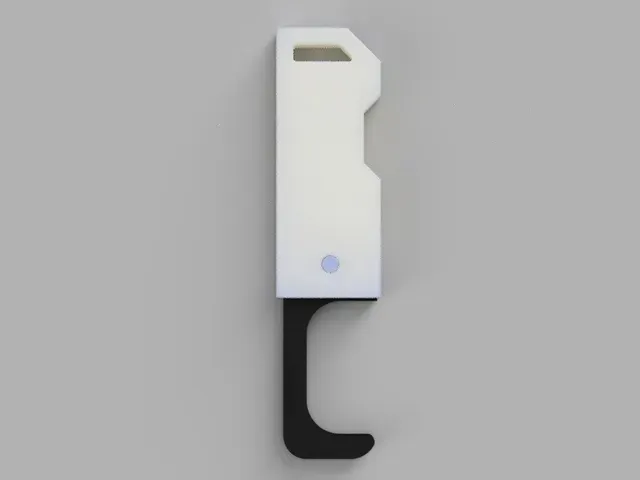

Door hook, button presser with enclosure MK1 (No touching tool)

Updated version MK2: https://www.prusaprinters.org/prints/26725-door-hook-button-presser-with-enclosure-mk2-no-tou

Many of the other no touching tools do not have any type of enclosure which we will touch it with our hands or clothes eventually. Even those with an enclosure, it is a separate enclosure so it is not as convenient. This design is inspired by the army knife design where you could pull the hook out and store it without a separate enclosure!

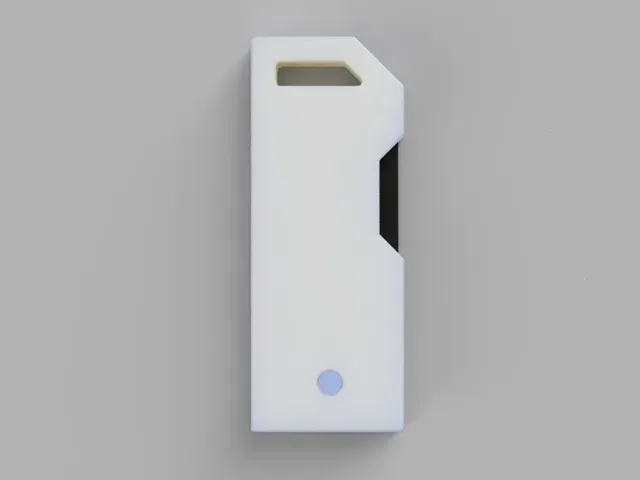

Another main point of my design is that it would lock in place when opened or closed so it would not accidentally wobble or slide out of place. (There is a slight click when fully opened and closed, which is a bit satisfying, but don't fidget with it after using it in public!)

It could also act as a keychain or just put it in your pocket when going out.

Print instructions

G-Code is provided for MK3S printers

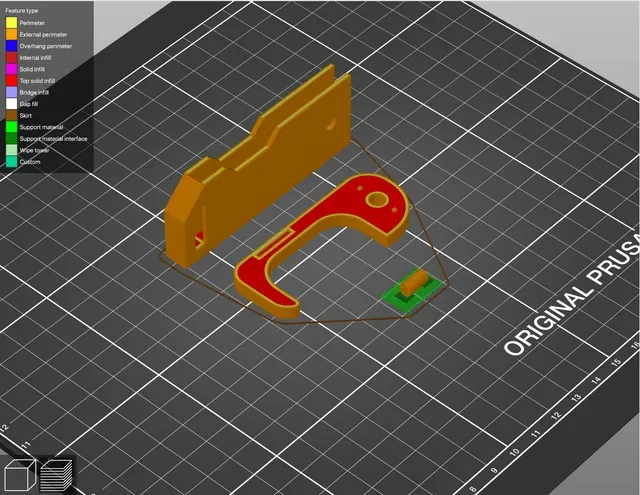

Model orientation when printing is shown on the provided pictures

The shaft is printed horizontally to increase strength

Around 2 hours of print time

Print settings:

0.15mm

15% infill

3 perimeters

Support on build plate only (for the horizontal shaft)
