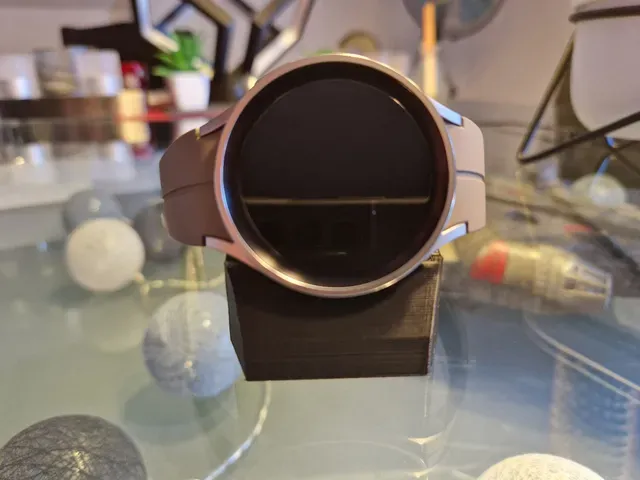

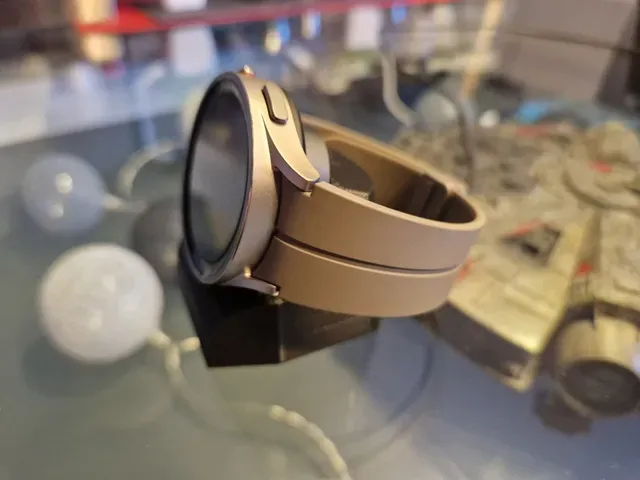

Samsung Galaxy Watch5 Pro Charging Stand Cradle

Since the new charging puck not only features USB-C instead of USB A plug, 10W instead of 5W (if connected to a PD capable USB-C charger) but also a smaller footprint / diameter, I had the choice to stuff some sort of thick glue tape inbetween or fill it up otherwise or to design a new stand (or base it off an existing one - which I did: thanks Stefan042 and JSC, https://cults3d.com/de/modell-3d/gadget/samsung-galaxy-watch4-charging-dock ) ...

Well, introduction aside, this is new:

- adjusted to fit the Watch5 Pro

- not multi-part anymore

- cable tunnel in the bottom

- more polygonal shape

- click-in puck design (depends heavily on your printer/print settings/filament though), hot glue worked fine with the Watch4 stand btw, any type of even extra strong double sided tape did not...

The "edgy" design is more polygonal, basically I tried to create a smaller print but also to prevent my Cura 5.1 slicer to place the z seam in the front due to the rounded back.

In hindsight I should have tried to modify the Fusion file, instead I cobbled it up in 3D builder. Meh ;)
