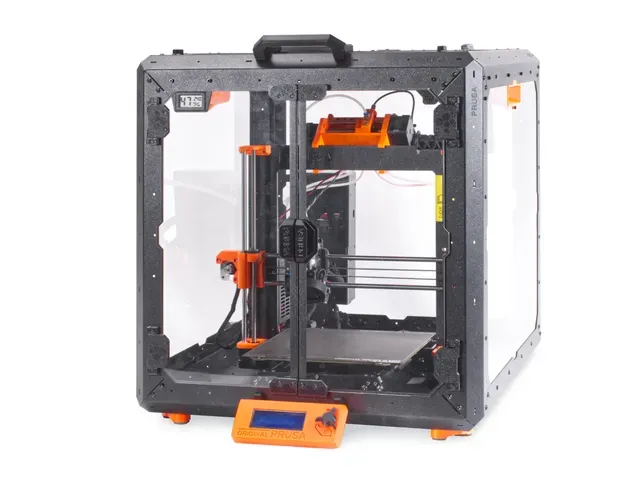

Hinged lid for adding MMU2S to Original Prusa Enclosure

Printable accessory for Original Prusa Enclosure developed to enable access from the top. Can be used for a standalone printer or for a printer with a multi-material unit on the frame.

Check the step-by-step guide on how to install the Hinged lid .

In case you want to use the Hinged Lid without the MMU you can use Hinged-Lid-Complete_0.3mm_PETG_MK3S_5h58m.gcode or you can turn off MMU-grommet in the 3mf file

In case you want to use the Hinged Lid with Advanced Filtration System you need to print Hinge-bracket-Rt instead of Hinge-bracket-R

To mount the Hinged lid you will need the following fasteners*:

- M3x8 screw (15x) - M3nS nut (1x) - M3 nut (8x) - Pin 3x20 (2x) * The package of the Original Prusa Enclosure includes extra fasteners, which were added in case you wanted to install the Hinged Lid.

Print instructions

You have three options:

- use the pre-sliced G-code and print it on your MK3S+ - use .3mf file for accurate setting of perimeters and supports - download the latest PrusaSlicer and use the following settings**: - print settings: 0.30mm DRAFT - filament: PETG (tested on Prusament) - 20% grid infill - minimum of 8 perimeters - turn on thin wall detection ** Note that this setting is the minimum possible due to the strength of the parts, but you can experiment with your own settings.
