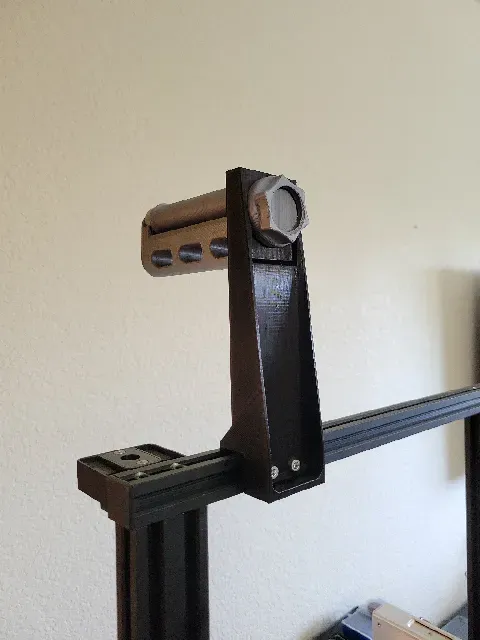

Filament Spool Support

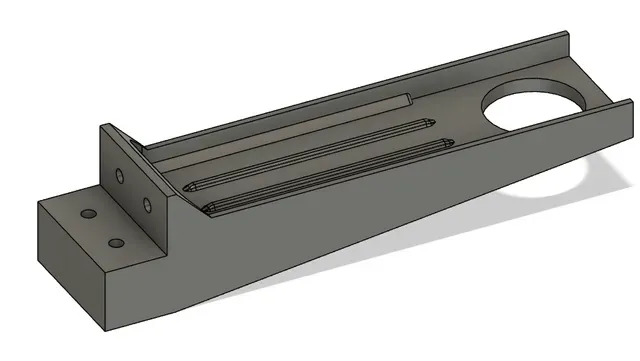

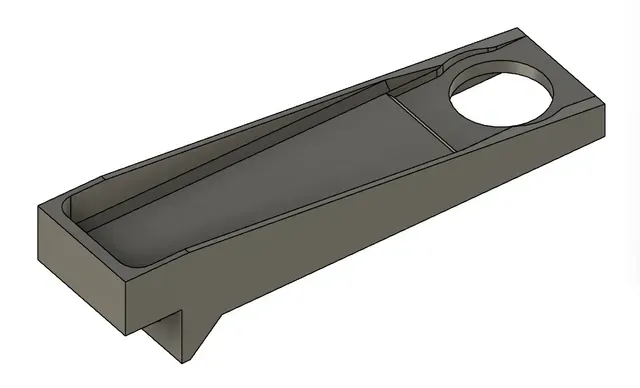

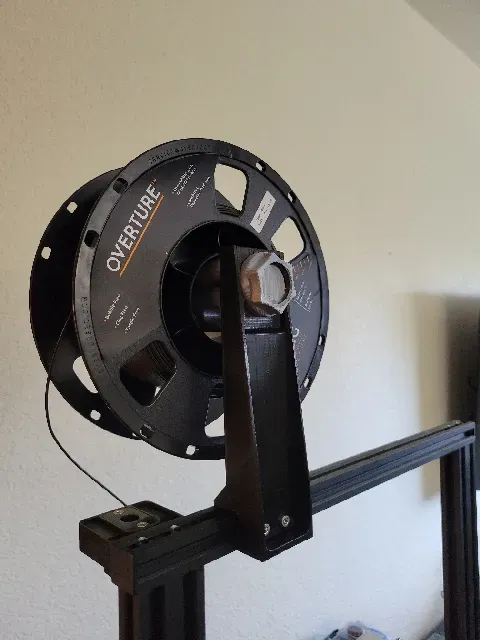

Spool support to relocate spool on top of printer. This is designed to assemble with 20/20 aluminum extrusion (~0.8").

Works alongside this assembly from Thingiverse:

https://www.thingiverse.com/thing:3209211

I have used this roller system on several printers for quite a while and am very happy with it. The main motivation for this modification is to reduce bench space by relocating the spool on top of the printer.

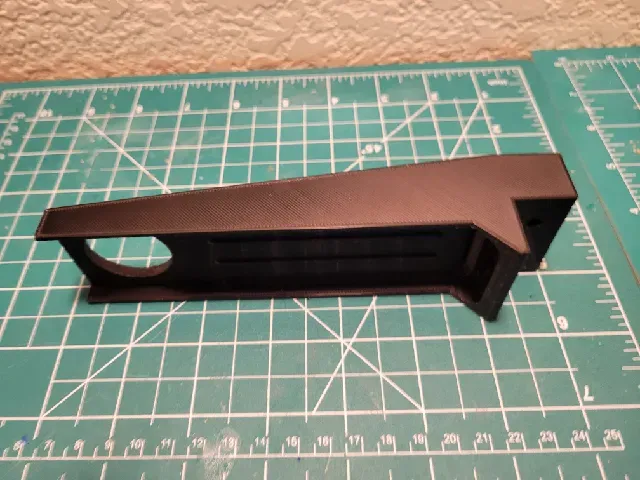

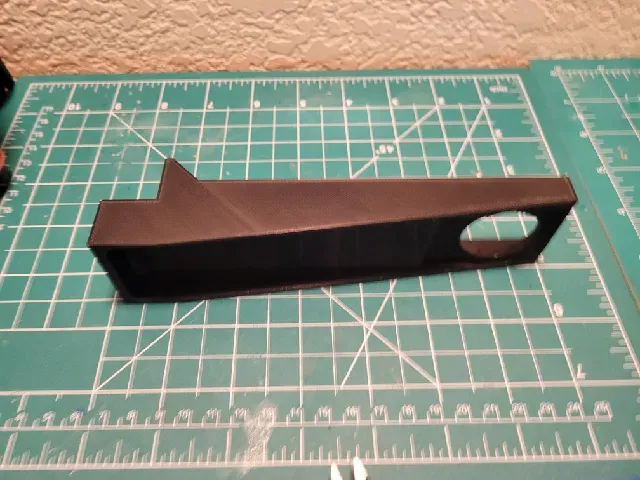

Printed with 2 walls, 20% infill, PETG, with supports, and the part is very strong.

Assembling the T-nuts/bolts was a bit tricky, but just start with the front face and then do the top face.

Hardware:

4 x M4 T-Nut

4 x M4 x 12mm Bolt
