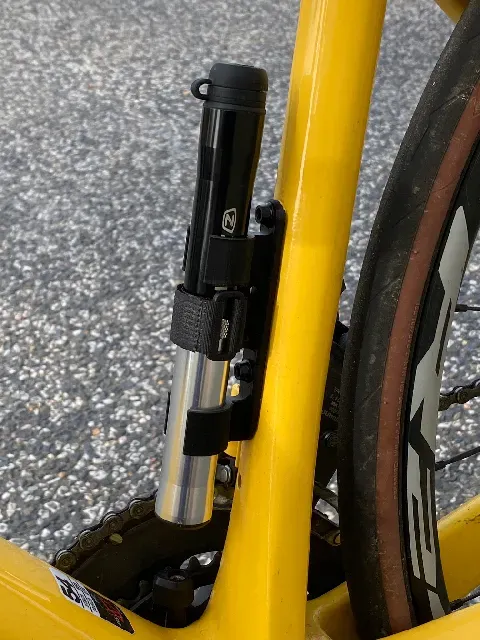

Bike pump frame clip - straight mount (not offset)

Frame-mountable clip for bike pump, designed to mount straight to bidon mounting points, not flush behind bidon carrier. Suits 22mm diameter pumps.

I only use one bottle cage, but both my mini-pumps only came with offset mount clips that are designed to go under cage mounts, therefore sticking out to the side of the frame. I wanted improved aerodynamics and aesthetics.

The mount has screw holes placed to make the clip lower on the frame, but the clip could also be mounted upside down.

The mount has a radius of 32mm on the back assuming that it will be mounted to the seat tube. It can be printed with supports. If you need to mount to a flat surface, just leave supports in place.

I suggest printing it flat on the bed with tree supports. There will be some separation required later, but in my experience it came out pretty clean.

If you wish to view or remix/resize the design, here it is:

https://cad.onshape.com/documents/89cac0fc1ba5ef0846f4ed0a/w/113703cd19302ba096aa04f0/e/2bb8933001c31bb354cddb5c

The design is intended to be used with a velcro tie strap which is standard with the mounts that come with many mini pumps. The clip holds the pump strongly enough to be used without the velcro tie.
