3D model · Printables

45° tapered elbow vacuum hose adapters for all common sizes

Platform: Printables
Price: Free
License: CC-BY-NC; Print and modify for yourself with credit; no selling the model or prints.
Formats: STL

69 Likes
462 Downloads
0 Makes
0 Comments
1 861 Views

Author:Max

Published 2022-09-28

Download on Printables

Description

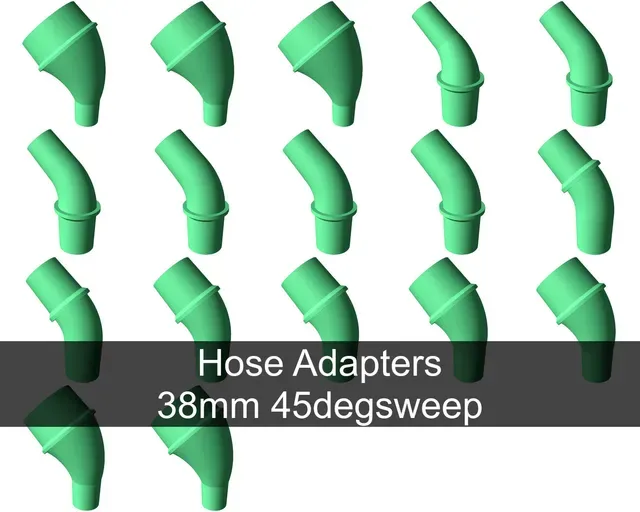

Hose adapters with a 45deg bend smooth transition for all common (at least what I could find online) hose sizes.

All adapters have:

- Sizes are for the inside of the hose (outside of the adapter) - 40mm long connector at each end - 3mm taper on each connector, from -1.5 to +1.5 - Wall thickness of 2mm - A hose stop on the large end Also generated are:

- Straight hose adapters - 30° elbow hose adapters - 30° tapered elbow hose adapters - 45° elbow hose adapters - 45° tapered elbow hose adapters - 90° elbow hose adapters - 90° tapered elbow hose adapters - 100mm magnetic hose connectors - 50mm magnetic hose connectors These were generated to make it easier to consume, if they don't suit however you can use the Parametric model to customise your own, or let me know and I can generate it.

Project homepage https://github.com/ostat/vacuum-hose-adapter-openscad

edit 2022-10-04

Updated models as there was a bug in the OpenScad script that would produce invalid tapers for some transitions.
