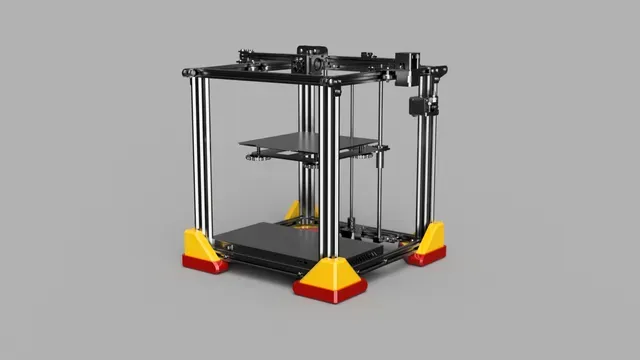

Ender 5 Riser Feet 30mm PLA+TPU

Platform: Printables
Price: Free
License: CC-BY-NC-SA; Non-commercial use only, with credit; share remixes under the same license.
Formats: STL

14 Likes
100 Downloads
0 Makes
2 Comments
852 Views

Author:George

Published 2022-10-03

Download on

Printables

Description

BENEFITS

- printer is more stable and less vibrations - bigger z stepper motor or lower the motor to gain 20+mm - more space for a bigger psu/mcu fan - could be used with or without TPU parts

PARTS

PLA/PETG

3-4 perimeters, 20-30 infill. The heavier it is, the more stable the printer is. No supports needed if you print in current orientation (with holes on a vertical wall - see bellow).

foot_normal.stl - you can print a set of 4 foot_cables.stl - If you route your cables on back-right profile

TPU/FLEX

3-4 perimeters, 20-30 infill depends on your TPU flexibility. No supports needed if you print in current orientation (with the tip up - see bellow).

base_normal.stl - you can print a set of 4 base_cables.stl - If you route your cables on back-right profile

BOM - for one foot

- 2 x M5x20mm Hex Socket Head Screws - 2 x M5 t-nuts Disadvantage: you will need to relocate the display - but this could be a very fun side project :)
