M4 Wing nut / Butterfly nut | M4 nut insertion

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
STL
  • 11 Likes
  • 169 Downloads
  • 3 Makes
  • 3 Comments
  • 881 Views

Author:Raschmaschine

Published

Download on Printables

Description

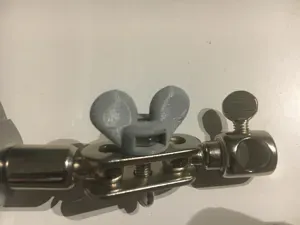

This guy lets a regular M4 nut become a wing nut / butterfly nut for various applications. Simply push the metal M4 nut into the side slot. Should fit tightly.

Prints with no supports. The output shown in the featured image is at 0.10 mm PLA with 3 perimeters and 100% concentric infill but 0.20 mm with at least 3 perimeters and 15% infill should do in order not to break anything when tightening.

Fun fact: This design is not related to Disney in any kind =D

Tags

nutscrewwingnutinsertm4nutm4screwsbutterflynut
