Gridfinity tool holder collection

This is a collection of tool holders for the Gridfinity system (42mm grid). All holders have the same height: 32 mm.

The holders are designed to be put into a 7cm high drawer .

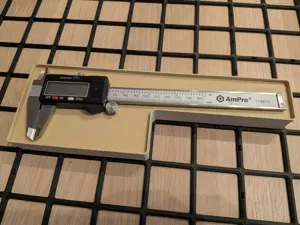

Space saving was a priority : The tools are put into the holders vertically if at all possible. Note for example the tilted caliper holder; tilting it was the only way to squeeze it into a single grid while staying within the 7cm drawer height.

I also included the FreeCAD source files , so you can edit them on your own without any proprietary software. Please share the models if you make your own.

If you are in the EU and want to support my work, I can also print and send these models to you. Please contact me for an offer in that case. Or you can support me by buying something from my shop .
