Ozone generator box - laser cut

Model details

Platform
Printables
Price
Free
License
CC-BY-NC-SA
Non-commercial use only, with credit; share remixes under the same license.
Formats
SVG
  • 6 Likes
  • 66 Downloads
  • 0 Makes
  • 0 Comments
  • 1 266 Views

Author:samgozman

Published

Download on Printables

Description

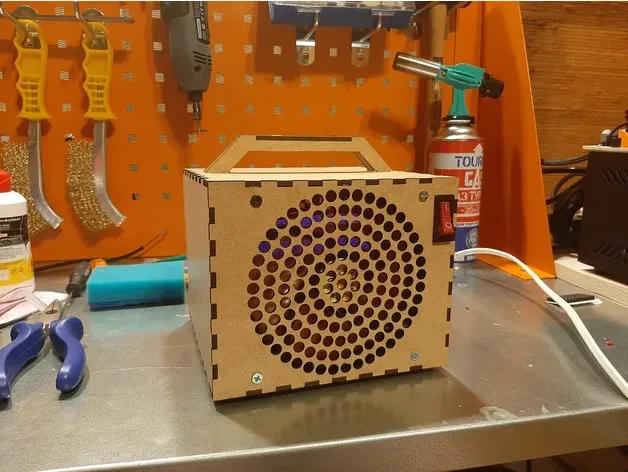

Lasercut ozone generator.

Designed for 3mm plywood or MDF/HDF. Red - cut.

I made this device for servicing the room where I do laser cutting. The ozone generator helps me cope with the odors of formaldehydes, which are found in most adhesives used in plywood and MDF.

BOM:

- 1x Basic ozone generator unit: http://ali.pub/4gko3p

- 2x cheap 120mm PC case coolers

- 1x AC/DC converter to 12V. I've used PSU from broken wi-fi router.

- 1x power switch button IRS-101-3C3-R/B

- 8x fan mount screws

- 2x m4/m5 25mm screw & nut for generator mounting

power cord

BE AWARE! Ozone can be harmful in big concentrations!

Do not turn on the device for more than 15 minutes and always ventilate the room after using it. Do not allow people or animals to stay in the room when the generator is running.
