C5 Corvette Under Hood Light Cover

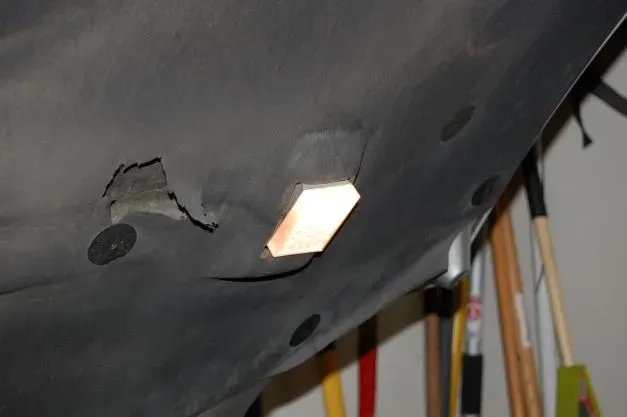

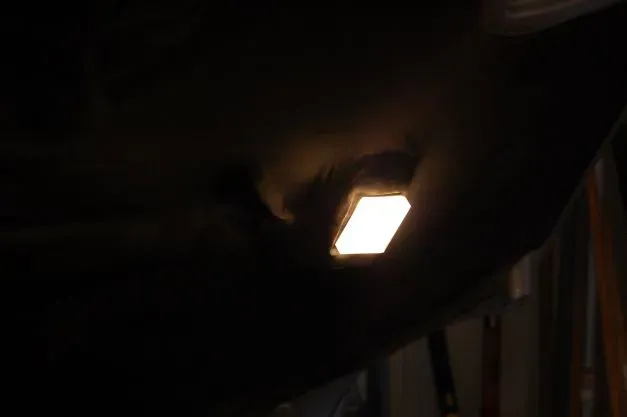

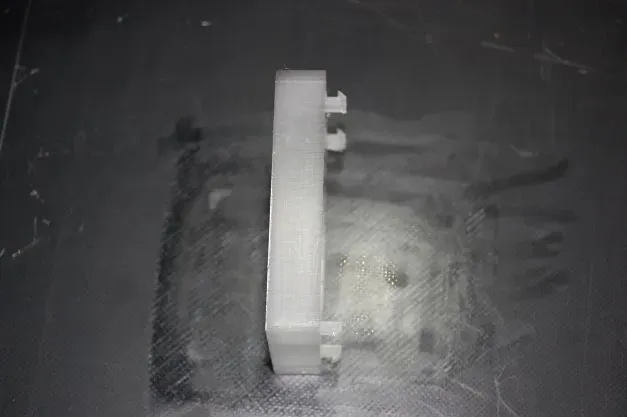

This is a replacement lens for the 1997 - 2004 C5 Corvette under hood light. It is not an exact replacement, but it fits fine. It prints in a couple hours. Went through a few revisions before getting it perfect. Version 3 is now uploaded with 1 and 2 deleted. Version 2 seemed to fit fine but it came off. It may have been due to it being too hot under the hood for PETG. Version 3 the tabs are .1mm thinner and .1mm shorter. This one was printed using PolyLite Transparent Poly Carbonate. Took it out for a 30 mile drive today and it was still attached when I got back. This one is the keeper. Hope this helps someone else.

Small history: 11/6 - version 2 uploaded. It has thin holes instead of through holes. Cleaned up the edges a bit too. It may not be as bright, but it is more waterproof and adding the mylar is not needed. 11/19 - Version 3 uploaded. Version 1 and 2 removed.

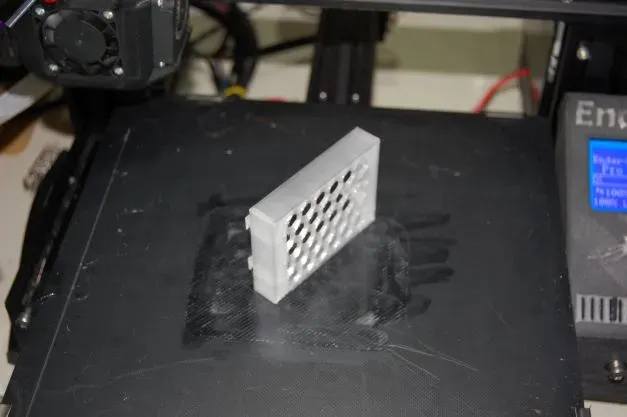

Print Settings

Printer:

Tenlog TL-D3 Pro

Rafts: Yes

Supports: Yes

Resolution: .2

Infill: 99

Filament brand: Inland

Filament color: Transparent

Filament material: PolyLite PC

Notes:

Supports are only needed for the tabs. I did not try to print without. It may work, not sure. This should print on an Ender 3 pro also. Printing spec's for the PolyLite PC filament: Plate Temperature 90C - 105C Extruder Temperature 250C - 270C
