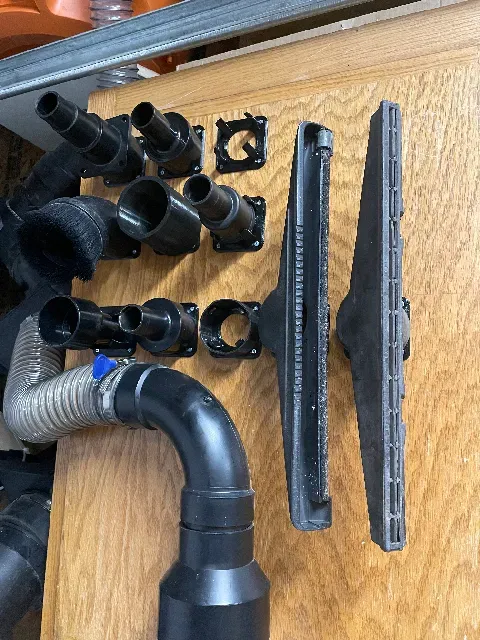

Shop Vac Attachment Mount for 2.5", 1.25", and some 1.875" (1⅞" Ridgid)

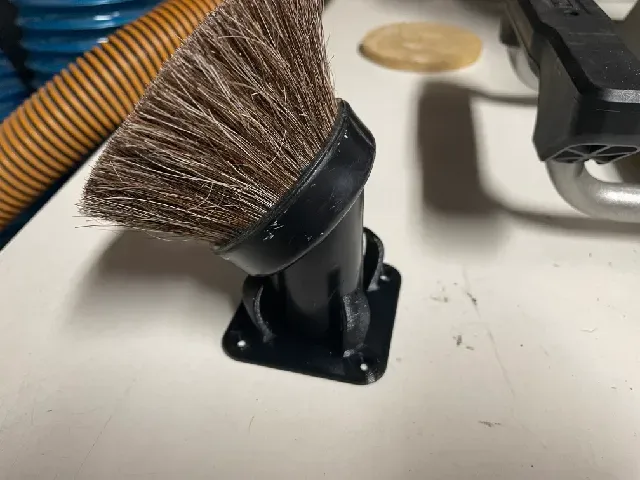

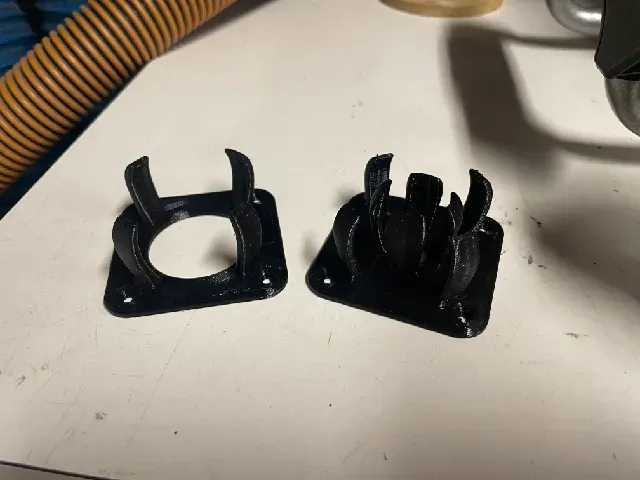

Shop Vac Attachment Mount for 2.5", 1.25", and some 1.875" (1⅞" Ridgid) — Image 2 of 4
Shop Vac Attachment Mount for 2.5", 1.25", and some 1.875" (1⅞" Ridgid) — Image 3 of 4
Shop Vac Attachment Mount for 2.5", 1.25", and some 1.875" (1⅞" Ridgid) — Image 4 of 4
3D model · Printables

Shop Vac Attachment Mount for 2.5", 1.25", and some 1.875" (1⅞" Ridgid)

Model details

Platform
Printables
Price
Free
License
CC-BY-NC
Print and modify for yourself with credit; no selling the model or prints.
Formats
STL3MFGCODE
  • 91 Likes
  • 309 Downloads
  • 4 Makes
  • 6 Comments
  • 2 785 Views

Author:cookiecrook

Published

Download on Printables

Description

PETG recommended for strength and flexibility at 20% infill with 4 perimeters. (Some petals snapped with less infill.) No supports needed.

Mounts horizontal or vertical, including the underside of a shelf or on the ceiling, depending on the weight of the attachment. Use 0.3mm layer height for additional grip.

Single mount that fits most shop vac attachments:

- standard large 2.5" (2½") fits the outer petals - standard small 1.25" (1¼") fits the inner petals - some oddball Ridgid 1.875" (1⅞") will fit inside the outer petals (see last photo) Two model versions:

- First only includes the outer petals (2.5" and some 1.875") - Second version (updated 2022-11-27) includes mounts for all three sizes, but uses more filament.
