Snapmaker 2.0 Linear Rail Guide Adapter
Snapmaker 2.0 Linear Rail Guide Adapter — Image 2 of 4
Snapmaker 2.0 Linear Rail Guide Adapter — Image 3 of 4
Snapmaker 2.0 Linear Rail Guide Adapter — Image 4 of 4
3D model · Printables

Snapmaker 2.0 Linear Rail Guide Adapter

Model details

Platform
Printables
Price
Free
License
CC-BY
Print, modify and use commercially — credit the author.
Formats
STLSTP
  • 12 Likes
  • 78 Downloads
  • 1 Makes
  • 2 Comments
  • 844 Views

Author:3D Nate

Published

Download on Printables

Description

Adapters to connect the Snapmaker bed frame to the linear rail guide supports.

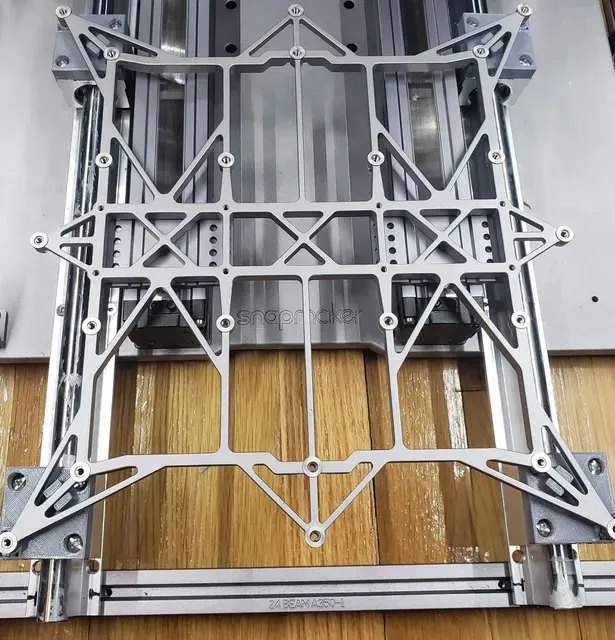

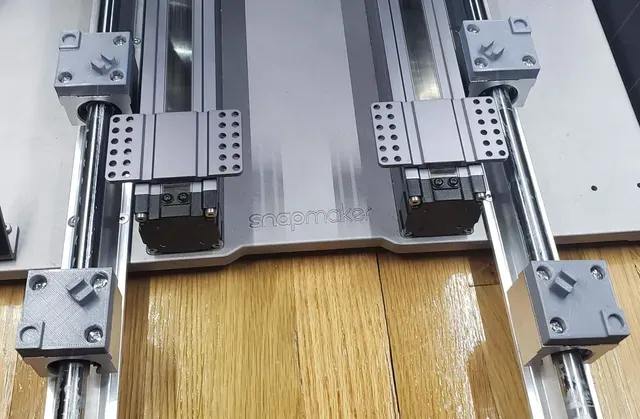

This upgrade adds supports at the front and back corners of the bed frame to prevent bending down during actions at the limits of the Y axis

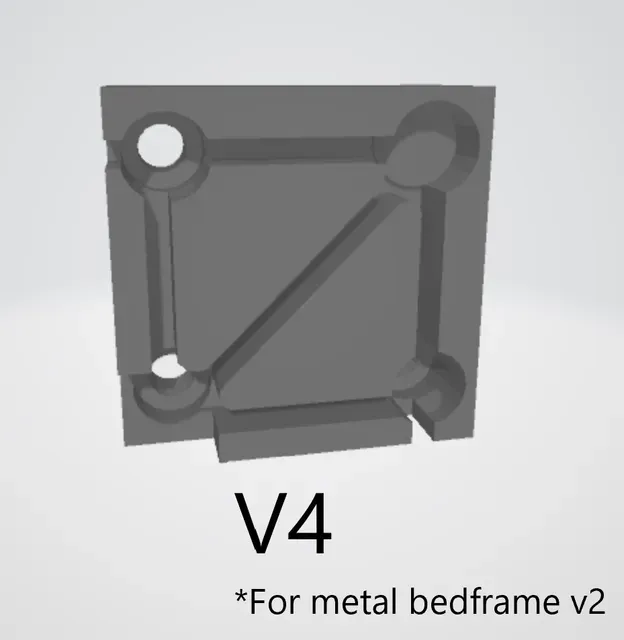

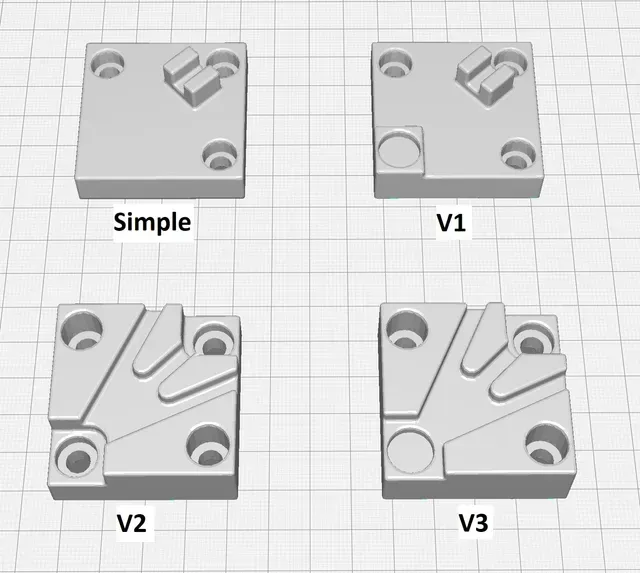

Version 4 will fit the new design for the metal bedframe.

Version 5 will fit the new bed frame with the bracing kit

Holes spacing on the bearings is not square so to prepare this for printing mirror it in your slicer. 1x normal 1x Mirrored about the vertical axis 1x Mirrored about the horizontal axis 1x Mirrored about both the vertical and horizontal axis

Link for the rails used is provided below.

OrangeA SBR Linear Rail 16-800mm https://www.amazon.com/gp/product/B07D9JRPG9/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1
