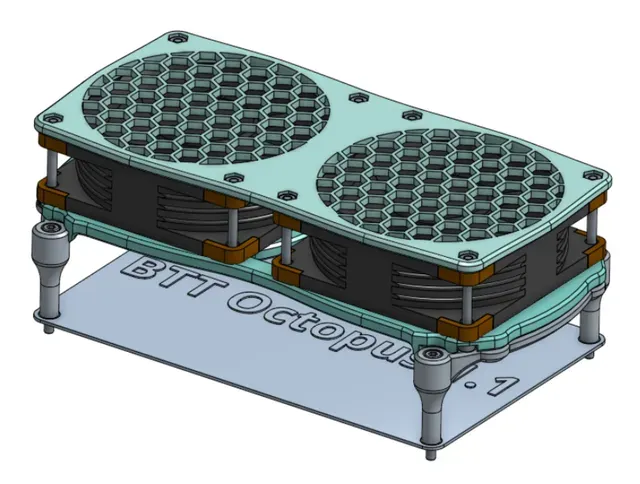

BTT Octopus 2 x 80mm Fan Magnet Mount

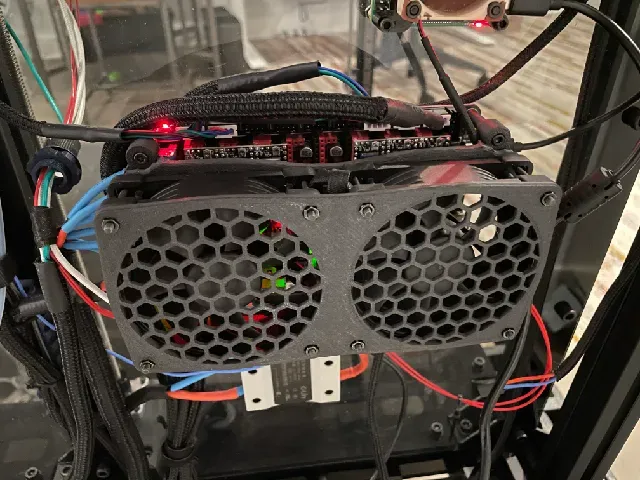

Keep your stepper drivers cool with this overkill solution. Mount 2x 80mm fans over your BTT Octopus 1.1, but they are detachable for fast access to your mainboard.

BOM

Item Quantity Description

M3 x 35 Bolts 4 Attach magnet holder to BTT

M3 x 30 Bolts 8 Attach fans to casing

M3 Nuts 8 Attach fans to casing

⌀ 8mm x 3mm (depth) Magents 8

80mm Fan 2

Super glue - (Optional)

Assembly Instructions

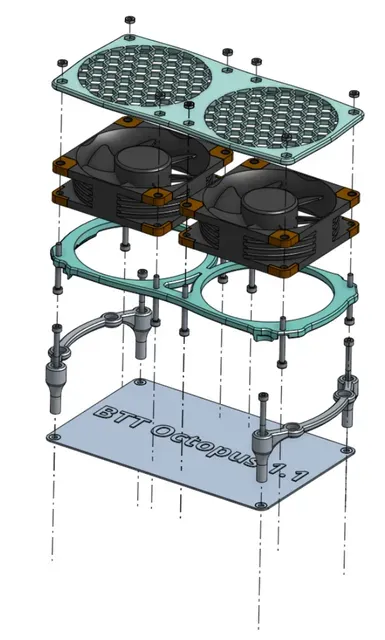

- Insert magnets into base left and right, and the bottom fan casing - may require super glue. - Attach base left and right to BTT octopus board with M3 x 35 screws - Encase 2x 80mm fans with 8 M3 x 30 bolts, mounting through the base casing to the front cover - Secure M3 x 30 buts with M3 nuts on the front cover CAD

Onshape
