Raspberry Pi 4 Case and mount for Ender 3 v2

This is a case for Raspberry Pi 4 that is mounted to ender 3 v2 frame. Probably will fit any ender 3 and similiar printers.

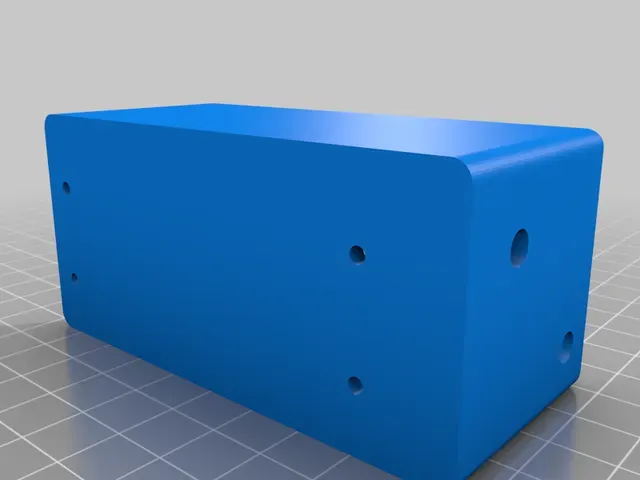

Case will fit the Pi, 40x10 fan with room for little heatsinks. I used 6mm heatsinks. There is not much room left after them so I would not go much bigger so I would say max 8mm heat sinks can be used on top of the cpu. Holes for the fan are designed to accept Noctuas mounting screws that come with their fans. Diameter is 5mm. Power is run through 90 degree adatper so the cable comes nicely out of the back and the max diameter for the cable is 4mm. Assembly is done with m2.5 screws.

What is needed?

x1 USB-C 90 degree to side adapter

x8 m2.5 x 6mm flat base screws to mount the Pi and the case to the Ender mount

x4 m2.5 x 10mm countersunk screws for the top cover

x2 m5 bolts for installing the mount to printer. Original screws from the ender printers can be used

Also depending on the fan you will need mounting equipment for it.

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: No

Resolution:

200

Infill: 20

Filament: Any PLA

Category: 3D Printer Accessories
