Ender 2 Pro Filament Holder - 80mm Spools

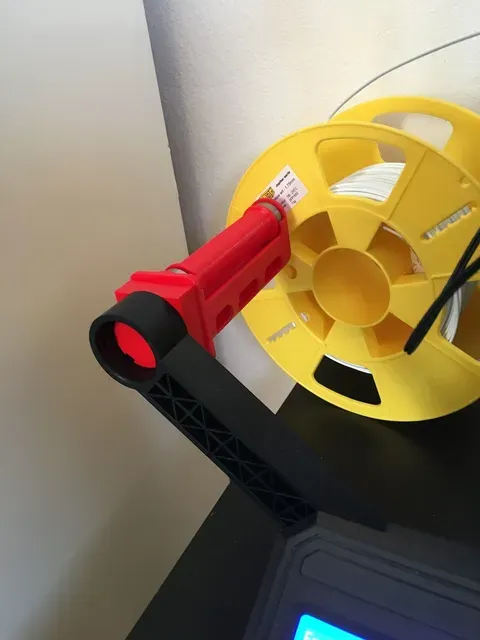

Another remix of a remix of a remix of this classic filament holder . Since the filament on my Ender 3 feeds so buttery smooth, this was the first upgrade I wanted to add to my new Ender 2 Pro. However I couldn't find any remixes specifically for the Ender 2 pro. Afraid I had to do some actual designing work myself I figured this filament holder for the Ender 3 Max had the same connector system, and is has. Except for the fact that the spoolholder on the ender 2 Pro faces backward compared to forward on the 3 Max. And since the connector pins are rotated 90° on this side, the spoolholder faced downward.

To fix this, I just rotated the connector bit 90°, the resulting file is Ender_2Pro_Spool_Roller.stl. And because I'm an impatient man with better things to print than another whole filament roller, I used the female and male spooladapters provided here by chickensaretoobig to create a small adapter to attach the Ender 3 Max holder to my Ender 2 Pro, Ender_3_max_to_ender_2_pro_adapter.stl.

As with all previous designs of this filament roller you need two 608 bearings.

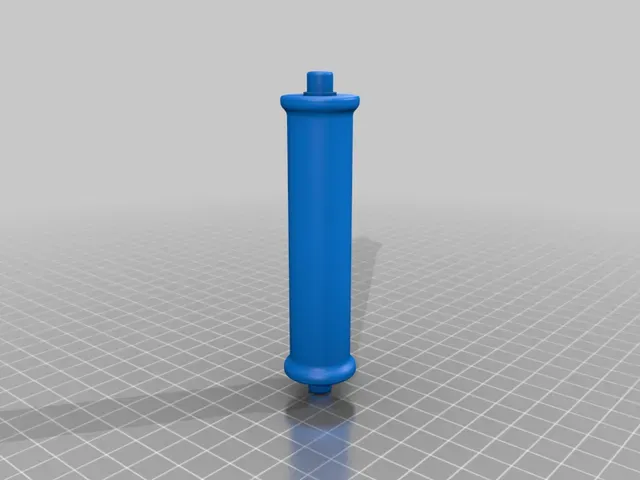

I added the roller that comes with the remix for ease of downloading/printing but all credits go to the original creator(s).

Print Settings

Printer Brand:

Creality

Printer: Ender 2

Rafts:

Doesn't Matter

Supports: Yes

Resolution:

.12

Infill: 30

Filament: 123-3D home brand PLA Red

Category: 3D Printer Accessories
