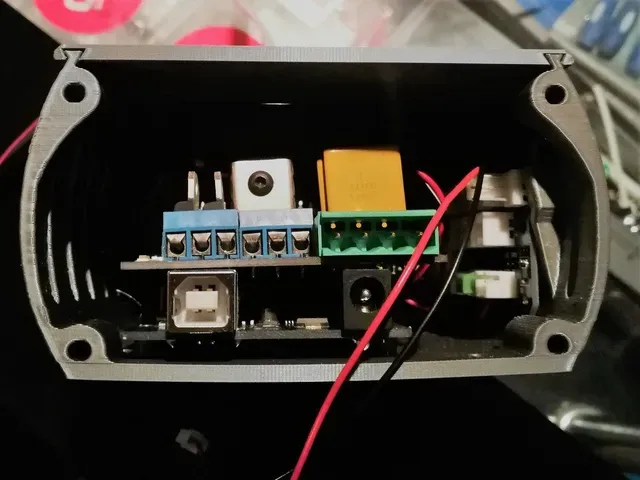

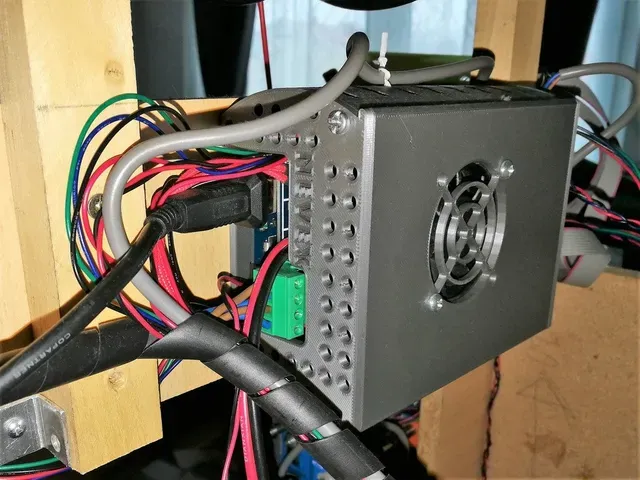

RAMPS ENCLOSURE

This is my version of Ramps enclosure.

It has some features that I wanted and could find:

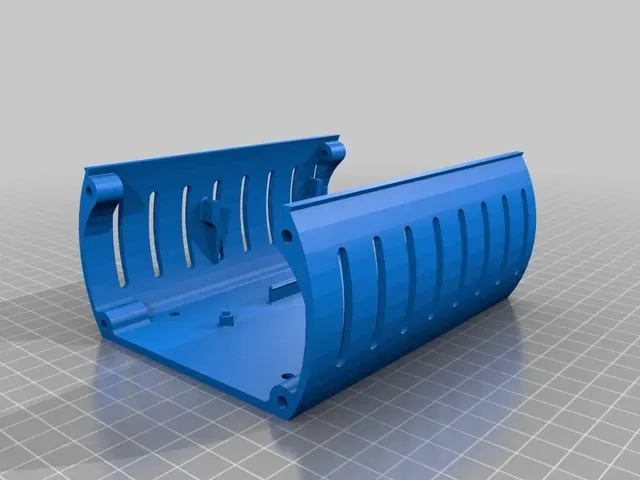

- a lot of vents for cooling

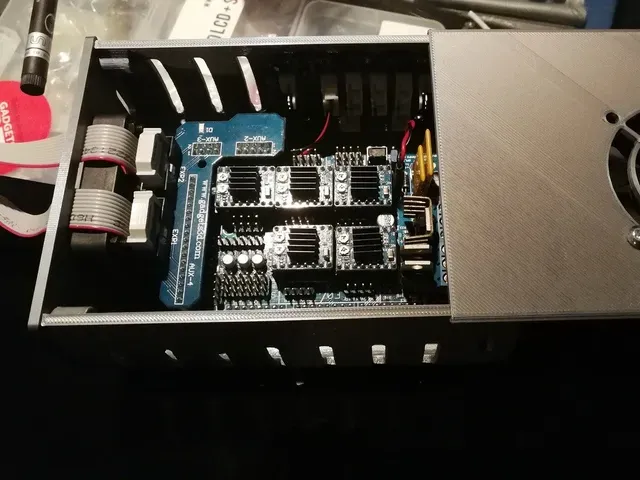

- 2 fans: one that blows air on top of motor drivers and one that is longitudinal to the Ramps board

- enough space on the left and right to put all cables and wires

- wiring can be tied up with a wire or zip tie on the enclosure

- additional space to put my fan splitter from Gadgets3D that I had when I bought this kit (a long time ago)

- hooks and holes to fix the Arduino board to the bottom of the frame

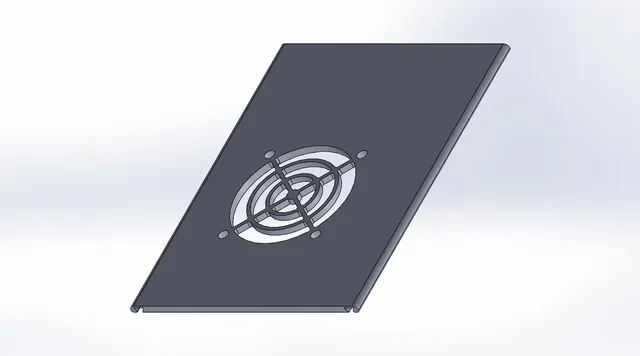

- dovetail style cover that slides from the side and it's fixed with the front and back cover

If have any question or comment, please feel free to share it with me.

Happy printing :)

Print instructions

Category: 3D Printer Parts Summary

This is my version of Ramps enclosure.

It has some features that I wanted and could find:

- a lot of vents for cooling

- 2 fans: one that blows air on top of motor drivers and one that is longitudinal to the Ramps board

- enough space on the left and right to put all cables and wires

- wiring can be tied up with a wire or zip tie on the enclosure

- additional space to put my fan splitter from Gadgets3D that I had when I bought this kit (a long time ago)

- hooks and holes to fix the Arduino board to the bottom of the frame

- dovetail style cover that slides from the side and it's fixed with the front and back cover

If have any question or comment, please feel free to share it with me.

Happy printing :)

Print Settings

Printer Brand: Prusa

Printer: i3 MK2S

Rafts: Doesn't Matter

Supports: Doesn't Matter

Resolution: 0,2mm

Infill: 15-17%

Notes:

It's designed in a way to avoid using supports.
