Tronxy X5SA Pro - Brush Holder for nozzle cleaning

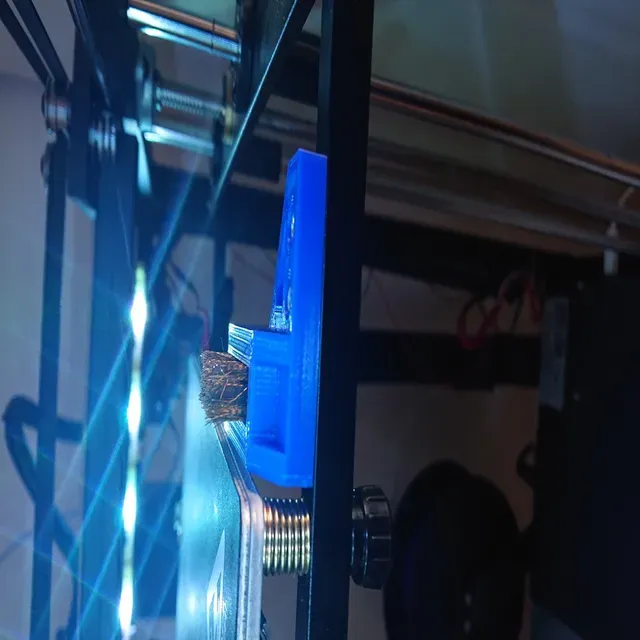

This is a wire brush holder for an Tronxy X5SA Pro. Using a custom start script in your slicer software will let you clean the ooze from your nozzle before each print starts. you must cutoff the head of the brush

At my tronxy i can put the max XMax-way to 350MM without a crashing. this is necessary to use the brush

the brush ist like this one:

https://de.aliexpress.com/item/4000089843445.html?spm=a2g0o.productlist.0.0.132f74525YVPaw&algo_pvid=9a27a40c-1e1b-4901-a560-1c8592382b41&algo_expid=9a27a40c-1e1b-4901-a560-1c8592382b41-13&btsid=a4c83d72-c6c3-42b7-b8ce-3710d427edad&ws_ab_test=searchweb0_0,searchweb201602_2,searchweb201603_53

i have use the brass brush

The second Z hight you musst adjust to your printer

the gcode is:

G0 Z15; Start brush nozzle

G0 X345 Y70. F6000;

G0 Z6.0; Adjust the nozzle height - This will be different depending on the height of your bed.

G92 E0 ; zero the extruded length

G1 E10 F1500 ; Extrude 10mm of filament

G92 E0 ; zero the extruded length

G0 Y5

G0 X342

G0 Y70

G0 X350 F6000

G0 Y30

G0 X333

G0 Y35

G0 X350

G0 Y40

G0 X333

G0 Y45

G0 X350

G0 Y50

G0 X333

G0 Y150

G0 Z0.2; End brush nozzle

you musst add it to your startcode

let me know wenn the holder also work for other tronxy corexy printers
